D0-06DR AutomationDirect Analog output module

Description

D0-06DR AutomationDirect Analog output module

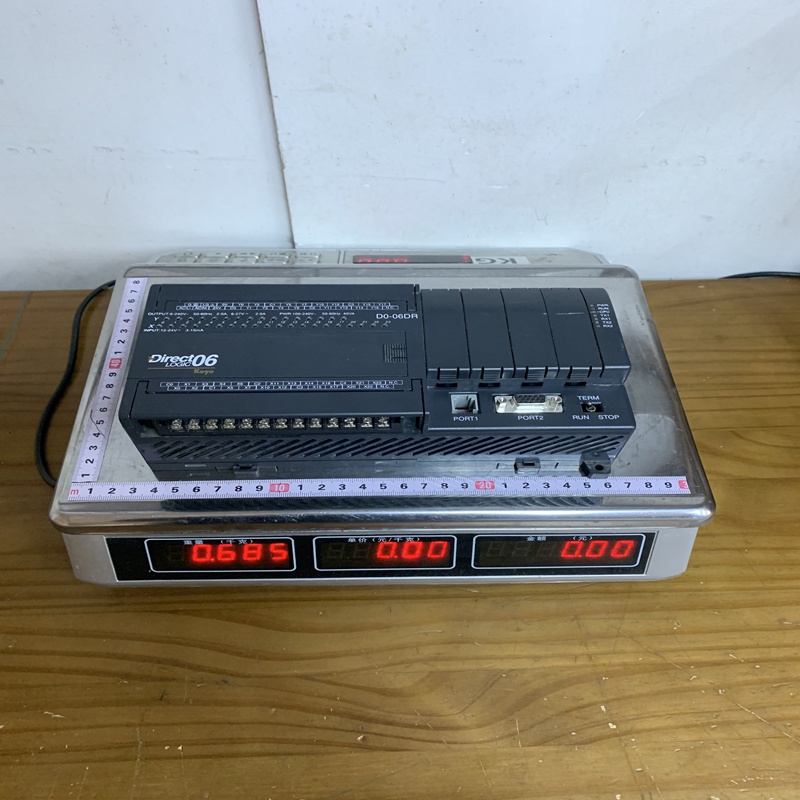

Product Dimensions：

Product Description

The D0-06DR is an “All-in-One” Programmable Logic Controller (PLC) that combines a CPU, power supply, and I/O in a single chassis. It features 20 inputs and 16 outputs, totaling 36 local I/O points. A standout feature of the DL06 series is its expansion capability: it includes two option module slots that allow for additional I/O (analog, high-speed, or communications) without increasing the physical footprint significantly.

Product  Parameters

Product Advantages

• High I/O Density: Offers 36 I/O points in a compact brick design, which is significantly more than most micro PLCs in its class.

• Excellent Value: Known for its low cost per I/O point, making it the “best bang for the buck” for small machine control.

• Expansion Flexibility: The two option slots allow you to add analog I/O, thermocouples, or even an Ethernet port (ECOM module) very easily.

• Dual Communication Ports: Port 1 is for programming/HMI, while Port 2 is customizable for Modbus RTU or ASCII, allowing for easy connection to multiple devices.

• Reliable Relay Outputs: The built-in 7A relays are robust enough to drive many small loads directly without needing external interposing relays.

Safety and Maintenance

• Relay Life Cycle: While the 7A relays are powerful, they have a mechanical life limit. For high-frequency switching applications, consider using a transistor output model (D0-06DD) instead.

• Battery Backup: The internal memory is backed by a super-capacitor, but for long-term power-down storage (over 30 days), an optional D0-MC-BAT battery is highly recommended.

• Terminal Wiring: Ensure that the 100–240V AC power is connected only to the designated power terminals. Connecting AC power to the 24V DC sensor supply or DC inputs will destroy the unit.

• Firmware: Ensure you use the latest version of DirectSOFT programming software for full compatibility with all expansion modules.

Typical Applications

• Small Packaging Machines: Controlling conveyors, heat sealers, and counting sensors.

• Pumping Stations: Managing water levels, pump sequencing, and alarm notifications.

• HVAC Control: Regulating fans, dampers, and temperature sensors (via analog expansion).

• Material Handling: Small-scale sorting, lifting, and motorized gate control.

• Education and Prototyping: A favorite for student labs and R&D due to its straightforward programming and low cost.
