DC2500-CE-0A0R-200-00000-00-0 Honeywell Universal Digital Controller

Description

DC2500-CE-0A0R-200-00000-00-0

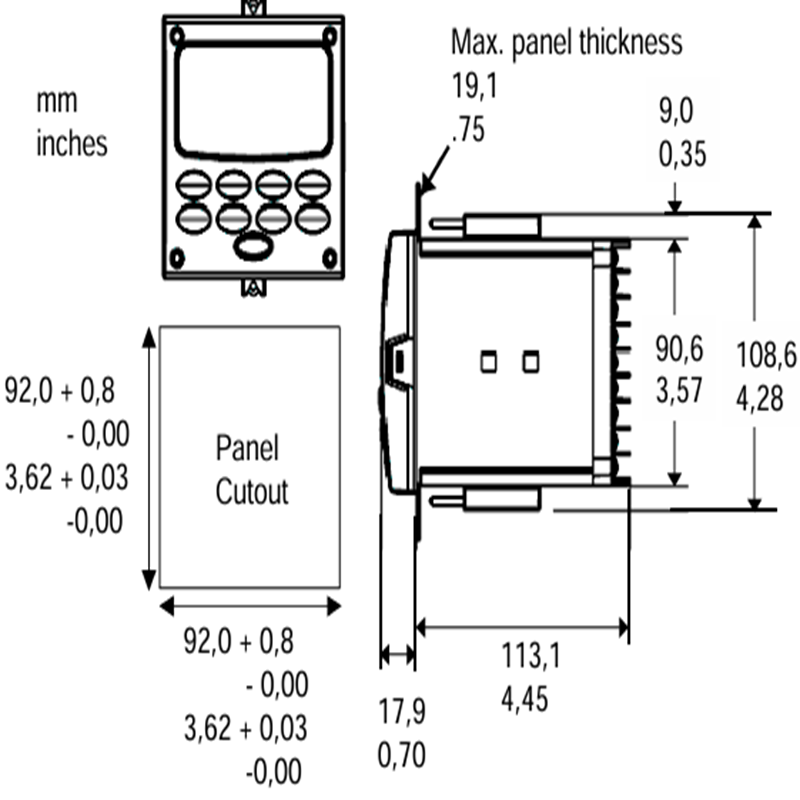

Product Dimensions：

Product Description

The Honeywell DC2500-CE-0A0R-200-00000-00-0 is a highly versatile and reliable Universal Digital Controller (UDC2500). It’s a microprocessor-based device designed to monitor and precisely control various process variables like temperature, pressure, flow, and level. Its compact 1/4 DIN size makes it an ideal solution for applications where panel space is a concern. The UDC2500 series is well-regarded for its cost-effectiveness, simplicity, and robust performance in demanding industrial environments.

Product Parameters

• Model Name: UDC2500
• Part Number: DC2500-CE-0A0R-200-00000-00-0
• Controller Type: Universal Digital Controller
• Size: 1/4 DIN (96mm x 96mm)
• Power Supply: 90-264 VAC, 50/60 Hz
• Input: Universal input that supports thermocouples (TC), Resistance Temperature Detectors (RTD), millivolt (mV), voltage (V), and current (mA) signals.
• Output: 1 Relay Output
• Display: Dual 4-digit LED display for simultaneous viewing of process variable and setpoint.
• Protection: NEMA 4X and IP66 front face protection, making it suitable for wash-down applications.
• Communication: This specific part number does not include communication options like Modbus or Ethernet.

Product Advantages

• Universal Input: The controller’s universal input is a significant benefit, as it can accept signals from a wide range of sensor types without requiring hardware changes or jumpers. This simplifies inventory management and enhances flexibility.
• High Accuracy: With an accuracy of 0.25%, the UDC2500 provides precise control, which is essential for maintaining product quality and process efficiency.
• Ease of Use: The intuitive design and simple human-machine interface (HMI) make it easy for operators to configure, use, and maintain the controller.
• Durability: The NEMA 4X and IP66 ratings ensure the controller is protected against dust and water jets, making it suitable for harsh and wash-down environments in industries like food and beverage.
• Advanced Control Algorithms: The UDC2500 features advanced control algorithms, including PID (Proportional-Integral-Derivative) and on-off control, allowing for optimal performance in a variety of applications.

Precautions

• Electrostatic Discharge (ESD): Always handle the controller with proper ESD precautions to prevent damage to its sensitive electronic components.
• Power Supply: Ensure the power supply is stable and within the specified 90-264 VAC range. Incorrect voltage can damage the unit.
• Wiring: Follow the wiring diagrams and instructions in the official product manual carefully to ensure correct and safe installation.
• Configuration: The controller’s universal input and control algorithms must be properly configured via the front panel or configuration tools to match the specific application and connected sensor.
• Discontinued Status: It’s important to note that the UDC2500 series may be discontinued by the manufacturer. While still available from various distributors, it’s wise to consider newer models for new installations or to verify long-term product support.

Product Applications

The Honeywell DC2500 is a versatile controller used across a broad range of industries for regulating critical process variables. Its applications include:

• Furnaces and Ovens: Precise temperature control in heat-treating and curing processes.
• Environmental Chambers: Maintaining stable temperature and humidity for testing and storage.
• Packaging Machinery: Controlling heat sealing temperatures for consistent and reliable packaging.
• Plastics Processing: Regulating temperature in extruders, injection molding machines, and other plastic-forming equipment.
• Food and Beverage: Temperature and pressure control in pasteurization, cooking, and sanitation processes.
