The Honeywell UDC3500 (Universal Digital Controller) is a powerful and versatile single-loop controller. This specific model, with the part number DC3500-E0-3000-211-00000-00-0, is designed for precise and reliable control of various process variables like temperature, pressure, and flow. As a 1/4 DIN controller, it is a great choice for applications where panel space is limited. The UDC3500 series is well-regarded for its robust performance, extensive features, and user-friendly operation.
Product Parameters
- Model Name: UDC3500 (Universal Digital Controller)
- Part Number: DC3500-E0-3000-211-00000-00-0
- Controller Type: Single-loop controller

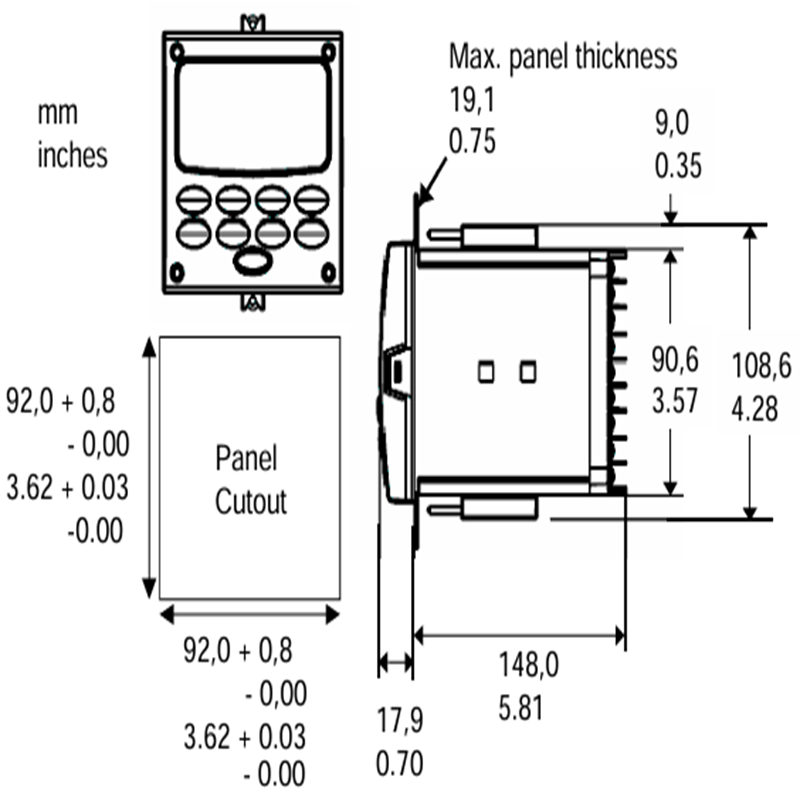

- Size: 1/4 DIN (96mm x 96mm)
- Power Supply: 90-250 VAC, 50/60 Hz
- Inputs: Supports three universal inputs, which can be configured for thermocouples, RTDs, millivolt, voltage, or current signals.
- Outputs:
- Output 1: Current output (e.g., 4-20 mA).
- Outputs 3-5: Three 5-Amp Form C electromechanical relays.
- Display: Dual 4-digit LED display for simultaneous viewing of process variables and setpoints.
- Communication: Includes 10 Base-T Ethernet with Modbus RTU, allowing for seamless integration with other systems. It also has four digital inputs.
- Approvals: CE approval.
Product Advantages
- Advanced Features: This controller offers advanced features like auto-tune and fuzzy logic to ensure precise and stable control, even in challenging processes.
- Universal Inputs: The ability to accept a wide range of input signals from thermocouples, RTDs, and various voltage/current sources makes it highly flexible and reduces the need for specialized controllers.
- Multiple Outputs: With both a current output and multiple relay outputs, this model can control a variety of final control elements such as valves, heaters, and pumps.
- Connectivity: The built-in Ethernet with Modbus RTU communication is a major advantage, allowing for easy remote monitoring, configuration, and data logging.
- High Reliability: As part of the Honeywell UDC series, this controller is built to be durable and reliable, with a standard 18-month warranty, providing peace of mind for continuous industrial operations.
Precautions
- Power and Wiring: Always verify that the power supply is within the specified 90-250 VAC range. Follow the official wiring diagrams carefully to prevent damage to the unit or other equipment.
- ESD Handling: Take proper electrostatic discharge (ESD) precautions when handling the controller to protect its sensitive electronic components.
- Firmware and Configuration: Ensure the controller’s firmware and software configurations are correctly set up for your specific application. Incorrect settings can lead to poor control or safety issues.
- Professional Installation: Due to its advanced features and industrial nature, installation and configuration should be performed by qualified personnel.
Product Applications
The Honeywell UDC3500 is an extremely versatile controller, making it suitable for a wide range of industrial applications, including:
- Heat Treatment: Controlling the temperature of industrial furnaces and ovens for metal processing.
- Plastics and Rubber: Regulating temperature in plastic extruders, injection molding machines, and rubber curing presses.
- Food and Beverage: Managing pasteurization, cooking, and fermentation processes to ensure product quality and safety.
- Pharmaceuticals: Precise control of temperature and other variables in various drug manufacturing processes.
- Environmental Chambers: Maintaining stable conditions for product testing and research.
