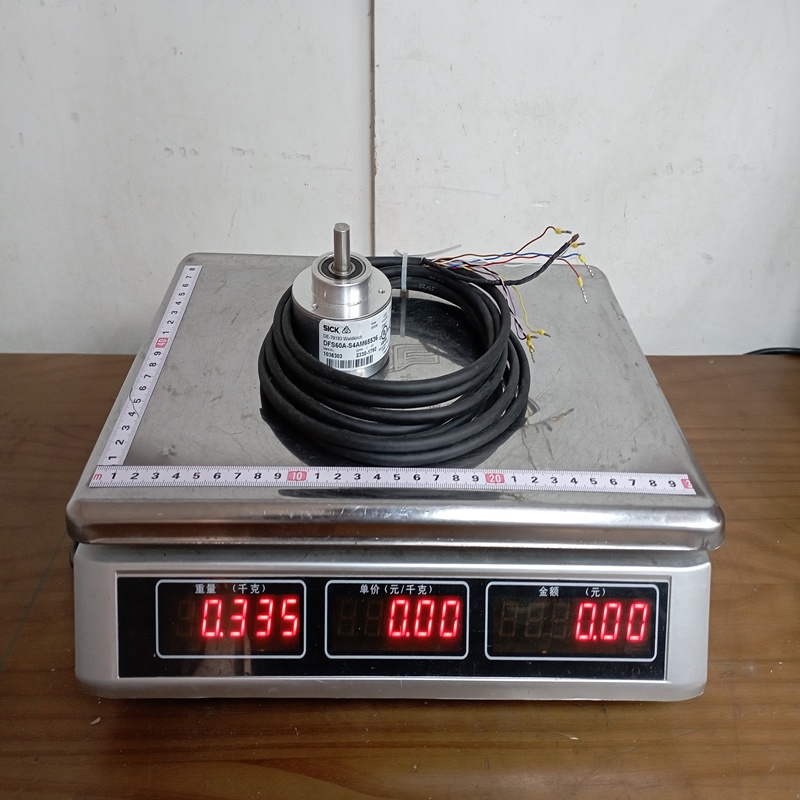

Price: Please contact us         Product weight：0.335kg

Get a Quote
Category: Brand:

Description

DFS60A-S4AM65536 SICK Controller module

Product Dimensions：

Product Description

The SICK DFS60A-S4AM65536 (Part No: 1037586) is a high-resolution, programmable incremental encoder from the DFS60 family. This specific model is designed for high-precision motion control and is capable of providing up to 65,536 pulses per revolution (PPR).

Product Parameters

Feature Specification
Encoder Type Incremental
Resolution 65,536 PPR (16-bit)
Mechanical Design Solid shaft, face mount flange
Shaft Diameter 10 mm x 19 mm
Communication Interface TTL / HTL (Programmable)
Connection Type Male connector, M23, 12-pin, radial
Supply Voltage 4.5 V to 32 V DC
Max. Operating Speed 9,000 RPM
Enclosure Rating IP67 (Housing), IP65 (Shaft)
Operating Temp. –40 °C to +100 °C
Output Frequency ≤ 820 kHz

Key Product Advantages

  • High Resolution: With 65,536 pulses per revolution, it offers extreme precision for positioning and speed control tasks.

  • Fully Programmable: Users can configure the resolution, zero pulse position, and output level (TTL/HTL) using SICK’s programming tools (e.g., PGT-08-S), reducing inventory by allowing one part to serve multiple roles.

  • Rugged Construction: Features a die-cast aluminum housing and a stainless steel shaft, making it highly resistant to shock (100 g) and vibration (30 g).

  • Wide Voltage Range: Operates safely anywhere between 4.5 V and 32 V, making it compatible with various PLC and controller environments.

  • Long Service Life: Equipped with wide-set ball bearings that ensure a high level of mechanical stability and durability.

Product Applications

This encoder is suitable for sophisticated industrial environments, including:

  • Robotics: High-precision feedback for arm movement and rotational joints.

  • CNC Machining: Accurate tracking of spindle speeds and axis positioning.

  • Packaging & Printing: Synchronization of high-speed rollers and material feeding systems.

  • Textile Machinery: Managing complex thread tensioning and patterns.

  • Logistics & AGVs: Speed and direction monitoring for automated guided vehicles.

Important Usage Notes (Precautions)

  • Shaft Loading: Avoid exceeding the maximum permissible shaft load (80 N radial, 40 N axial). Using a flexible coupling is highly recommended to prevent premature bearing failure.

  • Electrical Protection: The outputs are short-circuit protected, but only for a maximum of 30 seconds. Ensure correct wiring before powering up.

  • Programming: If you intend to reprogram the PPR or output level, you will need the PGT-08-S or PGT-10-Pro programming tool.

  • Condensation: While the unit is IP67 rated, ensure that the optical scanning area is kept free of condensation to maintain signal integrity.
