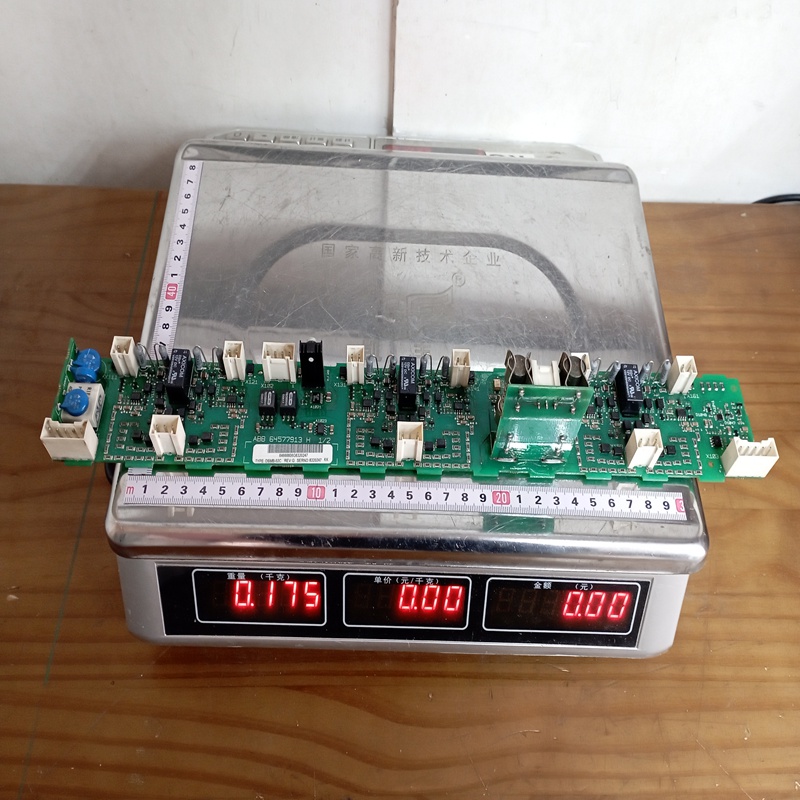

DSMB-02C ABB Analog output module - Image 2
DSMB-02C ABB Analog output module - Image 3

DSMB-02C ABB Analog output module ABB

Brand： ABB

Model number： DSMB-02C

Colour：new                                    Warranty: 12 months

Lead Time：3-day working day   Country of origin: USA

Price: Please contact us         Product weight：0.175kg

Get a Quote
Category: Brand:

Description

DSMB-02C ABB Analog output module

Product Dimensions：

Product Description

The DSMB-02C is the central processing and control unit of the ABB drive or a modular Distributed Control System (DCS) component. Its primary role is to execute the drive’s control firmware and manage all internal and external communications and I/O tasks.

  1. Core Function: It houses a high-performance processor and memory to perform complex motor control algorithms, such as Direct Torque Control (DTC) or Vector Control, ensuring efficient and precise motor operation.

  2. I/O and Interface: The board manages the interface with the drive’s power section and external control systems. It includes interfaces for digital and analog I/O, allowing the drive to connect to external sensors, switches, and PLCs.

  3. Communication Hub: It is equipped with industrial communication interfaces (e.g., Ethernet, RS-485) to integrate the drive into a larger factory network or SCADA system.

  4. Application Environment: The board is engineered to operate reliably in the harsh, electrically noisy environment of an industrial power electronics system.

Product Specifications

Specifications are often tied to the drive model, but general characteristics of the DSMB-02C include:

Parameter Specification
Type Control Board / Main Board
Associated Product Family ABB ACS800 Drive Series (often MD DSU frame sizes)
Processor High-performance industrial microprocessor
Power Supply (Operating) Typically $220V_{AC}$ (Range $90V_{AC}$ to $264V_{AC}$)
Power Consumption Up to $20W$
Memory Capacity e.g., $16KB$ RAM, $32KB$ ROM (Variable based on revision)
Communication Interfaces RS-485, Ethernet (Modbus TCP/IP or similar protocols)
Operating Temperature $-10^\circ C$ to $+50^\circ C$
Hazardous Location Rating Often Class 1 Division 2 certified
Physical Form Circuit board format, dimensions vary (e.g., $38.4 \times 5.4 \times 5.5 \text{ cm}$)

Product Advantages

  • Motor Control Performance: Enables advanced motor control techniques (like DTC), delivering superior torque accuracy, dynamic speed response, and energy efficiency.

  • System Integration: Supports standard industrial communication protocols, allowing for seamless remote monitoring, control, and data logging within a centralized Distributed Control System (DCS).

  • Hazardous Location Suitability: Often features Class 1 Division 2 certification, making it suitable for deployment in potentially hazardous industrial environments.

  • High Reliability: Built to withstand the temperature variations and electrical noise inherent in high-power drive applications, ensuring long-term operational stability.

  • Diagnostic Capability: Provides extensive diagnostic information and status updates on drive health, faults, and performance parameters, simplifying maintenance.

Precautions

  • Electrostatic Discharge (ESD): The DSMB-02C is a sensitive electronic board. It must only be handled while following strict ESD precautions (e.g., wearing a grounding wrist strap) to prevent damage.

  • Power Down: Always ensure the drive is completely de-energized, and the DC link capacitors are discharged before attempting to install, remove, or service the control board.

  • Firmware Compatibility: If the board is being replaced, the firmware version and parameter settings must be compatible with the specific drive unit and application. Incorrect settings can lead to motor damage or unsafe operation.

  • Connection Integrity: Ensure all ribbon cables and connectors are seated firmly and correctly, as poor connections can cause intermittent faults or communication errors.

  • Cooling: Ensure the drive’s cooling system (fans, heatsinks) operates correctly, as overheating can shorten the lifespan of the control board’s components.

Product Applications

The DSMB-02C is primarily used in high-performance variable speed drive applications:

  • Variable Speed Drives (VSDs): Serves as the brain for the ABB ACS800 series drives, controlling the speed and torque of AC induction and permanent magnet motors.

  • Pumps, Fans, and Compressors: Used in HVAC, water treatment, and industrial processes to optimize energy consumption by precisely matching motor speed to fluid requirements.

  • Conveyors and Material Handling: Providing accurate speed control and rapid response for large industrial conveyor systems, cranes, and hoists.

  • Extruders and Mills: Used in heavy-duty applications like plastic processing, cement, and mining, where high starting torque and precise speed regulation are crucial.

  • Industrial Automation Systems: Integrated as a control element that reports status and receives commands from a higher-level PLC or DCS.
