EDS-P206A-4POE MOXA Controller module

Description

EDS-P206A-4POE MOXA Controller module

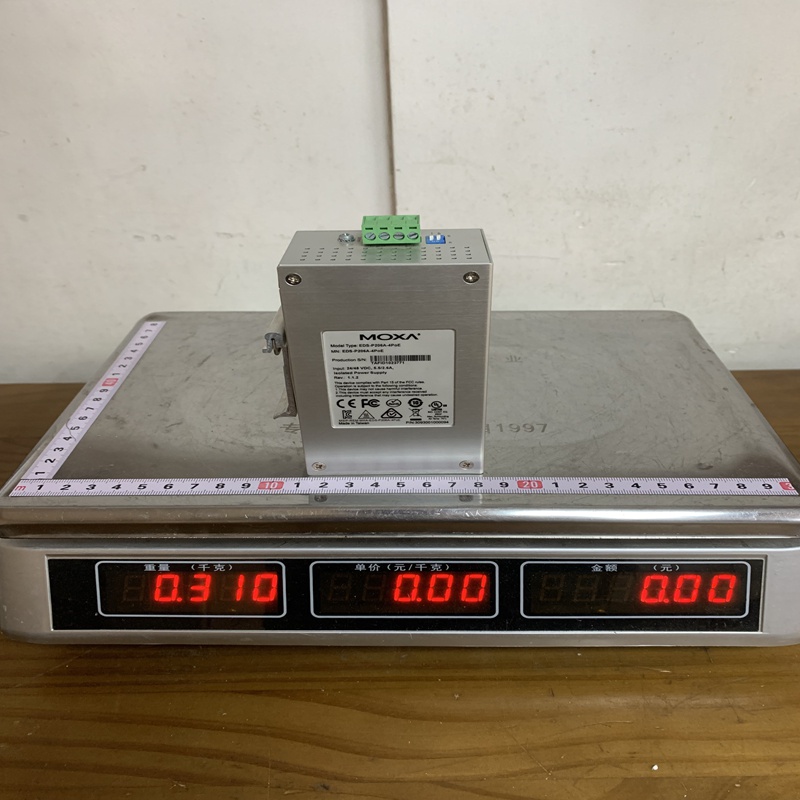

Product Dimensions：

Product Description

The EDS-P206A-4PoE is a 6-port industrial Ethernet switch equipped with 4 IEEE 802.3af/at compliant PoE ports. It acts as Power Sourcing Equipment (PSE), allowing it to power connected devices such as IP cameras, wireless access points, and IP phones. Housed in a rugged metal enclosure, it is designed to operate reliably in harsh conditions where electrical interference and extreme temperatures are common.

Product Parameters

• Total Ports: 6

• PoE Ports: 4 x 10/100BaseT(X) ports, 802.3af/at compliant

• Standard Ports: 2 x 10/100BaseT(X) ports

• PoE Output Power: Up to 30 watts per PoE port

• Input Voltage: 24/48 VDC redundant dual inputs

• Housing: IP30 protection, metal case

• Operating Temperature: * Standard models: -10 to 60°C

  • Wide-temp models (-T): -40 to 75°C

• Mounting: DIN-rail mounting or wall mounting (with optional kit)

• Certifications: CE, FCC, UL 508, and Class I Division 2 (hazardous locations)

Product Advantages

• Simplified Cabling: By integrating PoE technology, the switch eliminates the need for additional power outlets and AC/DC adapters at remote locations.

• High Power Delivery: Support for IEEE 802.3at (PoE+) allows the switch to power power-hungry devices like PTZ cameras and high-performance sensors.

• Industrial Grade Reliability: Features redundant power inputs and high-level EMI/EMC shielding to ensure continuous operation in electrically “noisy” environments.

• Smart PoE Management: Includes functions like “PoE Power Budget Management” and “PoE Failure Recovery” to protect the system from overloading.

• Compact Design: The slim form factor is ideal for installation in space-constrained control cabinets.

Important Considerations and Safety

• Power Budgeting: Ensure the total power consumption of all connected PoE devices does not exceed the switch’s total power budget (determined by your input voltage).

• Heat Dissipation: While designed for industrial use, ensure proper ventilation within the enclosure, especially when operating all four PoE ports at maximum capacity.

• Grounding: The switch must be properly grounded to the DIN rail or via the grounding screw to prevent damage from electrostatic discharge (ESD) or surges.

• Polarity: Always verify the polarity of the DC power inputs before energizing the device to avoid circuit damage.

Product Applications

The EDS-P206A-4PoE is widely used in sectors requiring decentralized power and data:

• Security & Surveillance: Powering and connecting IP-based security cameras in outdoor or industrial perimeters.

• Intelligent Transportation (ITS): Connecting roadside sensors, electronic signage, and traffic monitoring cameras.

• Factory Automation: Linking PoE-enabled sensors and human-machine interfaces (HMI) on the factory floor.

• Smart Cities: Facilitating wireless mesh networks by powering outdoor wireless access points.
