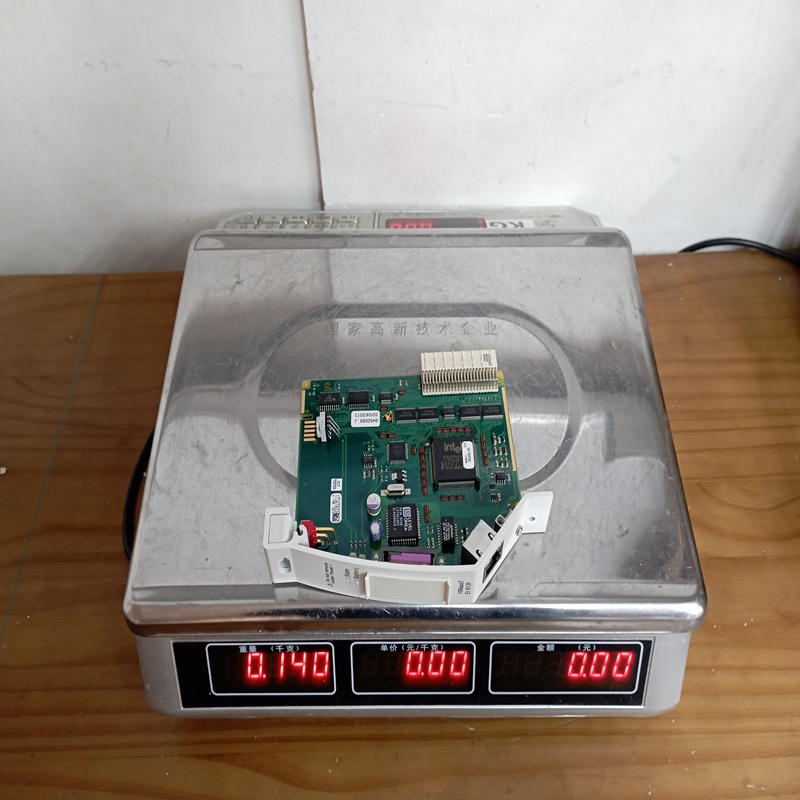

EI813F ABB Central control module

Description

EI813F ABB Central control module

Product Dimensions：

Product Description

The ABB EI813F module is an Electrical Interface Module designed to bridge the electrical signal backbone (the TB810/TB811 S800 I/O cluster bus) with a fiber optic communication link. It is a key component for Fieldbus Communication and is specifically used with the AC800F Controller and the S800 I/O System.

The EI813F provides a redundant or non-redundant electrical interface for the S800 I/O modules and converts the internal bus signal to a protocol suitable for fiber optic transmission (via a separate modem or converter) to achieve long-distance communication and superior noise immunity.

• Function: Serves as the gateway for the S800 I/O modules to communicate with the Fieldbus Controller (like the AC800F).

• System Role: It sits at the beginning of the S800 I/O cluster, managing the I/O bus signals and providing system synchronization.

• Redundancy: It supports the implementation of redundant I/O communication paths to enhance system reliability.

Product Parameters

Product Advantages

• Noise Immunity: By utilizing a fiber optic link (via converters), it provides excellent immunity to electromagnetic interference (EMI/RFI), making it ideal for electrically noisy industrial environments.

• Long-Distance Communication: Enables the S800 I/O cluster to be located far away from the main controller without sacrificing data integrity or speed.

• Scalability and Modularity: It is a core component of the highly modular S800 I/O system, allowing easy expansion and customization of I/O points.

• High Reliability: The module supports redundant configurations, ensuring that a single failure in the communication path does not lead to process downtime.

Precautions

• Fieldbus Requirement: The EI813F does not directly connect to a standard fiber optic cable. It interfaces with an electrical Fieldbus (e.g., Profibus) signal which is then converted to fiber optic via a separate modem or repeater for long runs.

• Termination Unit: It must be mounted on a compatible Termination Unit (TB810 or TB811) which handles the connection to the system power and the S800 I/O bus.

• Bus Length Limits: Although it extends communication, the maximum permissible distance is governed by the Fieldbus protocol (e.g., Profibus) and the specifications of the fiber optic converter used.

• Installation: Ensure the module is firmly clipped onto the termination unit, and all power connections comply with the system’s 24V DC specifications.

Product Applications

The EI813F is a standard component in systems using the ABB AC800F controller with distributed S800 I/O:

• Distributed Control Systems (DCS): Used to distribute I/O clusters across large plant areas (e.g., petrochemicals, power plants).

• Remote I/O Stations: Implementing remote I/O cabinets in field locations that are far from the main control room.

• Hazardous Environments: Employed where superior noise immunity is mandatory due to high levels of electrical interference or when intrinsically safe I/O is required.

• Infrastructure: Used in water, wastewater, and oil & gas pipeline applications where long-distance communication to remote pump stations is needed.
