F880-CR-PS-D MTL Power module

Description

F880-CR-PS-D MTL Power module

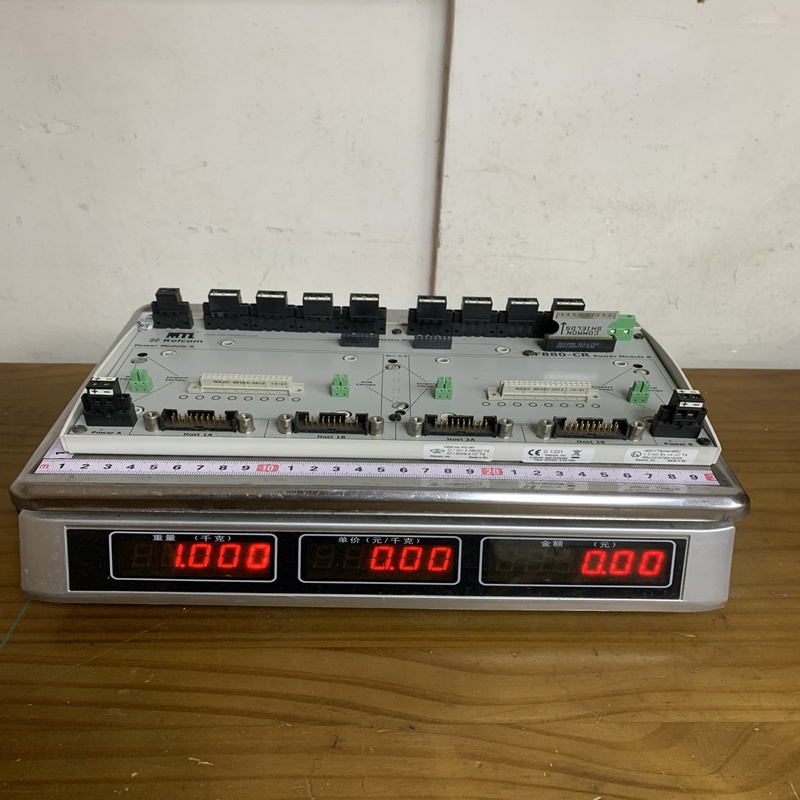

Product Dimensions：

Product Description

The F880-CR-PS-D is a “Right-Hand” (CR) carrier system designed to provide redundant power for eight (8) FOUNDATION™ fieldbus H1 segments. It acts as a bridge between the host control system (Yokogawa ALF111 cards) and the field devices.

• System Architecture: It utilizes two F80x (F801 or F802) power modules in a 1+1 redundant configuration to ensure that the fieldbus segments remain powered even if one module fails.

• Design Specifics: The “CR” stands for Right-Hand Carrier, which allows for symmetrical wiring in large cabinets when paired with a “CL” (Left-Hand) carrier.

Product Parameters

Product Advantages

• High Reliability: The carrier itself contains no active electronic components (“Zero Component Carrier”), maximizing Mean Time Between Failures (MTBF).

• Hot-Swappable: Power modules can be replaced under power without interrupting communication or fieldbus segment power.

• Galvanic Isolation: Full isolation between the power supply and segments, and between segments themselves, prevents ground fault “crosstalk.”

• Space Saving: High-density design provides 8 segments of power in a compact footprint, significantly reducing cabinet space requirements.

• On-line Diagnostics: Compatible with the F809F-Plus diagnostic module for real-time monitoring of the physical layer health.

Product Application

The F880 series is engineered for mission-critical industrial automation environments:

• Host System Integration: Specifically for Yokogawa CENTUM systems using ALF111 fieldbus cards.

• Connectivity: Uses AKB336 cables for direct connection to the host.

• Industry Use: Widely used in Oil & Gas, Chemical processing, and Power Generation where FOUNDATION™ fieldbus H1 instrumentation is standard.

Important Notes & Precautions

• Mounting Orientation: The specified temperature range and cooling efficiency apply only when the unit is mounted on a vertical DIN rail.

• Environment: Ensure the unit is installed in a clean, dry environment or within an appropriately rated enclosure (IP54 or better) if used in dusty or humid areas.

• Module Matching: For redundancy to function correctly, both power modules must be of the same type (e.g., two F801s).

• Hazardous Areas: While designed for industrial use, ensure compliance with local regulations (ATEX/IECEx/Class I Div 2) when installing in potentially explosive atmospheres.
