FC-TSHART-1620M HONEYWELL HART Input Interface Module

Description

FC-TSHART-1620M HONEYWELL HART Input Interface Module

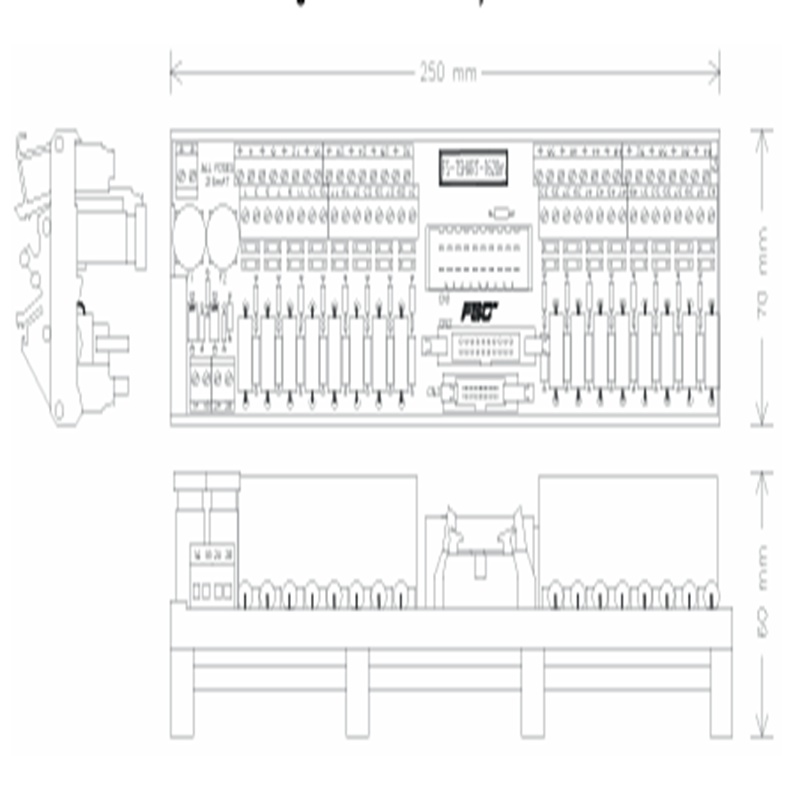

Product Dimensions：

Product Description

The Honeywell FC-TSHART-1620M is an Analog Input Field Termination Assembly (FTA) module. It acts as an interface between field devices (like sensors and transmitters) and the high-density analog input module, SAI-1620M, within the Honeywell Safety Manager system. This module is essential for applications that require a robust and reliable connection for analog signals, especially those needing a HART interface.

Product Specifications

• Product Type: Analog Input Field Termination Assembly (FTA)
• Channels: 16 analog input channels, which can be used for both safety-related and non-safety-related applications.
• Communication Interface: HART interface for signal conversion and communication with intelligent field devices.
• Signal Type: Converts 0-20 mA or 4-20 mA DC field signals to a level compatible with the SAI-1620M module.
• Supply Voltage: 30V DC
• Output Supply: 4V DC
• Compliance: Rated for use in Class I, Division 2 hazardous locations, ensuring safe operation in potentially explosive environments.
• Connection: Features screw terminals for power, ground, and field wiring connections, and connects to the SAI-1620M module via a system interconnection cable.
• Mounting: Designed with a universal snap-in provision for standard DIN EN rails.

Product Advantages

The FC-TSHART-1620M offers several key advantages for industrial automation and safety systems:

• High Reliability: Built to ensure stable and continuous operation, it’s a critical component in safety-instrumented systems.
• HART Interface: The integrated HART interface allows for digital communication with HART-enabled field devices, enabling enhanced diagnostics and configuration without interrupting the analog signal.
• Hazardous Location Rating: Its Class I, Division 2 rating makes it a safe and compliant choice for use in areas where flammable gases or vapors may be present.
• High-Density Design: With 16 channels, the module provides a compact solution for connecting multiple field instruments, saving cabinet space and simplifying wiring.
• Simplified Integration: As a dedicated interface module, it simplifies the connection of field components to the Safety Manager system, reducing engineering complexity and setup time.

Important Considerations (Cautions)

• System Specificity: The FC-TSHART-1620M is a specific component for the Honeywell Safety Manager system and is designed to work exclusively with the SAI-1620M module. It’s not a standalone device.
• Documentation: Always consult the official Honeywell hardware reference and user manuals for detailed wiring diagrams, installation instructions, and safety guidelines to ensure correct and safe operation.
• Environmental Ratings: While rated for hazardous locations, ensure the module’s operating environment and power supply meet all specified voltage, current, and temperature ratings.

Product Applications

The Honeywell FC-TSHART-1620M is primarily used in industries that rely on a robust and certified safety system. Its applications include:

• Process Control: In industries like oil and gas, petrochemical, and chemical manufacturing, it’s used to interface with a wide range of analog sensors (e.g., pressure, temperature, flow) for both process monitoring and safety shutdowns.
• Power Generation: Used in power plants to monitor critical analog signals from turbines, boilers, and other equipment to ensure safe operation.
• Pulp and Paper: Monitoring and controlling analog variables in various stages of the manufacturing process.
• Water and Wastewater Treatment: Interfacing with sensors to manage levels, flow rates, and chemical dosages to maintain safe and efficient operations.
