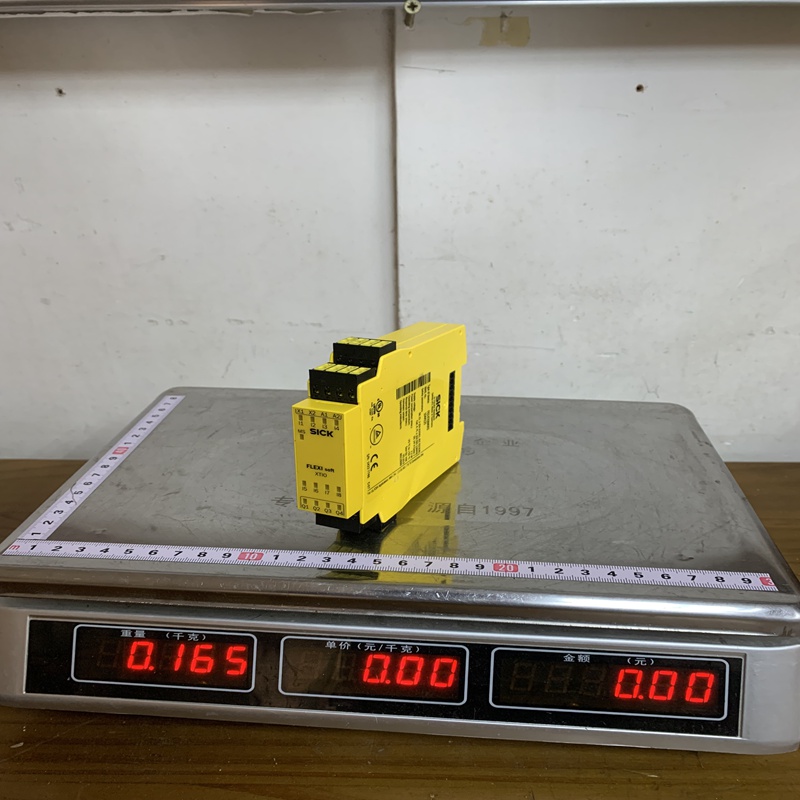

Price: Please contact us         Product weight：0.165kg

Get a Quote
Category: Brand:

Description

FX3-XTI084002 SICK Power module

Product Dimensions：

Product Description

The SICK FX3-XTIO84002 (Part No: 1044125) is a high-performance I/O expansion module designed for the Flexi Soft modular safety controller system. It allows for scalable safety logic by adding more inputs and outputs to a main CPU unit.

Product Parameters

Feature Specification
Safety Integrity Level SIL3 (IEC 61508)
Performance Level PL e (EN ISO 13849)
Safety Inputs 8 (single-channel)
Safety Outputs 4 (PNP semiconductors, short-circuit protected)
Test Outputs 2 (for sensor monitoring/cascading)
Supply Voltage 24 V DC (16.8 V to 30 V)
Response Time < 19 ms (Fast shut-off: 8 ms)
Power Consumption ≤ 2.2 W (internal logic via FLEXBUS+)
Connection Type Plug-in spring terminals (easy wiring)
Enclosure Rating IP20 (Terminals) / IP40 (Housing)
Dimensions 22.5 mm x 96.5 mm x 120.6 mm

Key Product Advantages

  • Modular Scalability: Easily expands the Flexi Soft system, allowing you to pay only for the I/O you actually need.

  • Rapid Response: Features a Fast Shut-Off function (approx. 8 ms), which is critical for reducing safety distances between operators and hazardous points.

  • Diagnostic Excellence: Integrated test outputs (X1, X2) provide cross-circuit monitoring and allow for cascading of safety sensors.

  • Flexi Loop Integration: Fully compatible with Flexi Loop, allowing for cost-effective series connection of safety switches and sensors with detailed diagnostics.

  • Easy Configuration: Seamlessly integrated into the Flexi Soft Designer software, providing a drag-and-drop environment for safety logic.

Applications

The FX3-XTIO84002 is widely used in industrial automation environments requiring high-level safety:

  • Robotic Cells: Monitoring emergency stops, light curtains, and door interlocks.

  • Packaging Machinery: Coordinating multiple safety zones within a single machine.

  • Material Handling: Safeguarding conveyors and automated guided vehicles (AGVs/AMRs).

  • Machine Tools: Protecting operators from rotating parts or high-pressure systems.

Important Usage Notes (Precautions)

  • Power Supply: Use only PELV or SELV power supplies. The current of the power supply must be limited to a maximum of 4 A (via the supply itself or a fuse).

  • Environment: Ensure the module is installed in a control cabinet with at least IP54 protection if used in dusty or humid environments (as the unit itself is IP20).

  • Wiring: Always use the dedicated spring terminals provided. Do not exceed the maximum output current of 2 A per safe output.

  • Configuration: The module will not function until it is configured via the Flexi Soft Designer software and the configuration is downloaded to the main CPU.
