IC755CSW07CDA GeneralElectric Programmable controller

Description

IC755CSW07CDA GeneralElectric Programmable controller

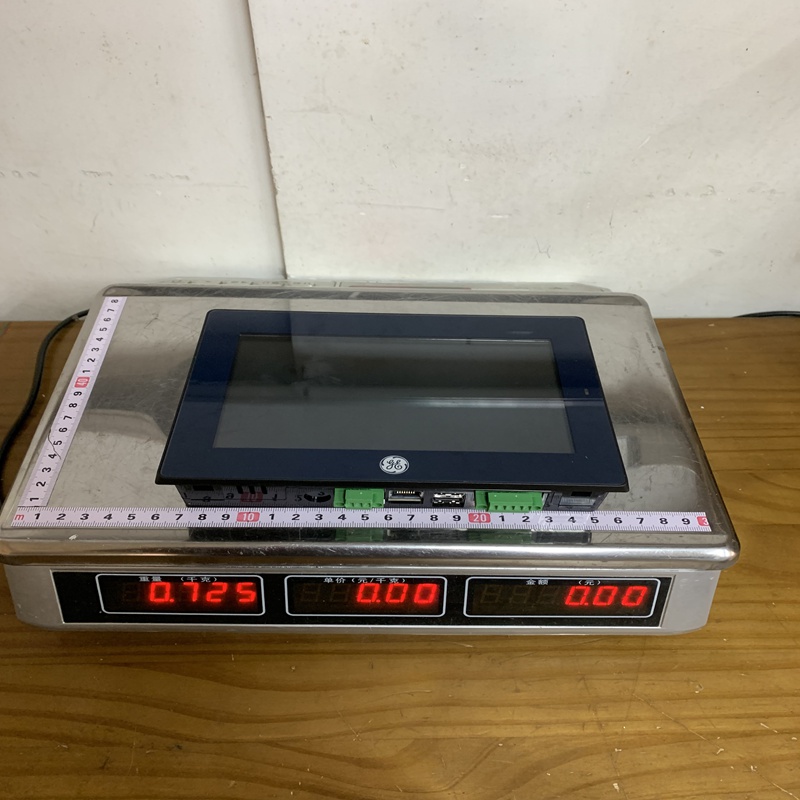

Product Dimensions：

Product Description

The IC755CSW07CDA is part of the QuickPanel+ series. It features a 7-inch widescreen display with multi-touch technology, providing an intuitive user experience similar to consumer tablets but built for rugged environments. This unit is designed to work seamlessly with GE’s (now Emerson) PACSystems controllers and supports a wide variety of third-party communication protocols.

Product Parameters

The technical hardware specifications for the IC755CSW07CDA are as follows:

• Display Size: 7-inch Widescreen (16:9 aspect ratio)

• Resolution: 800 x 480 pixels

• Touchscreen: Projective Capacitive (PCAP) multi-touch

• Processor: 1.0 GHz Freescale i.MX535

• Memory: 512 MB DDR2 RAM and 256 MB SLC NAND Flash

• Operating System: Microsoft Windows Embedded Compact 7

• Communication Ports: * 2 x Ethernet (10/100 Mbps)

  • 1 x RS-232 Serial Port

  • 2 x USB 2.0 (Type A), 1 x Mini-USB (Type B)

  • 1 x SD/SDHC card slot

• Power Input: 24V DC ($\pm$25%)

Product Advantages

• High Performance: The powerful processor ensures fast screen switching and rapid data processing for complex graphics and logic.

• Enhanced Connectivity: With dual Ethernet ports and multiple serial/USB options, it acts as a data bridge between the factory floor and IT systems.

• Rugged Durability: Designed for harsh conditions with an IP65/NEMA 4X front panel rating, making it resistant to dust and water.

• Multi-Touch Capability: Supports gestures like pinching and swiping, which improves operator efficiency and safety during high-stress operations.

• Integrated Control: Can run HMI and PLC logic simultaneously, reducing the need for separate hardware in smaller applications.

Important Considerations

• Environmental Limits: Ensure the operating temperature remains within the specified range (0°C to 55°C) to prevent processor throttling or screen failure.

• Power Supply: Use a regulated 24V DC power source. Voltage spikes or improper grounding can damage the sensitive capacitive touch layer.

• Cleaning: Use a soft, damp cloth with mild detergent. Avoid harsh chemicals or abrasive materials that could scratch the screen or degrade the IP65 seal.

• Backup: Regularly back up project files and data logs to an SD card or external server, as the internal flash memory has a finite number of write cycles.

Product Applications

The IC755CSW07CDA is used across various automated industries, including:

• Manufacturing: Real-time production line monitoring and machine-level control.

• Food and Beverage: Interfacing with packaging machinery and ingredient batching systems.

• Water/Wastewater: Monitoring pump stations, flow rates, and chemical treatment levels.

• Energy Management: Visualizing power distribution data and renewable energy system performance.
