JGSM-12-01 YASKAWA I/O module

Description

JGSM-12-01 YASKAWA I/O module

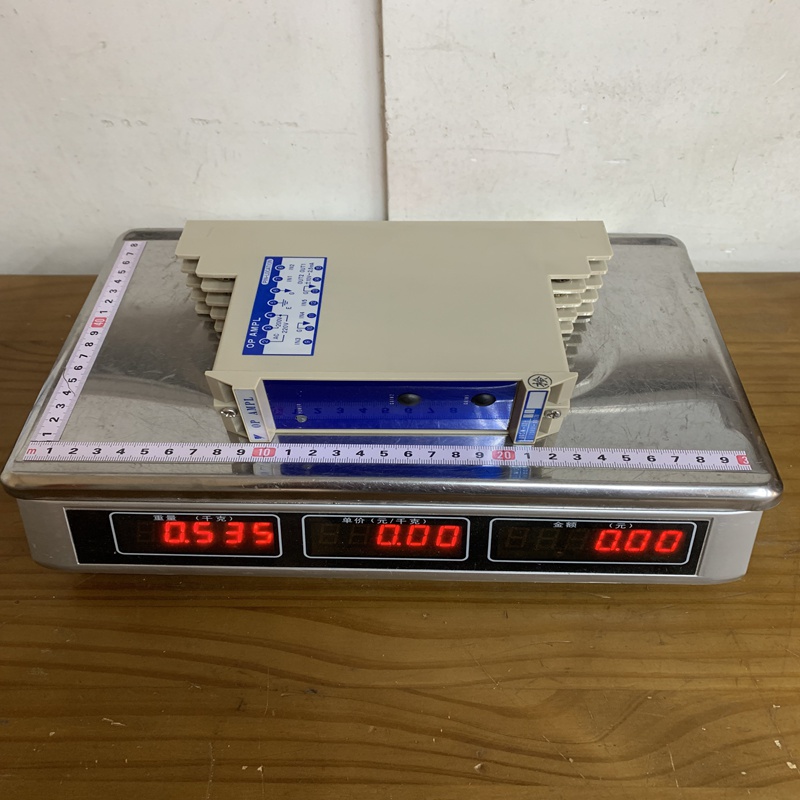

Product Dimensions：

Product Description

The Yaskawa JGSM-12-01 is typically associated with AC Servo Motors and their accompanying systems, such as the Sigma series, which are fundamental components in high-performance industrial automation and motion control applications.

Product Parameters

While the exact datasheet for “JGSM-12-01” as a standalone model number is specific and may require direct reference to Yaskawa’s catalogs (as this nomenclature can indicate a custom configuration or a specific motor type/rating within a series), here are the typical parameters and specifications associated with Yaskawa’s 400V class servo motors used in high-precision motion control systems:

Product Advantages

Yaskawa servo systems are globally recognized for their superior performance and reliability. Key advantages include:

• High Precision and Responsiveness: Extremely high-resolution encoders (e.g., 24-bit) combined with advanced control algorithms deliver exceptionally smooth and accurate motion, essential for applications like chip mounters and high-speed inspection systems.

• Fast Settling Time: The advanced tuning and control features (like automatic tuning and vibration suppression) result in minimal overshoot and very quick settling times, which dramatically increases machine throughput.

• High Power Density: Compact motor design provides high torque output in a smaller physical footprint, saving space on machinery.

• Energy Efficiency: Optimized motor structure and low-loss drives contribute to reduced energy consumption.

• Robust and Reliable: Built for demanding industrial environments with high ingress protection (IP) ratings and long service life.

Precautions

• Proper Grounding: Ensure the motor and drive are correctly grounded according to national and local electrical codes to prevent electrical shock and reduce noise.

• Heat Dissipation: Servo motors generate heat. Ensure adequate ventilation or heat sinking, and operate within the specified ambient temperature range ($0\text{°C}$ to $55\text{°C}$) to maintain performance and lifespan.

• Wiring and Shielding: Use recommended shielded cables for power and encoder lines to minimize electromagnetic interference (EMI) that can affect control stability.

• Parameter Settings: Never change servo drive parameters arbitrarily. Incorrect settings can cause instability, motor damage, or abnormal operation. Use the appropriate configuration software (e.g., SigmaWin) and follow the commissioning guide.

• Emergency Stop: Always install a safety circuit and an emergency stop mechanism independent of the servo control loop.

Product Applications

Yaskawa servo systems are utilized across a vast range of high-performance automation industries:

• Semiconductor Manufacturing: High-speed pick-and-place, wafer handling, and precise positioning stages.

• Machine Tools: High-precision cutting, grinding, and milling machines.

• Packaging Machinery: Form, fill, and seal machines requiring fast and synchronized movements.

• Robotics: Providing the reliable, dynamic joints for industrial robots (a Yaskawa specialty).

• Printing and Converting: High-accuracy web handling, cutting, and registration systems.

• General Factory Automation: Conveying, indexing, and transfer systems requiring dynamic response.
