LD75D4 MITSUBISHI Central control module

Description

LD75D4 MITSUBISHI Central control module

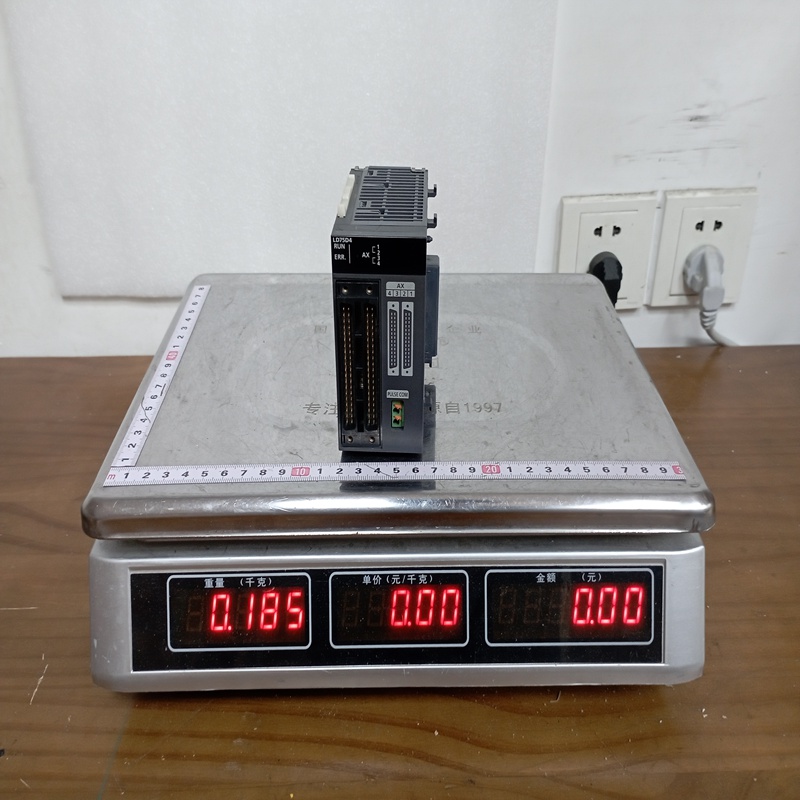

Product Dimensions：

Product Description

The LD75D4 is a differential driver output positioning module. It functions as an intelligent unit for the L-series PLC, enabling precise control of servos or stepper motors by issuing pulse trains. It supports advanced interpolation and various control modes, making it suitable for sophisticated machinery automation.

Product Parameters

Product Advantages

• High-Speed, High-Precision: Supports up to 4 Mpps output, allowing for extremely high-speed positioning tasks while maintaining accuracy.
• Versatile Motion Control: Built-in interpolation functions (linear, circular, and helical) allow for complex path movements without needing heavy programming in the CPU.
• Ease of Integration: Seamlessly integrates with the L-series PLC backplane; parameters and positioning data are easily configured via software.
• Robust Data Storage: Utilizes flash ROM for saving positioning and block start data, eliminating the need for periodic battery replacements.

Product Applications

The LD75D4 is widely used in automated industrial equipment, including:

• Packaging Machines: For precise product feeding, labeling, and rotary cutting.
• Assembly Equipment: Coordinating multi-axis robots or pick-and-place stations.
• Material Handling: Controlling conveyors, loaders, and palletizing systems.
• Machine Tools: Managing auxiliary axes for drilling, milling, or positioning tables.

Precautions

• Lifecycle Management: Because this module is discontinued (EOL), sourcing parts for long-term maintenance will become increasingly difficult. It is strongly advised to plan for migration to the RD75D4 series.
• Wiring/Connectors: The module uses 40-pin connectors (A6CON1, A6CON2, or A6CON4). Ensure you use the correct connector type for your cabling method (soldering vs. crimping).
• Electrical Noise: As a high-speed pulse output device, ensure proper shielding and grounding of your signal cables to prevent electrical noise from causing positioning errors or communication faults.
• Compatibility: If you are integrating this into an existing system, verify your PLC firmware version and the configuration software (e.g., GX Works2/3) support the specific module version.
