MTL4850 EATON Central control module

Description

MTL4850 EATON Central control module

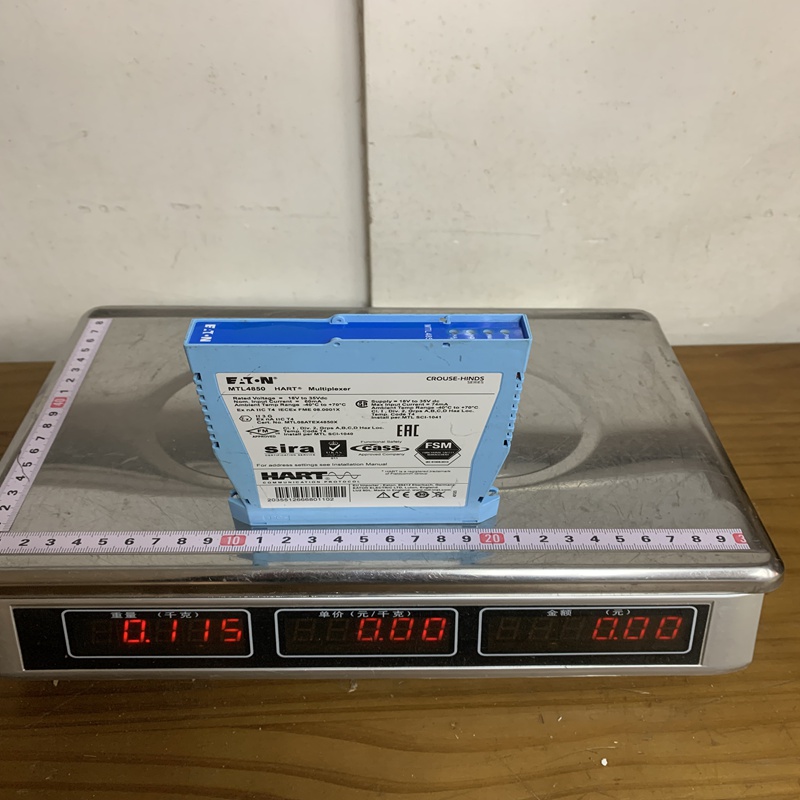

Product Dimensions：

Product Description

The MTL4850 is a “single-brick” solution designed to multiplex up to 32 HART channels. It extracts the digital HART signal from the analog loop and transmits it via an RS485 serial link to a PC or control system.

• Modularity: 32-channel capacity per module.

• Safety Rating: Certified for use in safety-related subsystems up to SIL3 (IEC 61508).

• Interface: Connects to field devices via backplanes or custom connection units.

• HART Support: Compatible with HART revision 5, 6, and 7.

Product Parameters

Product Advantages

• SIL3 Compliance: It is the first choice for safety instrumented functions (SIF) because it is designed not to interfere with the primary 4-20mA safety loop even in the event of a component failure.

• Space Efficient: Its compact “brick” design offers a smaller footprint compared to older master/slave multiplexer architectures, making it ideal for retrofitting existing cabinets.

• Reduced Costs: By multiplexing 32 channels into one RS485 link, it significantly reduces the amount of wiring and hardware required for asset management.

• Plug-and-Play: Features auto-baud rate detection and LED status indicators for power, fault, and communication, simplifying commissioning.

Product Applications

The MTL4850 is primarily used in industries requiring high levels of safety and asset visibility:

• Oil & Gas / Petrochemical: Monitoring smart transmitters and valve positioners in hazardous areas.

• Emergency Shutdown Systems (ESD): Integrating with safety systems (like Triconex or DeltaV) to provide valve diagnostics.

• Power Plants: Online monitoring of pressure, temperature, and flow smart instruments.

• Asset Management: Connecting field devices to software like Emerson AMS, Pactware, or FieldCare for remote calibration.

Important Precautions

• Mounting: The module must be installed on a compatible backplane (e.g., CPH-SC32 or HMP-HM64). Ensure the module is fully seated and secured before powering.

• Hazardous Areas: While the device is used with intrinsically safe loops, the module itself must be installed in a Safe Area or a Zone 2/Div 2 environment within a suitable IP54 enclosure.

• Loop Resistance: Ensure the total loop resistance is at least 250Ω for stable HART communication.

• Polarity: The power supply input is reverse-polarity protected, but always verify wiring to prevent broader system issues.

• Firmware: If integrating into a large network (up to 2016 devices), ensure the RS485 address is correctly set via the interface software.
