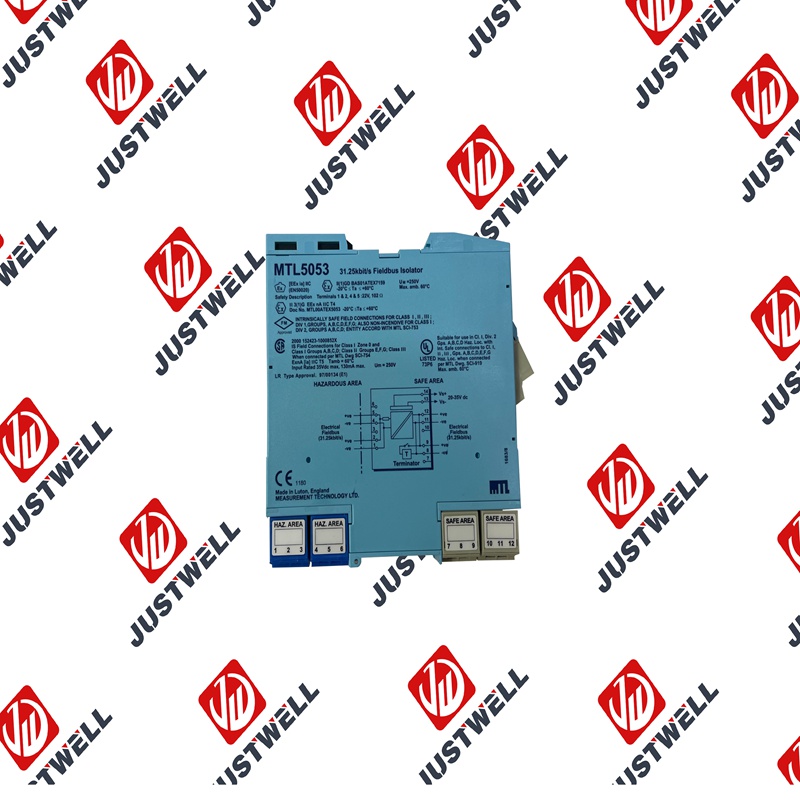

MTL5053 EATON ISOLATOR/POWER SUPPLY

Description

MTL5053 EATON ISOLATOR/POWER SUPPLY

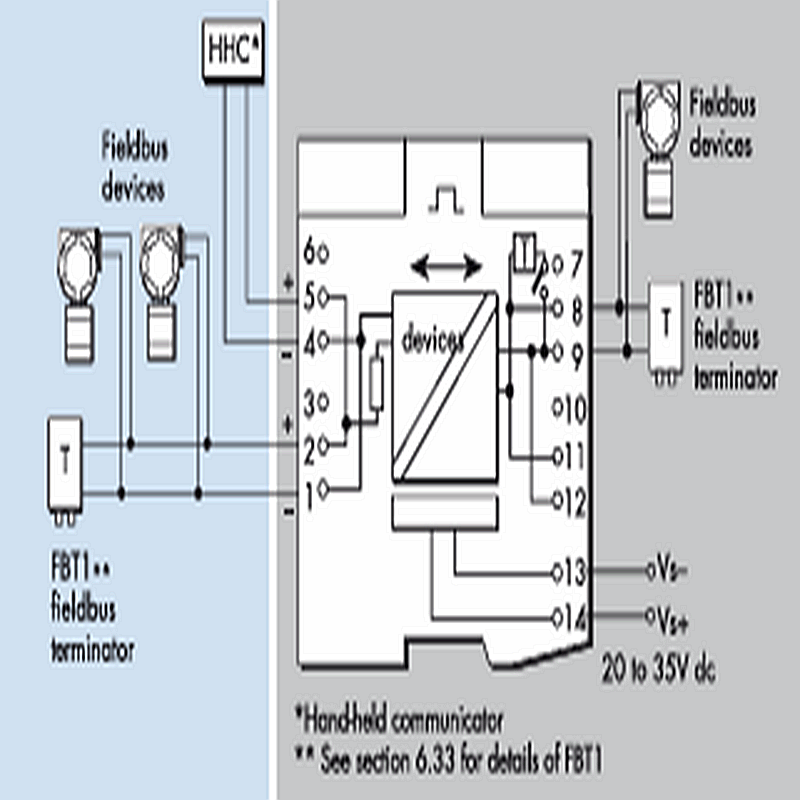

Product Dimensions：

Product Description

The MTL5053 is an intrinsically safe isolator and power supply designed for 31.25 kbit/s (H1) Fieldbus networks. It extends these networks into hazardous areas, supplying both power and data communication over the same signal conductors. A built-in switch allows enabling an internal terminator when the safe-area bus length is limited. This module adheres to the Fieldbus Foundation™ Type 133 specification for intrinsically safe power supplies. mtl-inst.comsunup-automation.com

Product Specifications

• Power Output (hazardous-area Fieldbus):

  • Voltage: 18.4 V ± 2%

  • DC impedance: 105 Ω ± 3%

  • Maximum current: 80 mA

• Supply (Input) Voltage:

  • Range: 20 to 35 V DC

  • Typical power input (Vs) at 24 V, 80 mA output: 135 mA

  • At 35 V: 105 mA

• Power Dissipation:

  • At 24 V: 2.3 W typical

  • At 35 V: 2.6 W maximum mtl-inst.com

• Isolation: 250 V AC between safe-area and hazardous-area circuits and power supply mtl-inst.com

• Digital Compatibility: Fully compatible with 31.25 kbit/s Fieldbus systems and adheres to IEC 61158-2, FF-816, and ISA-S50.02-1992 standards mtl-inst.comsunup-automation.com

• Status LED: One green LED indicates power status mtl-inst.com

• Certifications: Designed for installation in Zone 0, Group IIC, Temperature classes T4–T6, provided appropriate certification is in place mtl-inst.com

• Installation Note: DIN-rail mount recommended, horizontally on a vertical surface with at least 10 mm spacing between adjacent units for proper heat dissipation. If mounted improperly, max operating temperature lowers to 45 °C mtl-inst.com

Product Advantages

• Intrinsically Safe Power & Communication: Enables safe extension of Fieldbus networks into hazardous zones without compromising safety.

• Compact Integration: Combines power supply and isolator in a single DIN-rail module.

• Built-in Termination: Optional internal terminator simplifies installation where bus lengths are limited.

• Standards Compliance: Meets recognized international Fieldbus and safety standards.

• Efficient Thermal Design: Low dissipation ensures reliable operation within spec.

Caution / Handling Notes

• Mounting Orientation: Incorrect mounting that restricts airflow reduces maximum ambient operating temperature to 45 °C mtl-inst.com.

• Heat Dissipation: Allow 10 mm clearance on both sides when installing to ensure proper cooling.

• Intrinsic Safety Limits: Designed for specific hazardous area ratings; ensure installation complies with appropriate Zone 0, IIC, and T4–T6 specifications.

• Obsolescence: The product is discontinued. No direct replacement within the MTL5500 range is listed; see Eaton’s discontinued-product migration resources for alternatives mtl-inst.comEaton+1.

Applications

• Process Automation in Hazardous Areas: Ideal for plant utilities, chemical, petrochemical, oil & gas, and other environments where intrinsically safe control—via Fieldbus—is required.

• Fieldbus Network Expansion: Acts as a power/data node to feed field devices within hazardous locations over Fieldbus H1 systems.

• Limit-Sensitive Installations: Useful when safe-area Fieldbus segment length is limited, as it supports internal termination functionality.
