MVI56-GEC Prosoft Programmable controller

Description

MVI56-GEC Prosoft Programmable controller

Product Dimensions：

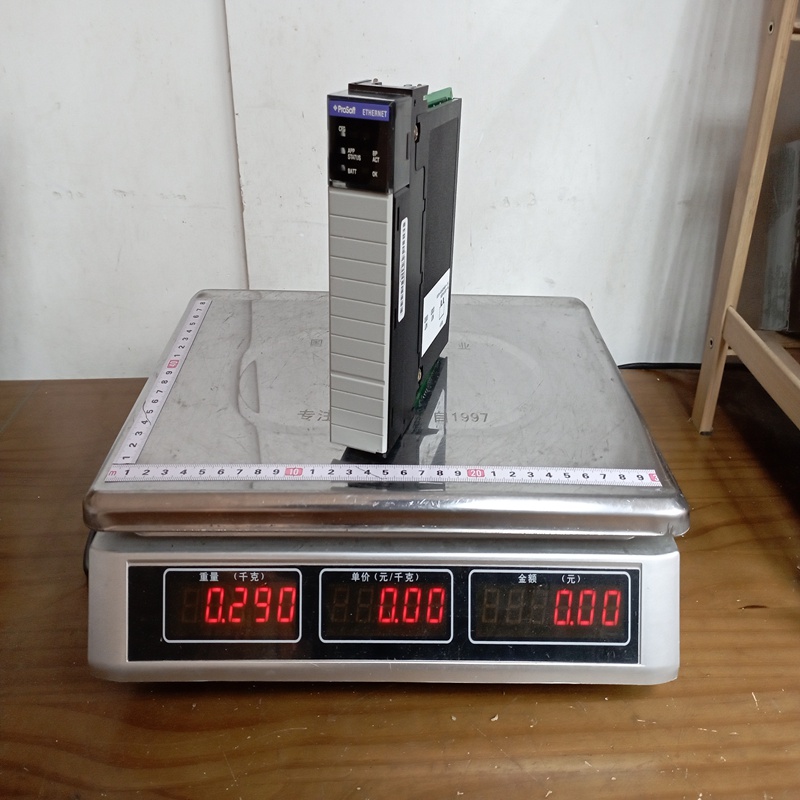

Product Description

The MVI56-GEC acts as a gateway between the ControlLogix backplane and an Ethernet network. It is specifically designed for “Generic” ASCII communication, meaning it doesn’t use a rigid industry protocol like EtherNet/IP or Modbus TCP. Instead, it sends and receives raw ASCII character strings.

The module can operate as both a Client (initiating connections) and a Server (waiting for connections), supporting up to five simultaneous Client and five simultaneous Server connections.

Product Parameters

Product Advantages

• Protocol Flexibility: Ideal for unique or proprietary ASCII protocols where no standard driver exists.

• High Connectivity: Supports up to 10 simultaneous connections (5 Client/5 Server), allowing one module to talk to multiple devices.

• Ease of Integration: It is recognized by the ControlLogix processor as a standard I/O module. Data is transferred using simple Ladder Logic or Add-On Instructions (AOI).

• Large Buffers: Capable of handling long ASCII strings (up to 2048 bytes) which is essential for complex barcode data or RFID tags.

• Diagnostic Tools: Includes a dedicated RS-232 Configuration/Debug port for real-time monitoring of the Ethernet traffic and module status.

Key Applications

The MVI56-GEC is typically used to bridge the gap between a PLC and peripheral factory floor equipment:

• Barcode Scanners/Readers: Receiving product IDs for sorting and tracking.

• Weight Scales: Pulling weight data from industrial scales via Ethernet.

• Printers: Sending print commands and label data to industrial inkjet or thermal printers.

• RFID Systems: Reading and writing to RFID tags.

• Legacy Terminals: Interfacing with older PC-based systems or specialized lab equipment that only exports data in ASCII format.

Important Considerations & Precautions

• Configuration: The module requires a configuration file (GEC.CFG) to be downloaded via the serial debug port before it can communicate on the network.

• Networking: Ensure the IP address of the module is on the same subnet as your ASCII devices.

• Data Handling: Since it is “Generic” ASCII, the user must manage the data parsing (stripping headers/terminators like CR or LF) within the ControlLogix ladder logic.

• Power Down: Always turn off the rack power before inserting or removing the module to prevent damage to the backplane or the card.

• Legacy Status: Note that the MVI56-GEC is a legacy product. For new installations, ProSoft often recommends the “Enhanced” version (MVI56E-GEC), which offers web-server diagnostics and easier configuration.
