NGDR-03C ABB Gate Circuit Board

Description

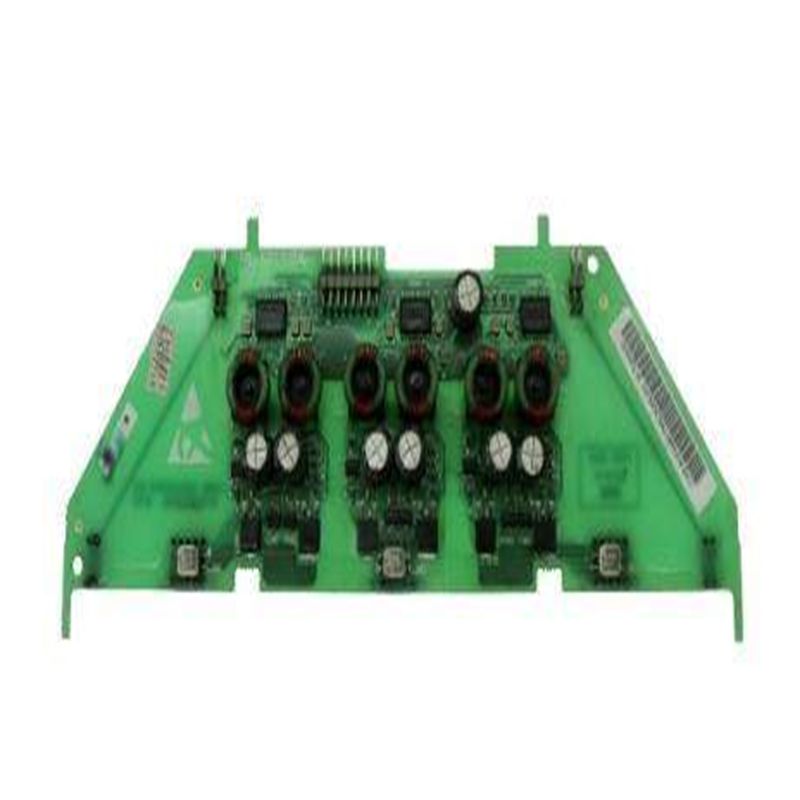

NGDR-03C ABB Gate Circuit Board

Product Dimensions：

The NGDR-03C is an electronic circuit board found in larger frame sizes of ABB drives, typically from R4i and up (referring to internal frame sizes of drive modules). It plays a vital role in the power section of the drive, where it acts as an interface between the low-power control signals and the high-power switching of the IGBTs. The board ensures that the IGBTs receive the correct voltage and current pulses to operate reliably and switch the high currents and voltages necessary for motor control.

Product Parameters

• Manufacturer: ABB
• Part Number (P/N): NGDR-03C
• ABB Product ID / Full Part Number: 61353364D
• Type: Gate Circuit Board / Gate Driver Board
• Function: Amplifies control pulses for IGBTs
• Compatibility: Designed for larger frame sizes of ABB industrial drives (e.g., ACS600 MultiDrive modules, and other high-power drives).
• Voltage Levels: Supports a broad spectrum of input voltage levels (from the control circuit) and provides amplified output for the IGBT gates. Specific voltage parameters for input/output would be detailed in the drive’s technical manual.
• Dimensions: Typically a compact board designed to fit within the drive module’s internal structure. (Exact dimensions would require specific schematics).
• Weight: Light, typically in the range of a few hundred grams.
• Operating Environment: Designed for demanding industrial environments, consistent with the drives it supports.

Product Advantages

• Precise IGBT Control: Ensures accurate and high-speed switching of IGBTs, which is critical for the efficient and reliable operation of the entire drive and motor.
• High Performance: Engineered for high-speed operation, guaranteeing optimal switching performance and facilitating seamless communication between the control circuits and power devices.
• Enhanced Drive Efficiency: By providing precise gate signals, it helps the IGBTs operate at their most efficient point, reducing power losses in the drive.
• System Reliability: A robust design contributes to the overall reliability and longevity of the industrial drive system, minimizing downtime.
• Overheating Protection: Often includes internal protection mechanisms to prevent damage from overcurrents or overheating within the gate driver stage.
• Designed for Integration: Built as a direct replacement or spare part for specific ABB drive series, ensuring seamless integration and compatibility.

Precautions

• Installation by Qualified Personnel: Due to its nature as a high-voltage electronic component within complex drive systems, installation, replacement, and troubleshooting must only be performed by trained and certified electrical engineers or technicians familiar with ABB drives and high-voltage safety procedures.
• Power Disconnection and Lockout: Always ensure the main power to the drive and the entire system is completely disconnected, locked out, and verified as de-energized before attempting any work on the NGDR-03C or any internal drive components. Residual voltage can be present even after power-off.
• Electrostatic Discharge (ESD) Protection: The NGDR-03C is a highly sensitive electronic board. Always handle it with appropriate ESD precautions (e.g., anti-static wrist strap, ESD-safe workstation, no direct touching of components/pins) to prevent damage from static electricity.
• Correct Orientation and Connections: Ensure the board is installed in the correct orientation and all connections (cables, connectors) are securely and properly attached according to ABB’s documentation for the specific drive model.
• Compatibility: Verify that the NGDR-03C is the correct part number for your specific ABB drive model and frame size. Using an incorrect board can lead to malfunction or damage.
• No Tampering/Unauthorized Repair: Any tampering, unauthorized removal, or attempts at repair by unqualified personnel can void warranties and create safety hazards. Non-compliant use of voltage or non-genuine parts can also lead to failure.
• Environmental Conditions: Ensure the drive system operates within its specified environmental conditions (temperature, humidity, vibration) to prevent damage to the NGDR-03C and other internal components.

Product Applications

The ABB NGDR-03C Gate Circuit Board is primarily used within ABB’s high-power industrial AC drives where IGBTs are utilized for power conversion. Its applications are therefore intrinsic to the use of these drives in demanding industrial processes:

• High-Power Motor Control: Essential for controlling large industrial motors in applications such as pumps, fans, compressors, conveyors, and rolling mills.
• Variable Speed Drive (VSD) Systems: Forms a core part of the power electronics within VSDs, enabling precise speed and torque control for efficiency and process optimization.
• Power Generation and Distribution: Found in drives used for auxiliary equipment in power plants, or in grid-tie applications where high-power converters are used.
• Metals Industry: Critical in drives for heavy machinery like rolling mills, cranes, and hoists.
• Mining: Powering large conveyors, crushers, and other heavy equipment.
• Oil & Gas: Used in drives for large pumps, compressors, and drilling equipment.
• Marine Applications: In propulsion systems and auxiliary drives for vessels.
• Maintenance and Repair: Primarily sold as a spare part for maintaining and repairing existing ABB drive installations, particularly for models like the ACS600 MultiDrive modules or similar high-power drive series.
