PCI-4065 National Instruments 6½-digit digital multimeter (DMM)

Description

PCI-4065 National Instruments 6½-digit digital multimeter (DMM)

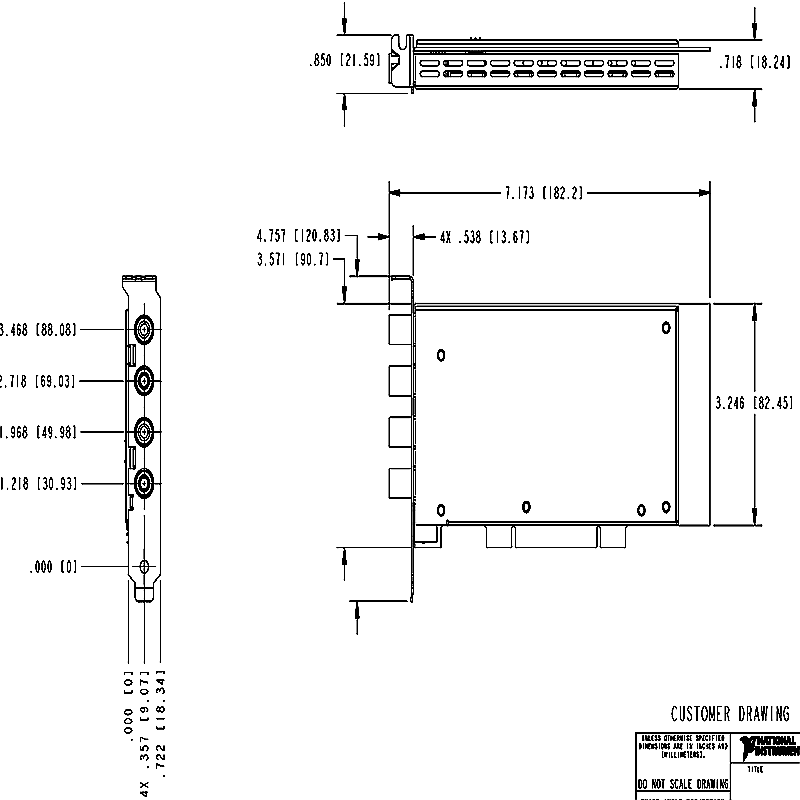

Product Dimensions：

Product Description

The NI PCI-4065 is a 6.5-digit Digital Multimeter (DMM) for the PCI bus. It’s a cost-effective solution designed to integrate DMM functionality directly into a desktop PC, making it ideal for a wide range of test and measurement applications, from OEM systems to educational labs. The device can perform multiple measurement functions on a single card, providing a complete multimeter solution.

Product Specifications

• Bus Connector: PCI (a PCIe version, the PCIe-4065, is also available).
• Resolution: 6.5 digits.
• DC Voltage Range: -300 V to 300 V.
• AC Voltage Range: 200 mV to 300 V.
• DC Current Range: -3 A to 3 A.
• AC Current Range: 10 mA to 3 A.
• Resistance Measurement: 2-wire and 4-wire resistance, from 100 Ω to 100 MΩ.
• Other Functions: Diode test.
• Maximum Sample Rate: 3 kS/s.
• Basic DC Voltage Accuracy: 90 ppm.

Product Advantages

• Versatility: The PCI-4065 is a multi-function device that can measure AC/DC voltage, AC/DC current, resistance, and perform diode tests, all from a single, compact PCI card. This reduces the need for multiple instruments and simplifies your test setup.
• Cost-Effective: It’s an affordable solution, making it well-suited for applications where budget is a primary concern, such as in academic settings, small labs, or for Original Equipment Manufacturers (OEMs).
• Seamless Integration: The PCI interface allows for easy integration into a standard PC, turning it into a powerful and flexible measurement system. It works with NI’s software platforms, such as LabVIEW, which provides a user-friendly environment for data acquisition, analysis, and automation.
• High Resolution: The 6.5-digit resolution provides the precision needed for a wide variety of tests, allowing you to achieve accurate and reliable measurements.

Product Applications

The NI PCI-4065 is a versatile tool for many applications, including:

• Automated Test Equipment (ATE): It can be integrated into automated test systems for manufacturing and quality control, where its compact size and measurement capabilities are beneficial.
• Educational and Academic Labs: Its versatility and cost-effectiveness make it an ideal tool for teaching fundamental and advanced electronics principles.
• Design Validation: Engineers can use it to measure and validate the performance of electronic components and circuits during the design phase.

Precautions

To ensure safe and reliable operation of the NI PCI-4065, please be aware of the following:

• Hazardous Voltages: The device can measure hazardous voltages. Always follow proper safety procedures and never touch exposed terminals when power is applied.
• Installation: For optimal electromagnetic compatibility (EMC) and input protection, ensure the front panel bracket is securely screwed to the computer chassis, creating a firm metal-to-metal connection.
• Current Measurement: The current measurement path uses an internal relay. To ensure the relay’s longevity, switch the DMM to the current measurement function before applying current to the circuit. Avoid interrupting the current by switching functions while current is flowing.
• Environmental Conditions: The device is designed for indoor use. Avoid exposing it to extreme temperatures, humidity, or other harsh environmental conditions, as these can affect its accuracy and lifespan.
