PCI-4065 National Instruments Digital Multimeter Device

Description

PCI-4065 National Instruments Digital Multimeter Device

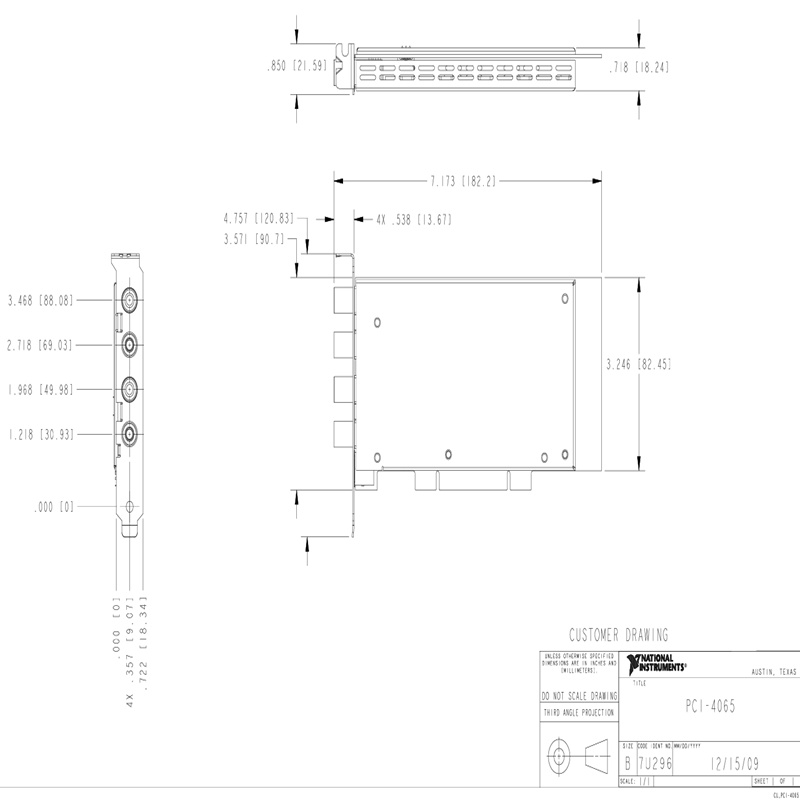

Product Dimensions：

Product Description

The NI PCI-4065 is a 6.5-digit Digital Multimeter (DMM) designed for use in a wide range of test and measurement applications. It is a cost-effective solution that offers a variety of measurement functions on a single PCI card, making it suitable for OEM, educational, and other cost-sensitive applications.

Product Specifications

• Bus Connector: PCI Express (also available in a PCI version).
• Resolution: 6.5 digits.
• DC Voltage Range: -300 V to 300 V.
• AC Voltage Range: 200 mV to 300 V.
• DC Current Range: -3 A to 3 A.
• AC Current Range: 10 mA to 3 A.
• Resistance Measurement: 2-wire and 4-wire resistance, from 100 Ω to 100 MΩ.
• Other Functions: Diode test.
• Maximum Sample Rate: 3 kS/s.
• Basic DC Voltage Accuracy: 90 ppm.

Product Advantages

• Versatility: The NI PCI-4065 can perform multiple measurements—including AC/DC voltage, AC/DC current, resistance, and diode tests—all from a single, compact device.
• Cost-Effective: It is an ideal solution for applications where cost is a primary concern, such as in educational settings or for Original Equipment Manufacturers (OEMs).
• PCI Interface: The PCI and PCIe interfaces allow for easy integration into desktop PCs, turning a standard computer into a powerful measurement system.
• High Resolution: The 6.5-digit resolution provides the precision needed for a wide variety of tests and measurements.
• Integration with NI Software: The device is designed to work seamlessly with NI’s software platforms like LabVIEW, which provides a user-friendly environment for data acquisition, analysis, and automation.

Product Applications

The NI PCI-4065 is well-suited for a variety of applications, including:

• Academic and Educational Labs: Its versatility and cost-effectiveness make it a great tool for teaching fundamental and advanced electronics principles.
• Automated Test Equipment (ATE): It can be integrated into automated test systems for manufacturing and quality control, where its compact size and measurement capabilities are a major benefit.
• Design Validation and Characterization: Engineers can use it to measure and validate the performance of electronic components and circuits.
• System Monitoring: It can be used for long-term data logging and monitoring of various electrical parameters in a system.

Precautions and Safety

When using the NI PCI-4065, it is important to follow safety guidelines to ensure reliable operation and prevent damage to the device and your system. Key precautions include:

• Hazardous Voltage: Be aware that the device can handle and measure hazardous voltages. Always follow proper safety procedures and never touch exposed terminals.
• Current Measurement: The current measurement path uses an internal relay. To ensure the longevity of this component, it’s best to switch the DMM to the current measurement function before applying current to the circuit.
• Environmental Conditions: The device is designed for indoor use only. Avoid exposing it to extreme temperatures, humidity, or other harsh environmental conditions, as these can affect its accuracy and lifespan.
• Calibration: Temperature can significantly impact DMM accuracy. To maintain performance, refer to the documentation for self-calibration procedures and be mindful of the temperature coefficients.
