PCI-6703 National Instruments 16-Channel Analog Output Device

Description

PCI-6703 National Instruments 16-Channel Analog Output Device

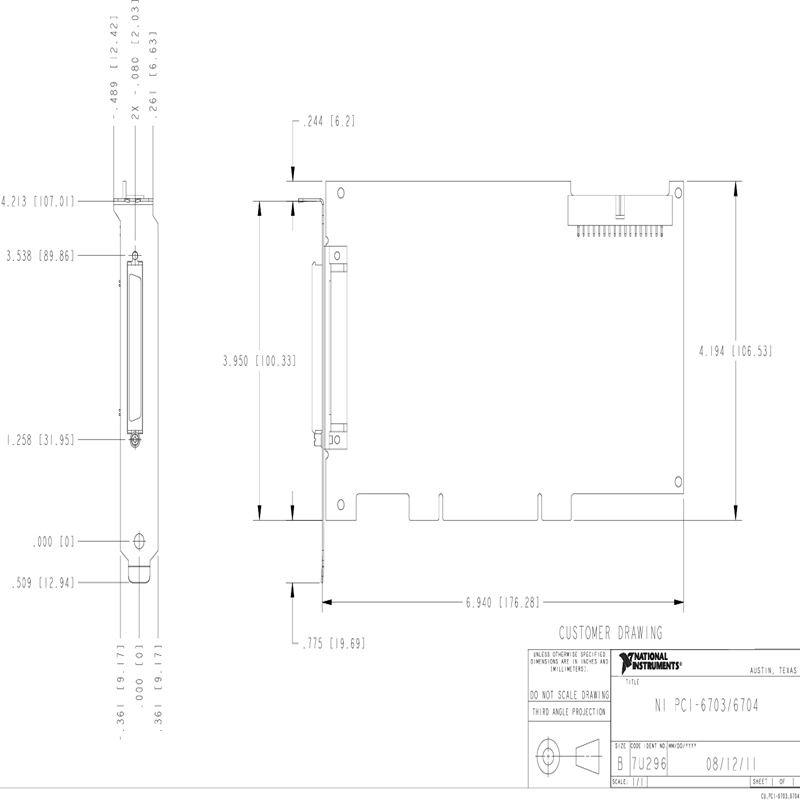

Product Dimensions：

Product Description

he NI PCI-6703 is a software-timed analog output device for the PCI bus. It is designed to generate static or very low-frequency voltage signals with high accuracy, making it suitable for control applications and sensor simulation. The device is a cost-effective solution for systems that require multiple analog output channels without the need for high-speed dynamic updates.

Product Specifications

• Bus Connector: PCI
• Channels: 16 analog voltage output channels.
• Resolution: 16 bits.
• Output Range: $\pm 10$ V.
• Output Rate: Static (software-timed).
• Accuracy: $\pm 1$ mV.
• Digital I/O: 8 digital I/O lines.
• Connector: 68-pin shielded SCSI II connector.

Product Advantages

• High Channel Count: With 16 voltage output channels, the PCI-6703 provides a compact and efficient solution for applications that require a large number of independent analog outputs.
• High Resolution and Accuracy: The 16-bit resolution and $\pm 1$ mV accuracy ensure precise signal generation, which is crucial for control systems and test benches.
• Cost-Effective: As a software-timed device, it is more affordable than higher-speed dynamic output cards, making it an excellent choice for budget-sensitive projects that don’t need fast waveform generation.
• Integration with NI Software: The PCI-6703 works seamlessly with National Instruments’ software, such as LabVIEW, which simplifies configuration and provides a powerful environment for building control and measurement applications.

Product Applications

The NI PCI-6703 is well-suited for a variety of applications where stable, accurate analog signals are needed.

• Process Control: It can be used to control valves, actuators, or other devices in industrial automation systems where outputs don’t need to change at high speeds.
• Sensor Simulation: Engineers can use the device to simulate signals from a variety of sensors for testing and calibrating data acquisition systems.
• Scientific and Educational Experiments: Its high channel count and precision make it an ideal tool for research and academic settings, where it can be used to control experimental parameters.
• Automated Test Equipment (ATE): It can be integrated into ATE systems to provide stimulus signals to units under test.

Precautions

To ensure the safety and proper function of the NI PCI-6703, please be aware of the following:

• Indoor Use Only: The device is designed for indoor use and should not be exposed to extreme temperatures, humidity, or other harsh environmental conditions.
• Shielded Cables: For optimal performance and EMC compliance, the device should be operated with shielded cables connected to the 68-pin SCSI II connector.
• Safety Standards: The product is designed to meet safety standards for electrical equipment, but users must still follow proper safety procedures, especially when working with high voltages. Do not use this device for signals within Measurement Categories II, III, or IV.
• ESD Precautions: Always follow proper electrostatic discharge (ESD) precautions when handling the device to prevent damage to its sensitive electronic components.
