PKZ-SOL30 EATON Strangschutzschalter

Description

PKZ-SOL30 EATON Strangschutzschalter

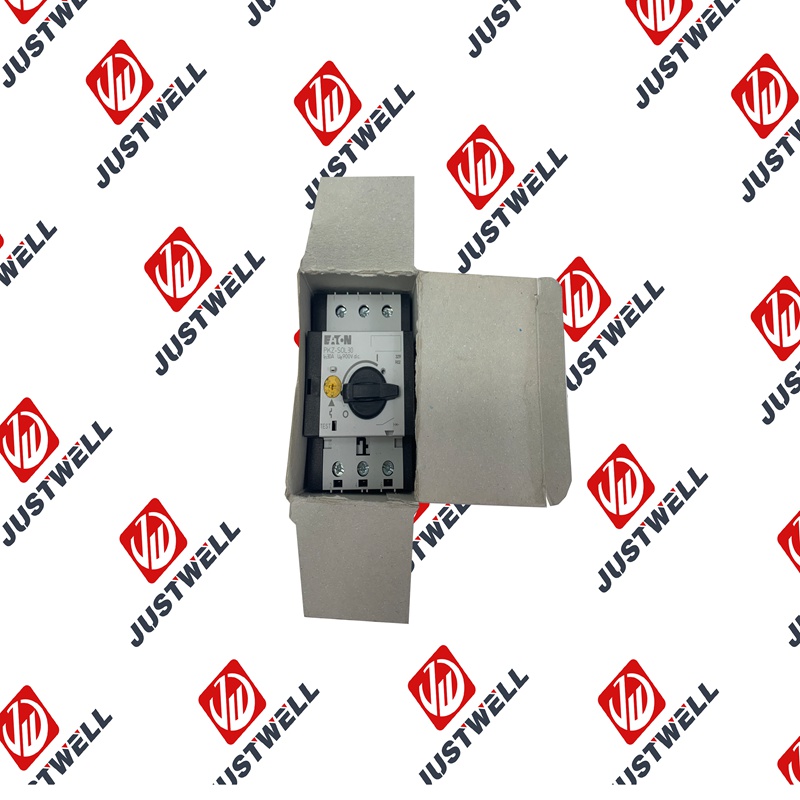

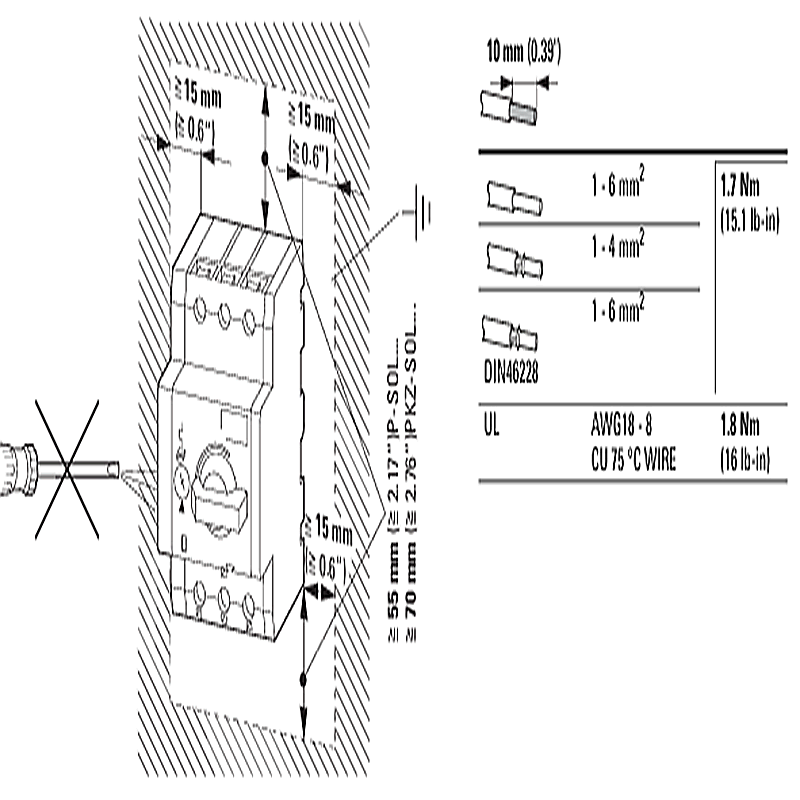

Product Dimensions：

Product Description

The Eaton PKZ-SOL30, part of the Moeller® PKZ-SOL string circuit-breaker series, is a three-pole, fuseless DC protection device designed to safeguard photovoltaic strings and DC installations. It serves as a reliable alternative to fuses, with adjustable trip settings for fine-tuning to actual string short-circuit currents.
It is engineered for easy integration within customer-specific junction boxes and suitable for open areas and utility buildings.

Product Specifications (Parameters)

Product Advantages

• Fuseless Protection: Unlike traditional fuses, this circuit-breaker can be reset immediately after a trip, reducing downtime.Eatonelectricautomationnetwork.com

• Adjustable Settings: Offers fine tuning of thermal (23–30 A) and magnetic (6×Ie) trip parameters to match actual string conditions.Eatoneibabo.com

• Compact & Lightweight: Small footprint (93 × 58 × 76 mm) and low weight (~0.3 kg) make it easy to install and integrate.Eatonelectricautomationnetwork.com

• DIN-Rail Ready: Supports versatile and convenient mounting in standard panels.Eaton+1

• Wide Environmental Range: Rated for –25 °C to +60 °C, and tested for resistance to humidity and UV.Eaton+1

• High Safety Standards: Complies with IEC/EN 60947-2 and TÜV certification.Eatonelectricautomationnetwork.com

Cautions / Handling Notes

• Professional Installation Only: All electrical work must be performed by qualified personnel following local and product regulations.

• Panel Builder Responsibilities: Heat dissipation, short-circuit rating, and electromagnetic compatibility must be calculated by the panel builder using Eaton’s data.

• No Auxiliary Contacts: The device does not include auxiliary status contacts for remote signaling.

• Zero Breaking Capacity at 400 V AC: The Icu at 400 V AC is listed as 0 kA — suitable only for DC photovoltaic systems, not AC fault protection.

• IP00 Protection: Requires suitable enclosure to prevent exposure to dust, contact, and potential hazards.

Applications

• Photovoltaic Systems: Ideal for protecting individual PV strings against overcurrent and short-circuits.

• DC Switchgear Panels: Suited for open-area installations and components within utility buildings.

• Renewable Energy Infrastructure: Integrates with solar, data centers, utilities, and machine-building sectors.

• Custom Junction Boxes: Often installed within tailored enclosures to suit system-specific layouts and control needs.
