PXI-5402 National Instruments Arbitrary Function Generator

Description

PXI-5402 National Instruments Arbitrary Function Generator

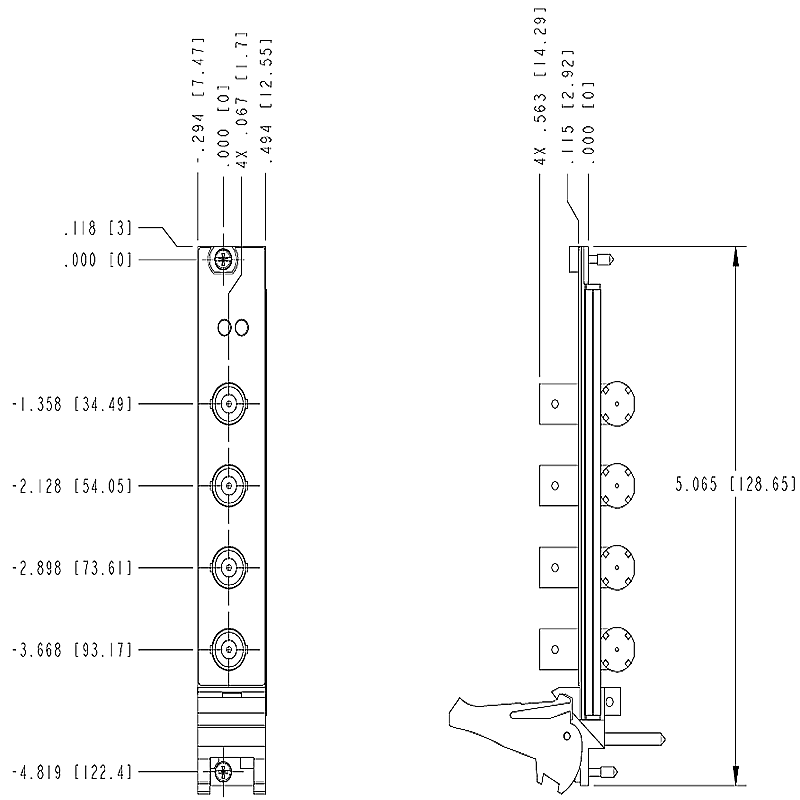

Product Dimensions：

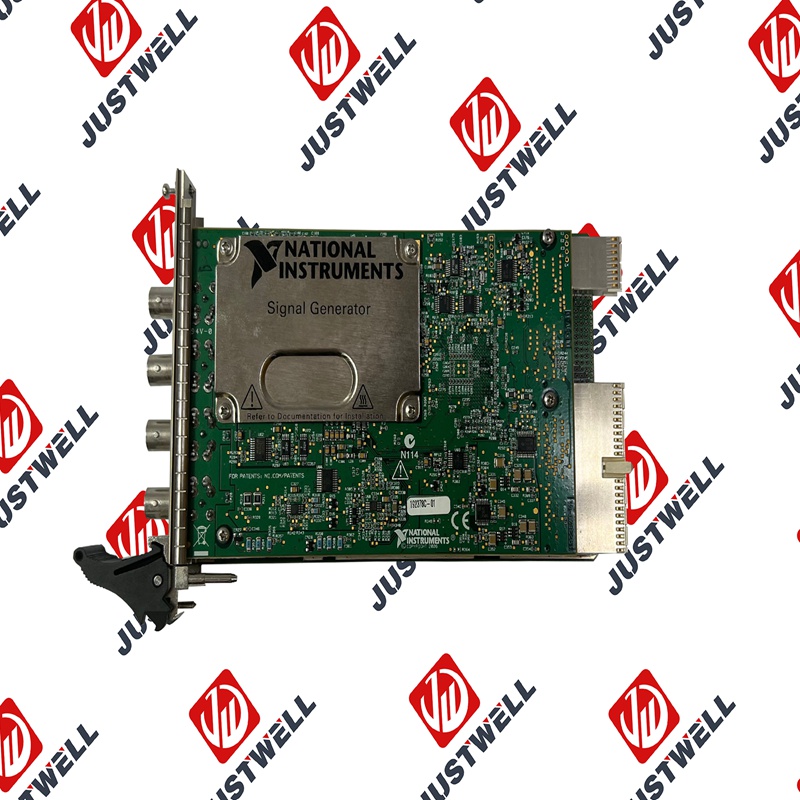

Product Description

The NI PXI-5402 is a 20 MHz, 1-channel, 14-bit PXI arbitrary function generator. This module is designed for the PXI platform and can generate a wide range of standard functions, including sine, square, triangle, and ramp waves. It also supports the generation of DC signals and pseudorandom noise. A key feature is its use of Direct Digital Synthesis (DDS) technology, which allows for extremely precise frequency and phase control.

Product Specifications

• Number of Channels: 1
• Maximum Bandwidth: 20 MHz
• Analog Output Resolution: 14 bits
• Maximum Sample Rate: 100 MS/s
• Frequency Resolution: 0.355 μHz
• Output Voltage Range: ±5 V (ACpk + DC)
• Output Impedance: Software-selectable 50 Ω or 75 Ω
• Synchronization: Supports NI-TClk technology for multi-module synchronization
• Trigger Modes: Single, Continuous, Stepped, and Burst
• Output Filtering: Features a software-selectable 7-pole elliptical analog filter

Product Advantages

The NI PXI-5402 is a powerful and flexible waveform generator, offering several significant advantages:

• High-Quality Signal Generation: It provides exceptional analog output performance with low noise and distortion. The software-selectable analog filter helps suppress high-frequency signal images, ensuring a clean output.
• Precise Control: With a frequency resolution of 0.355 μHz and the use of DDS, it offers high-frequency accuracy and stability for repetitive waveforms.
• Seamless PXI Integration: It takes full advantage of the PXI platform’s integrated timing and synchronization capabilities. Using NI-TClk technology, you can achieve sub-nanosecond synchronization with other PXI instruments.
• Flexibility: It can generate a variety of standard waveforms and also supports arbitrary waveform generation. The module also allows for phase adjustment and waveform summing, which is useful for complex signal creation.

Applications

The PXI-5402 is suitable for a diverse range of test, measurement, and control applications that require a stable and precise signal source. Common applications include:

• Automated Test Equipment (ATE): Generating stimulus signals for testing electronic components and circuits.
• Communications: Creating modulated signals for testing RF and communication systems.
• Sensor Simulation: Simulating a wide range of sensor outputs for closed-loop control systems and hardware-in-the-loop (HIL) testing.
• Research and Development: Providing a highly accurate signal source for various experiments in physics, engineering, and other scientific fields.

Important Considerations

When using the PXI-5402, keep the following in mind to ensure optimal performance:

• Software and Driver Support: The device requires the NI-FGEN instrument driver to be installed on your system.
• Cabling: Use high-quality, shielded cables with the correct impedance (typically 50 Ω) to prevent signal degradation and unwanted noise.
• Synchronization: For multi-module synchronization, use the PXI backplane’s trigger lines and ensure your software is correctly configured to use NI-TClk technology.
• Waveform Generation Modes: While the PXI-5402 is a function generator, it also supports arbitrary waveform generation. It’s important to understand the capabilities and limitations of each mode for your specific application.
