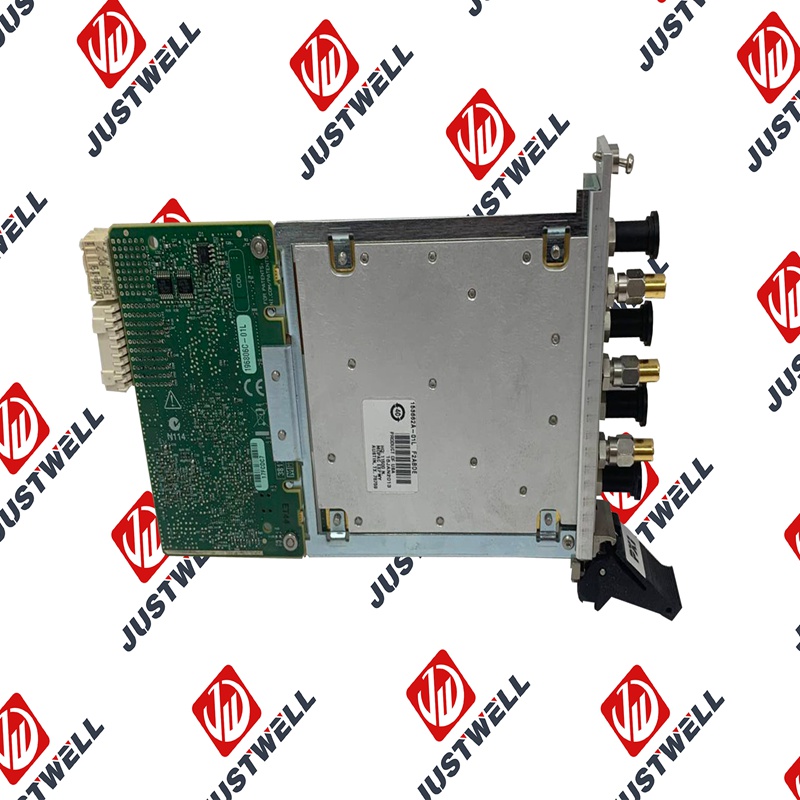

PXIE-2790 National Instruments PXI Express RF multiplexer switch module

Description

PXIE-2790 National Instruments PXI Express RF multiplexer switch module

Product Dimensions：

Product Description

The NI PXI-6030E is a versatile multifunction data acquisition (DAQ) module designed for the PXI platform. As part of National Instruments’ E Series family, it offers a reliable and cost-effective solution for a variety of measurement and control tasks. This module combines analog input, analog output, digital I/O, and two 16-bit counter/timers, making it a powerful and flexible tool for a wide range of applications.

Product Specifications

• • Analog Input (AI):
    • Resolution: 12-bit
    • Channels: 16 single-ended or 8 differential
    • Maximum Sample Rate: 200 kS/s (aggregate)
    • Input Ranges: Programmable (e.g., ±0.2 V to ±10 V)
  • Analog Output (AO):
    • Resolution: 12-bit
    • Channels: 2
    • Output Rate: 100 kS/s per channel
    • Output Range: ±10 V
  • Digital I/O (DIO):
    • Channels: 8
    • Compatibility: TTL/CMOS
  • Counter/Timers:
    • Channels: 2 (16-bit)
    • Functions: Event counting, pulse generation, frequency measurement, etc.
  • Bus Interface: PXI (3U, single slot)
  • Onboard Memory: 512-sample AI FIFO

  Product Advantages

  The PXI-6030E offers several key benefits that make it a great choice for many applications:

  • Multifunctionality: Its combination of multiple I/O types in a single module is a major advantage, allowing you to handle complex tasks without needing several specialized cards.
  • Cost-Effective Performance: The E Series provides a great balance of performance and price, offering reliable data acquisition capabilities that are well-suited for many standard applications without a high-end cost.
  • Seamless PXI Integration: The module integrates perfectly into a PXI system, leveraging the backplane for precise synchronization and triggering with other PXI instruments.
  • Powerful Driver Support: It is fully supported by NI-DAQmx, National Instruments’ comprehensive driver software. This simplifies programming and provides features like multithreading and hardware-timed I/O, speeding up your development time.

  Applications

  The PXI-6030E is widely used in a variety of fields that require simultaneous measurement and control. Common applications include:

  • Lab Automation: Data logging from sensors and controlling experimental setups.
  • Industrial Control: Monitoring processes and controlling actuators in light industrial environments.
  • Automated Test Equipment (ATE): Acquiring data from devices under test (DUTs) and providing control signals in a test system.
  • Education and Research: Serving as a flexible and reliable platform for teaching data acquisition principles.

  Important Considerations

  For optimal performance and reliable operation, keep these points in mind when using the PXI-6030E:

  • Software and Drivers: You must install the NI-DAQmx driver to use the module. Make sure you have a compatible version for your operating system and development environment (e.g., LabVIEW).
  • Cabling: Use appropriate shielded cables and accessories like screw terminal blocks (e.g., SCB-68) to reduce noise and ensure accurate measurements, especially for low-level analog signals.
  • Sample Rate: The 200 kS/s sample rate is an aggregate rate. If you are sampling multiple channels, the per-channel rate will be lower. Plan your sampling strategy accordingly.
  • Grounding: Proper grounding practices are essential to avoid ground loops and common-mode noise, which can significantly affect measurement accuracy.
