PXIE-8135 National Instruments high-performance embedded controller

Description

PXIE-8135 National Instruments high-performance embedded controller

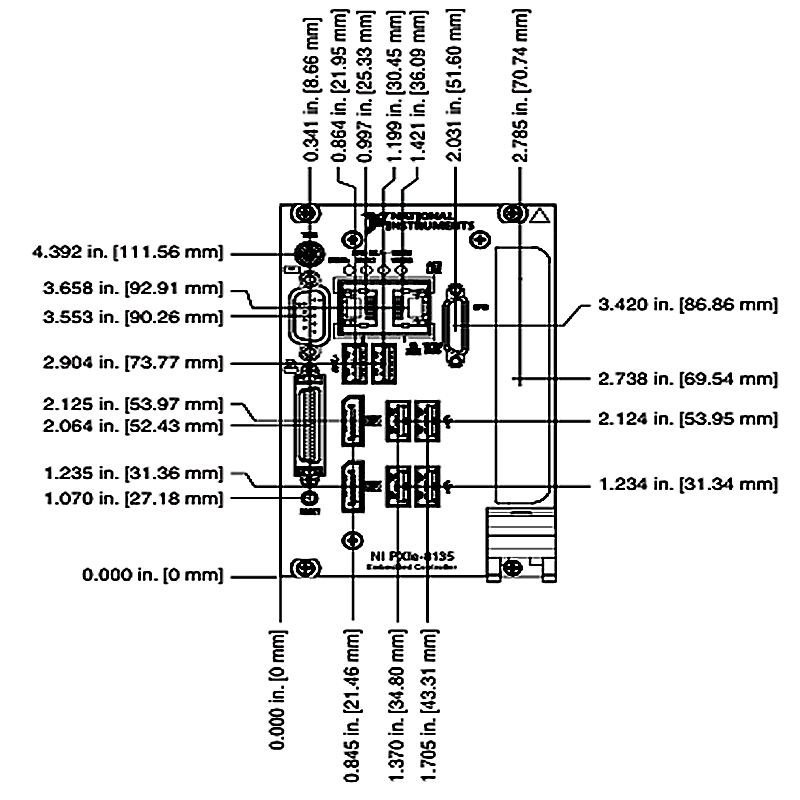

Product Dimensions：

Product Description

The NI PXIe-8135 is an embedded controller for PXI Express systems, designed to serve as the brain of a modular test and measurement system. It combines a high-performance processor with the high-bandwidth PXI Express backplane, making it an ideal choice for processor-intensive applications such as RF and streaming data.

Product Specifications

• Processor: The PXIe-8135 features an Intel Core i7-3610QE quad-core processor.
  • Base Frequency: 2.3 GHz
  • Turbo Boost Frequency: Up to 3.3 GHz
• System Bandwidth: It has a maximum system bandwidth of up to 8 GB/s. This is crucial for applications that involve high-speed data transfer between the controller and PXI modules.
• Memory (RAM): The controller comes with 4 GB of dual-channel 1600 MHz DDR3 RAM as standard, and it is expandable up to 16 GB.
• Storage: It includes an integrated hard drive, with options for standard (7200 rpm) or extended temperature (5400 rpm) hard drives.
• Connectivity: The PXIe-8135 offers a wide range of I/O ports:
  • Ethernet: Two 10/100/1000BASE-TX (Gigabit) Ethernet ports.
  • USB: Two SuperSpeed USB ports (USB 3.0) and four Hi-Speed USB ports (USB 2.0).
  • Other: It also has a serial port and other peripheral I/O.
• Operating System: It can be configured with either Windows 7 or a LabVIEW Real-Time OS, giving you flexibility for both standard computing and deterministic real-time applications.

Product Advantages

• High Performance: The quad-core Intel Core i7 processor provides the power needed for computationally intensive tasks, such as signal processing, data analysis, and running complex control algorithms.
• High Bandwidth: The PXI Express backplane with up to 8 GB/s of system bandwidth allows for extremely fast data streaming and communication between the controller and other PXI modules, which is vital for high-channel-count or high-speed data acquisition systems.
• Flexibility: The choice of Windows 7 or LabVIEW Real-Time OS, combined with a wide range of I/O, makes the PXIe-8135 a versatile controller that can be adapted to many different applications.
• Compact and Integrated: As an embedded controller, the PXIe-8135 fits directly into a PXI chassis, creating a single, integrated system for processing, control, and measurement. This saves space and simplifies the overall system architecture.

Product Applications

The NI PXIe-8135 is an excellent choice for a variety of demanding applications.

• RF and Wireless Test: Its high processing power and bandwidth are perfect for applications like signal intelligence, spectral analysis, and testing modern wireless communication devices.
• High-Speed Data Acquisition: It can handle and process large amounts of data from high-speed digitizers or high-channel-count systems, making it suitable for scientific research and automated test applications.
• Hardware-in-the-Loop (HIL) Simulation: When configured with the LabVIEW Real-Time OS, it provides the deterministic performance needed for HIL testing, where the controller must interact with a real-time system.
• Machine Vision: The processor’s power can be used to run complex image processing algorithms in real time for machine vision and inspection systems.

Precautions

To ensure the longevity and proper operation of the PXIe-8135, keep the following in mind:

• ESD Precautions: The controller contains sensitive electronic components. Always handle it in a static-safe environment and use an anti-static wrist strap when installing or removing it from the chassis.
• Chassis Compatibility: The PXIe-8135 must be installed in a compatible PXI Express or PXI Express Hybrid slot in a PXI chassis that provides adequate power and cooling.
• Not Hot-Swappable: Never install or remove the PXIe-8135 while the PXI chassis is powered on. Doing so can cause permanent damage to the controller or the chassis.
• Software: Make sure all necessary drivers and software are installed before using the controller. This is essential for the system to properly recognize and communicate with the device.
