RDCO-03 ABB Input module

Description

RDCO-03 ABB Input module

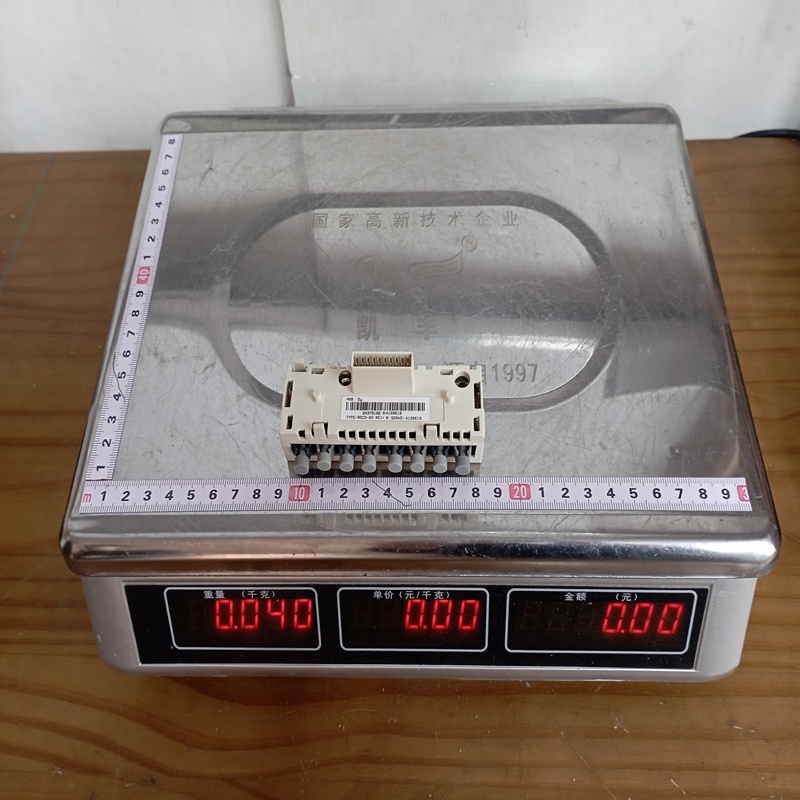

Product Dimensions：

Product Description

The RDCO-03 module is a plug-in adapter that provides multiple fiber optic channels for the drive. Its primary function is to enable the drive to communicate with external controllers (like an AC 800M PLC), other drives (Master/Follower setups), or PC tools. The “-03” designation specifically refers to the power/speed rating of the optical components, typically utilizing 10 MBd (megabaud) optical components for specific distances and protocols.

Product Parameters

Product Advantages

• Immunity to Noise: By using fiber optics, the RDCO-03 provides total galvanic isolation, making it immune to electromagnetic interference (EMI) and radio frequency interference (RFI).

• High-Speed Data Transfer: Supports rapid synchronization between drives, which is critical for load sharing and master/follower applications.

• Multi-Channel Versatility:

  • CH0: Connects to overriding control systems (PLC).

  • CH1: Used for Master/Follower drive-to-drive communication.

  • CH2: Reserved for B&R or other specialized I/O.

  • CH3: Dedicated for PC tool connection (e.g., DriveWindow).

• Compact Design: Fits directly into the option slot of the drive controller, requiring no extra rail space.

Important Considerations & Precautions

• Fiber Optic Handling: The most common cause of failure is a broken or dirty fiber optic tip. Do not bend the cables beyond the 25mm radius and always use protective caps when cables are disconnected.

• Compatibility: Ensure the drive’s firmware supports the RDCO-03. Some older ACS800 units may require a firmware update to recognize the DDCS channels.

• Correct Porting: Crossing the Transmitter (Tx) and Receiver (Rx) lines is a frequent installation error. Ensure the black connector (Rx) and grey connector (Tx) are matched correctly at both ends.

• Tightening: When plugging the module into the RMIO board, ensure the plastic mounting screw is tightened to ensure a solid electrical connection to the bus.

Typical Applications

• Master/Follower Control: Coordinating multiple motors on a single conveyor or paper machine to ensure equal load distribution.

• PLC Integration: Connecting ACS800 drives to an ABB AC 800M or Advant controller via the CI810/CI860 fieldbus modules.

• Remote Diagnostics: Allowing a technician to connect a laptop with DriveWindow software to the drive from a distance, away from high-voltage areas.

• Multi-Drive Systems: Linking various drive sections in a complex plant network for centralized monitoring.
