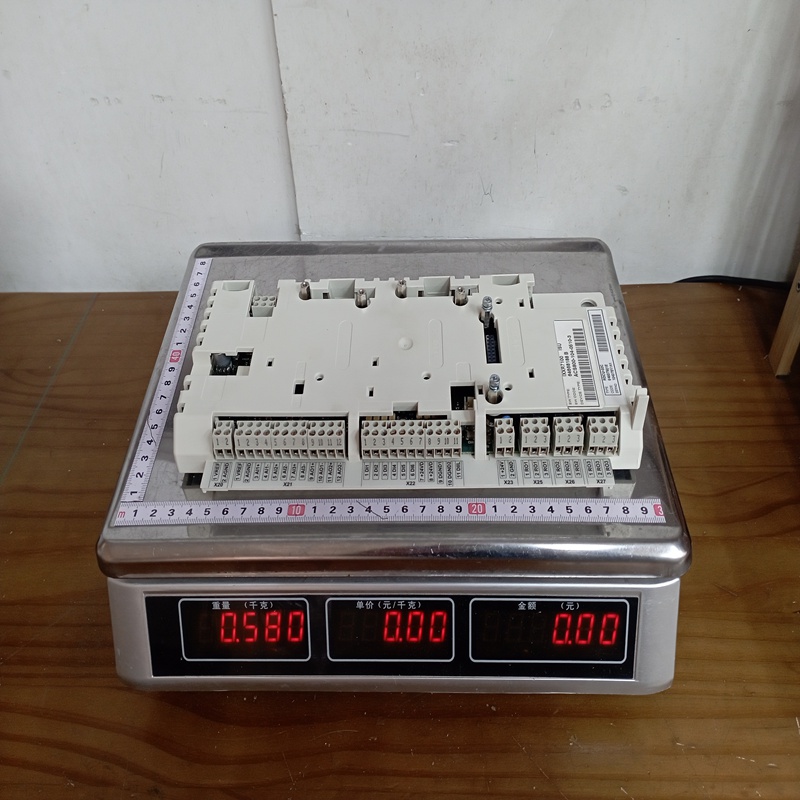

RDCU-02C ABB Central control module
RDCU-02C ABB Central control module - Image 2
RDCU-02C ABB Central control module - Image 3

RDCU-02C ABB Central control module ABB

Brand： ABB

Model number： RDCU-02C

Colour：new                                    Warranty: 12 months

Lead Time：3-day working day   Country of origin: USA

Price: Please contact us         Product weight：0.58kg

Get a Quote
Category: Brand:

Description

RDCU-02C ABB Central control module

Product Dimensions：

Product Description

The RDCU-02C (64607901) is a coated control unit designed for durability in harsh industrial environments. It provides the processing power required for the ACS800’s Direct Torque Control (DTC) technology. The “C” in the model name indicates that the printed circuit boards are conformal coated, offering superior protection against moisture, dust, and corrosive particles.

Product Parameters

Feature Specification
Input Power 24 VDC ($\pm10\%$)
Current Consumption 250 mA (typical) to 1.2 A (max with options)
Digital Inputs 6 programmable inputs + 1 Start Interlock (DIIL)
Analog Inputs 2x Current (0/4–20 mA), 1x Voltage (-10V to +10V)
Analog Outputs 2x Programmable current outputs (0/4–20 mA)
Relay Outputs 3x Programmable (8 A @ 24 VDC / 250 VAC)
Fiber Optic Links V57 (Transmitter), V68 (Receiver) for PPCS link
Mounting Standard 35mm DIN rail
Operating Temp -10°C to +50°C

Product Advantages

  • Precision Motor Control: Specifically optimized for ABB’s DTC (Direct Torque Control), providing high torque at zero speed and excellent dynamic response.

  • Environmental Resilience: The conformal coating makes it suitable for “harsh” environments like pulp and paper mills, chemical plants, or offshore platforms.

  • Modular Communication: Supports various fieldbus adapters (PROFIBUS, DeviceNet, CANopen) via optional plug-in modules.

  • Isolation: Offers high isolation voltage (up to 4 kV AC for relay outputs) to protect the controller from field-side electrical noise.

  • Fiber Optic Support: Uses high-speed fiber optic links to communicate with the power unit, ensuring total electrical isolation and immunity to EMI.

Key Considerations & Precautions

  • Software Requirement: This unit is often sold “blank.” It does not include application software by default. You must load the correct firmware package (e.g., Standard, System, or Master/Follower) before use.

  • Static Electricity: The internal RMIO board is extremely sensitive to ESD. Avoid touching the board directly; use an antistatic wrist strap during installation.

  • Fiber Optic Handling: Never touch the ends of the fiber optic cables with bare hands. Dirt or grease can significantly degrade the signal. The minimum bend radius for these cables is 25 mm.

  • Power Supply: If powering from an external 24V supply, ensure it is stable. The RDCU can also be powered directly from the inverter’s power supply board if the current draw is within limits.

Typical Applications

The RDCU-02C is the standard control hub for:

  • ACS800 Series Drives: Single drives, multidrive modules, and liquid-cooled units.

  • Heavy Industry: Crane control, winches, and high-power pumps in mining and metals.

  • Marine Applications: Propulsion systems and thrusters where vibration and moisture resistance are required.

  • HVAC & Water: Large-scale fan and pump control in municipal water treatment plants.
