RETA-01 ABB Ethernet Adapter Module
RETA-01 ABB Ethernet Adapter Module - Image 2

RETA-01 ABB Ethernet Adapter Module ABB

Brand： ABB

Model number：RETA-01

Colour：new                                    Warranty: 12 months

Lead Time：3-day working day   Country of origin: USA

Price: Please contact us         Product weight：0.5kg

Get a Quote
Category: Brand:

Description

RETA-01 ABB Ethernet Adapter Module

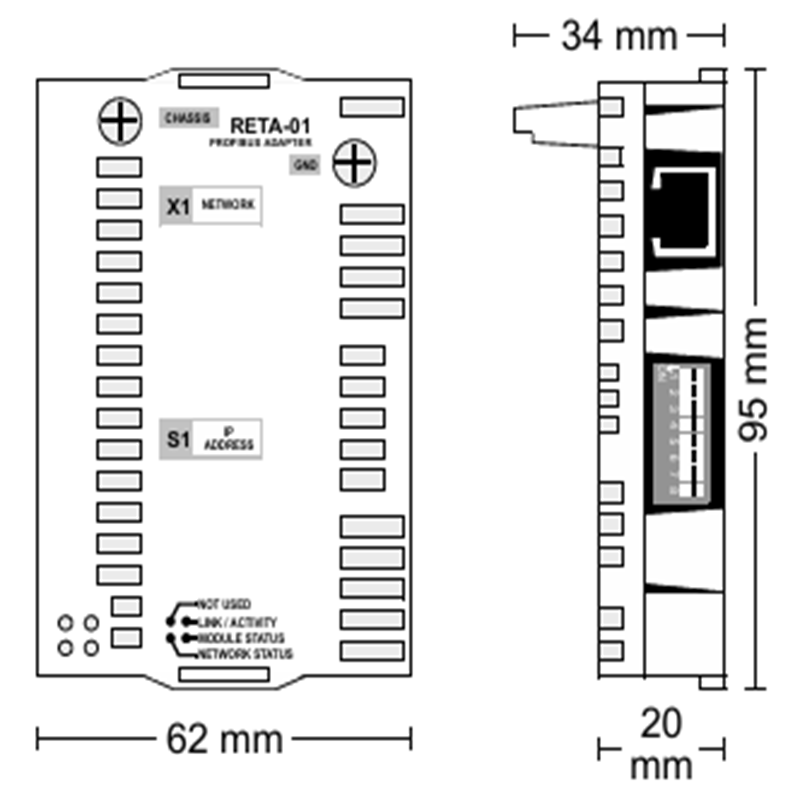

Product Dimensions：

The ABB RETA-01 is a EtherNet/IP Adapter Module designed for ABB industrial drives. It enables the drives to communicate over an EtherNet/IP network, allowing integration into modern Ethernet-based industrial control systems. This module enables the drive to act as a slave (adapter) in an EtherNet/IP system, supporting both cyclic (implicit) and acyclic (explicit) messaging.

Product Parameters

Parameter Value
Product Name RETA-01
Function EtherNet/IP Adapter Module
Communication Protocol EtherNet/IP (based on Common Industrial Protocol – CIP)
Network Speed 10/100 Mbps (auto-negotiation)
Connector Type RJ-45 (2 ports for daisy-chaining or ring topology)
Supported Drives ABB ACS800, ACS355, ACS550, ACS880, DCS880 series
IP Address Assignment DHCP, BOOTP, or manual configuration via parameter or web interface
Web Server Built-in for diagnostics and configuration
Indicators LED indicators for link, activity, module, and network status
Power Supply Supplied by the drive
Operating Temperature –10°C to +60°C
Storage Temperature –40°C to +70°C
Enclosure Protection IP20 (when installed inside the drive)
Certifications UL, CE, RoHS, ODVA (EtherNet/IP certified)

Product Advantages

  • High-speed Communication: Enables real-time control and monitoring via EtherNet/IP.

  • Dual-port Design: Supports line and ring topologies for flexible network configuration.

  • Web-based Diagnostics: Built-in web server provides easy access to device status and settings.

  • Plug-and-Play: Auto IP configuration via DHCP/BOOTP simplifies commissioning.

  • Compatibility: Works with a broad range of ABB drives, increasing usability and system standardization.

  • Robust Performance: Designed for industrial environments with support for critical protocols and diagnostics.

Precautions

  • Ensure proper IP configuration to avoid conflicts on the network.

  • Install and handle the module in an ESD-safe environment.

  • Network cabling must be shielded and correctly terminated to avoid communication issues.

  • Do not hot-plug the module; always power down the drive before installation or removal.

  • Firmware compatibility should be verified before use.

Applications

  • Factory Automation: For real-time control of motors and drives in EtherNet/IP-based systems.

  • Automotive Manufacturing: Integration of ABB drives into high-speed robotic and motion control systems.

  • Packaging Machinery: Networked control of multi-axis systems for synchronized operation.

  • Material Handling: Drive control for conveyors, hoists, and AGVs with centralized monitoring.

  • Process Industries: Used in chemical, food & beverage, and water treatment plants needing Ethernet integration.
