RXZE2S114M SCHNEIDER Relay socket

Description

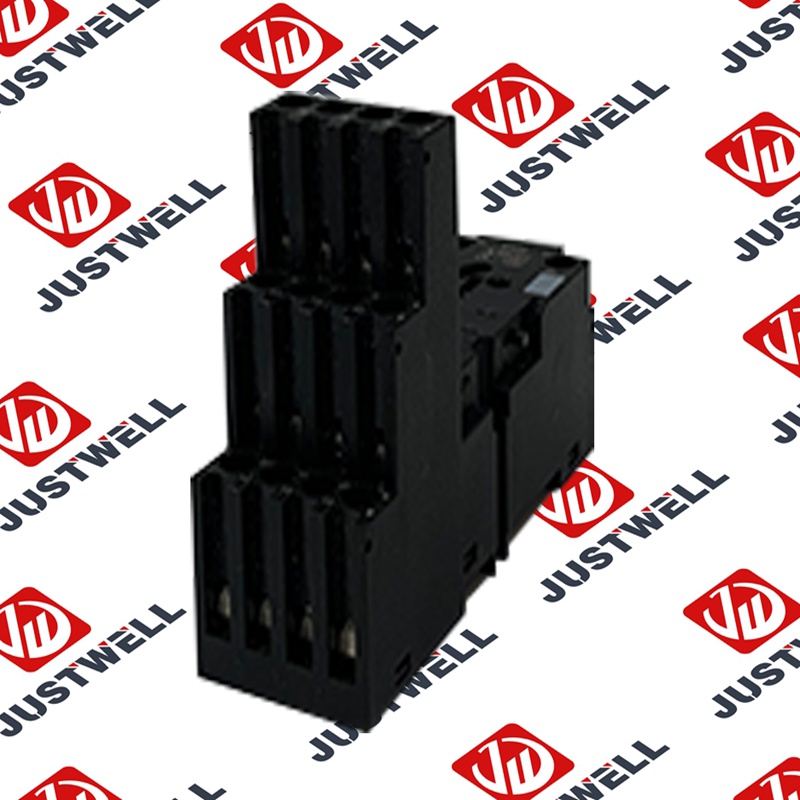

RXZE2S114M SCHNEIDER Relay socket

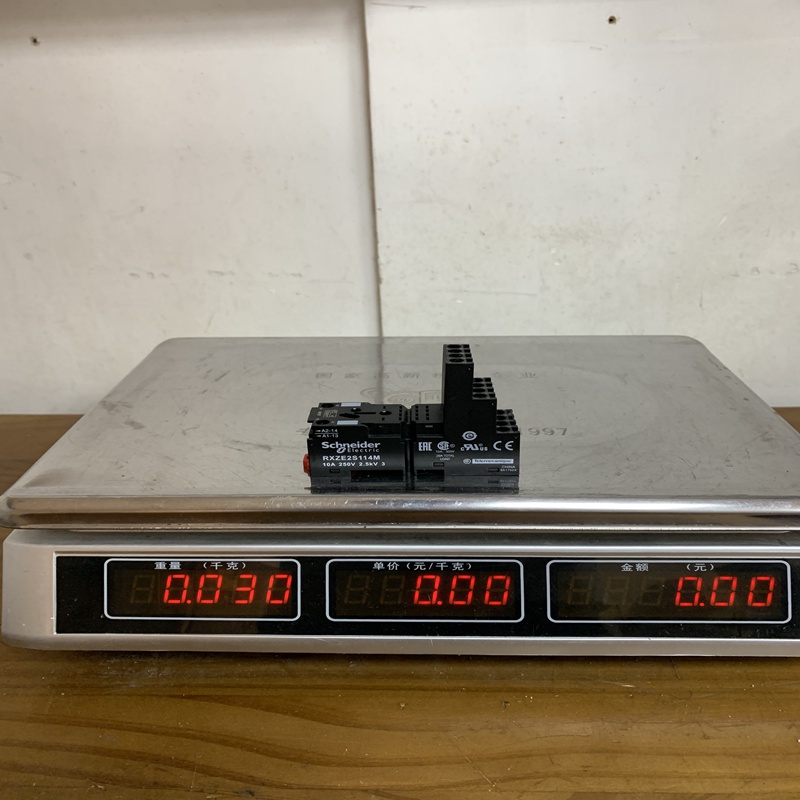

Product Dimensions：

Product Description

The Schneider Electric RXZE2S114M is a socket designed for use with Harmony Electromechanical Relays. It provides a secure and reliable connection point for plug-in relays, allowing for quick installation, replacement, and troubleshooting in industrial control panels.

Product Specifications

The RXZE2S114M is a 14-pin relay socket with screw terminals.

• Manufacturer: Schneider Electric
• Part Number: RXZE2S114M
• Product Type: Relay Socket
• Compatibility: Designed for use with RXM2 and RXM4 series plug-in relays (those with 4 changeover contacts, also known as 4PDT).
• Rated Operational Voltage: < 250 V AC (IEC) and < 300 V AC (UL).
• Conventional Free Air Thermal Current (Ith): 10 A.
• Number of Pins: 14 pins.
• Connections: Screw terminals. The socket can accept a wide range of wire sizes, from 0.34 to 2.5 mm² (AWG 22 to AWG 14), with or without cable ends.
• Mounting: It can be mounted in two ways:
  • Clip-on to a 35 mm symmetrical DIN rail.
  • By screw to a panel.
• Dimensions: Approximately 27 mm wide.
• Ingress Protection (IP) Rating: IP20, which provides protection against solid objects larger than 12 mm, but no protection against water.

Product Advantages

• Space-Saving Design: The compact design helps to reduce the overall size of electrical enclosures and control panels, which is a key advantage for modern industrial systems where space is at a premium.
• Flexible Installation: The ability to mount the socket on a DIN rail or directly to a panel provides flexibility for different panel layouts and applications.
• Secure and Reliable Connections: The screw terminals ensure a strong, reliable electrical connection. This reduces the risk of intermittent faults and ensures the longevity of the control system.
• Easy Maintenance: Using a plug-in socket makes it incredibly easy to replace a faulty relay. You simply unplug the old relay and plug in a new one without needing to rewire any of the connections, minimizing downtime.
• Wide Compatibility: As part of the Harmony series, this socket is designed to work seamlessly with a popular and widely available range of Schneider Electric relays.

Precautions

• Relay Compatibility: This socket is specifically designed for RXM2 and RXM4 relays with 4 changeover contacts. Using an incompatible relay could result in poor connection or damage to the components.
• Proper Mounting: The socket is rated at IP20, so it must be installed inside an enclosure to protect it from dust, moisture, and other environmental factors that could cause a short circuit or component failure.
• Correct Wiring: Ensure that the wiring is done by a qualified professional according to all local and national electrical codes. The wire stripping length should be 8 mm, and the tightening torque for the screws should not exceed 1 N.m to prevent damage to the terminals.

Product Applications

The RXZE2S114M socket is a fundamental component in industrial automation and control systems.

• General Purpose Control: It’s used in a vast array of applications for general-purpose switching, such as turning on and off lights, motors, and other equipment based on control signals from a PLC or other device.
• Panel Building: A common sight in electrical control panels, where it provides a centralized and organized way to manage multiple control relays.
• Automation Systems: Used in machinery and automation lines to interface between low-power control signals and higher-power loads, or to create logic circuits for sequencing operations.
• HVAC Systems: Employed in HVAC control panels for switching fans, pumps, and compressors.
