S464G1007 Honeywell Addressable Manual Pull Station

Description

S464G1007 Honeywell Addressable Manual Pull Station

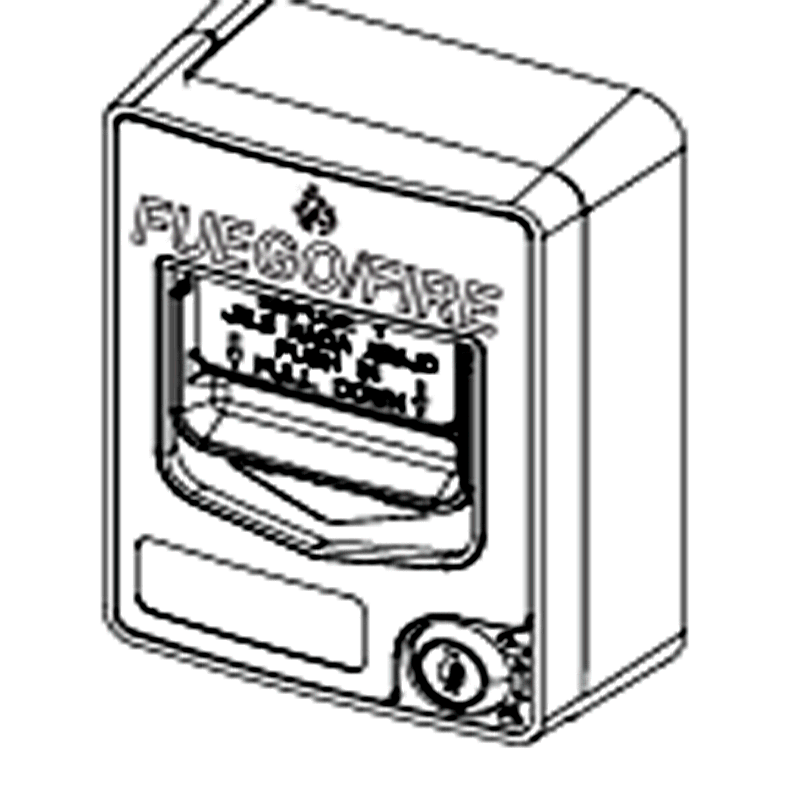

Product Dimensions：

Product Description

The Honeywell S464G1007 is a dual-action, addressable manual pull station. It’s a key safety device in fire alarm systems, designed to be manually activated by occupants to signal a fire. The “addressable” feature means it includes an interface that allows a compatible fire alarm control panel to identify the exact location of the activated pull station, which helps fire personnel respond more quickly and effectively.

Product Parameters

• Model Number: S464G1007
• Product Type: Addressable Manual Pull Station
• Operation: Dual-action (requires two motions: “push in” and “pull down”) for reduced false alarms.
• Compatibility: Compatible with Honeywell’s intelligent fire alarm control panels using CLIP or FlashScan® protocols.
• Output: The station sends an alarm signal to the control panel.
• Reset Method: Key reset.
• Status Indicator: Features a built-in bicolor LED that blinks green to show normal operation on FlashScan systems and turns red when activated.
• Construction: Molded from durable polycarbonate material with a textured finish.
• Mounting: Can be semi-flush mounted to a standard single-gang, double-gang, or 4-inch square electrical box, or surface mounted with an optional backbox.
• Operating Voltage: 24 VDC.
• Temperature Range: 32°F to 120°F (0°C to 49°C).

Product Advantages

• Accurate Location Identification: The addressable nature of the pull station allows the fire alarm control panel to display its precise location, significantly improving response times for emergency personnel.
• False Alarm Prevention: The dual-action design, which requires a specific “push in” and “pull down” motion, helps prevent accidental activation and false alarms.
• Easy Maintenance: Maintenance personnel can inspect the station and set its address with rotary switches without causing an alarm condition. The key reset feature also simplifies the process of returning the station to its normal state after an alarm.
• ADA Compliance: The S464G1007 meets ADAAG (Americans with Disabilities Act Accessibility Guidelines) for controls and operating mechanisms, ensuring it is accessible to people with disabilities.
• Durable Construction: Made from durable polycarbonate, the station is built to be long-lasting and resistant to damage in various indoor environments.

Precautions

• Discontinued Status: It’s important to note that this product may be discontinued by the manufacturer. While still available from various distributors, it’s wise to consider newer models for new installations or to verify long-term product support.
• System Compatibility: This pull station is designed to work with specific Honeywell intelligent fire alarm control panels. Ensure your control panel is compatible with CLIP or FlashScan® protocols to ensure proper functionality.
• Professional Installation: Installation and wiring should be performed by a qualified fire alarm technician in compliance with all local and national fire and electrical codes.
• Proper Mounting: Use the correct mounting method and hardware. Improper mounting can compromise the device’s function and its ability to meet safety standards.

Product Applications

The Honeywell S464G1007 is a standard component in commercial and public buildings for fire safety. Its primary applications include:

• Commercial Buildings: Offices, retail stores, and warehouses.
• Educational Facilities: Schools, universities, and libraries.
• Healthcare Facilities: Hospitals, clinics, and assisted living centers.
• Residential Buildings: Multi-unit residential buildings and high-rises.
• Public Venues: Theaters, museums, and sports arenas.
