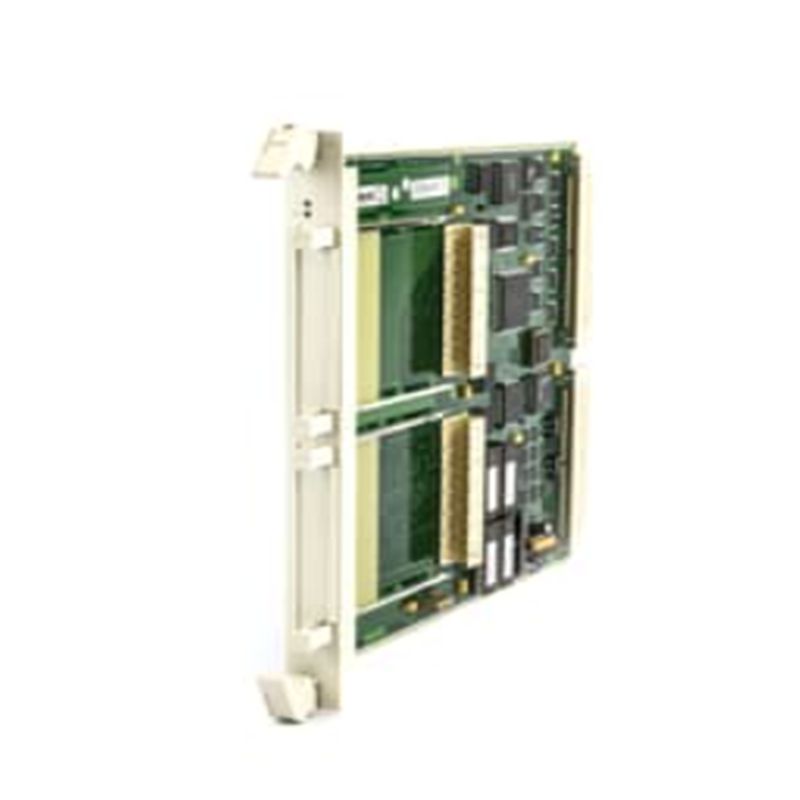

SC530 ABB Submodule Carrier incl
SC530 ABB Submodule Carrier incl - Image 2

SC530 ABB Submodule Carrier incl ABB

Brand： ABB

Model number：SC530

Colour：new                                    Warranty: 12 months

Lead Time：3-day working day   Country of origin: USA

Price: Please contact us         Product weight：0.5kg

Get a Quote
Category: Brand:

Description

SC530 ABB Submodule Carrier incl

Product Dimensions：

The ABB SC530 is a pulse encoder interface module used in ABB drive systems. It provides an interface between ABB drives (typically from the ACS600 or ACS800 series) and external incremental pulse encoders. This allows for precise speed and position feedback, enabling applications that require closed-loop control, such as positioning or synchronization.

Technical Specifications

Parameter Details
Product Type Encoder Interface Module
Model SC530
Compatible Drives ABB ACS600, ACS800 series
Encoder Type Supported Incremental encoder (TTL, RS-422 standard)
Maximum Input Frequency Typically up to 300 kHz (depending on encoder and cable length)
Encoder Signals Channels A, B, and Z (index pulse)
Input Voltage 5 V DC (from drive to encoder)
Connector Type Screw terminals or dedicated encoder connectors
Mounting Installed within the drive control unit
Power Supply Powered directly by the drive system
Status Indicators Diagnostic LEDs for signal detection and fault identification
Operating Temperature –10°C to +55°C
Storage Temperature –40°C to +70°C
Protection Class IP20 (when mounted inside the drive)

Product Advantages

  • Accurate Speed and Position Feedback: Enables precise motor control through closed-loop regulation.

  • Wide Compatibility: Supports various incremental encoders with standard signal types.

  • Integrated Diagnostics: LED indicators simplify troubleshooting and encoder signal verification.

  • Compact Integration: Mounts directly in the drive, minimizing space and wiring complexity.

  • Enhanced Performance: Improves drive response and stability in dynamic applications.

Precautions

  • Use shielded encoder cables to prevent signal interference.

  • Confirm encoder compatibility with TTL signal levels and frequency limits.

  • Avoid hot-plugging the encoder or module.

  • Ensure proper grounding of the encoder shield to reduce EMI.

  • Firmware or parameter settings in the drive must match the encoder configuration.

Applications

  • CNC Machines: Precision speed and position control in lathes and milling systems.

  • Hoisting and Cranes: Accurate motion control for lifting mechanisms.

  • Conveyor Systems: Speed synchronization and position tracking for material handling.

  • Textile and Paper Machines: Feedback control for tension and alignment.

  • Robotics and Automation: Enables accurate servo control for robotic arms and pick-and-place systems.
