SCXI-1000 National Instruments Current input module

Description

SCXI-1000 National Instruments Current input module

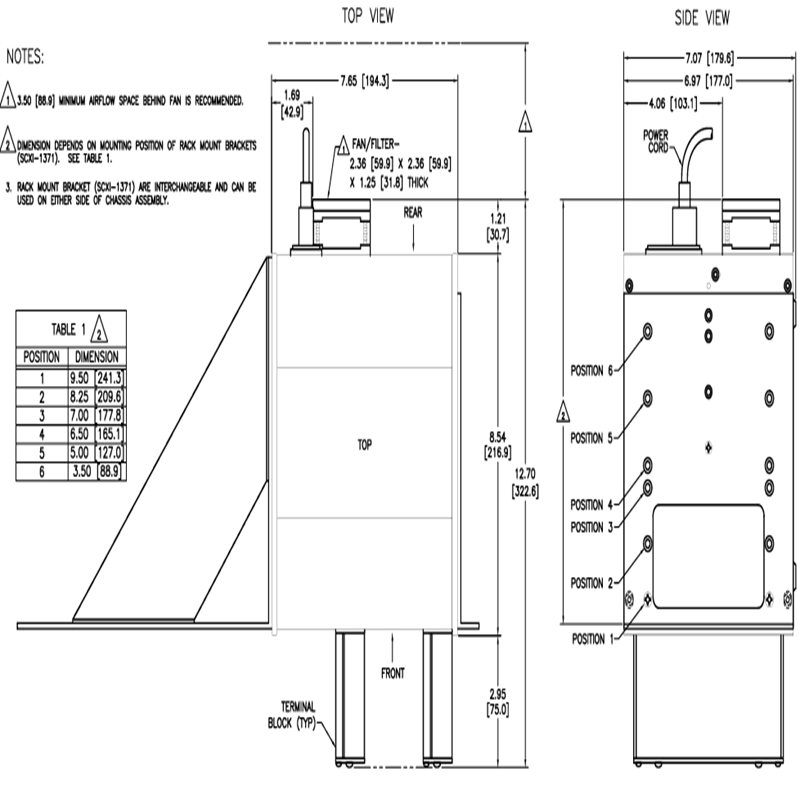

Product Dimensions：

Product Description

The NI SCXI-1000 is a high-performance, four-slot chassis designed to house Signal Conditioning eXtensions for Instrumentation (SCXI) modules. It provides centralized power, timing, and communication for SCXI modules, enabling accurate and reliable signal conditioning for a wide range of data acquisition (DAQ) systems. The SCXI-1000 is ideal for applications requiring signal amplification, filtering, isolation, and multiplexing before the signals are digitized by DAQ devices.

Product Specifications

• • Powering SCXI Modules: It provides the necessary power to the modules you install.
  • Signal Routing: It handles the timing, triggering, and signal routing between the modules and a connected data acquisition (DAQ) device.
  • Daisy-Chaining: For systems with a higher channel count, you can “daisy-chain” up to eight SCXI-1000 chassis together with a single DAQ device.
  • Power Options: The SCXI-1000 is available in different versions to accommodate various power requirements, including AC and DC options, making it versatile for both desktop and portable applications.

  Product Advantages

  • Modularity and Flexibility: The SCXI system’s modular design allows you to mix and match different SCXI modules to create a custom signal conditioning solution for your specific application. This means you can easily expand or reconfigure your system as your needs change.
  • Low-Noise Environment: The chassis has a rugged, shielded construction that provides a low-noise environment, which is crucial for achieving high-quality, accurate measurements.
  • Scalability: With the ability to daisy-chain multiple chassis, the SCXI-1000 can scale to handle high-channel-count applications, making it suitable for large-scale test and measurement systems.
  • Software Integration: The SCXI system works seamlessly with NI’s powerful software, such as LabVIEW, which simplifies chassis configuration and provides a robust environment for data acquisition, analysis, and automation.

  Product Applications

  The NI SCXI-1000 and the larger SCXI system are widely used in a variety of industries for demanding measurement tasks, including:

  • Industrial Automation: Monitoring and control in industrial environments, such as the petrochemical sector.
  • Power Industry: Monitoring electrical systems to ensure reliable and safe operation.
  • Research and Development: Performing precise measurements for design validation and characterization of electronic components and circuits.
  • General Data Acquisition: A flexible platform for a wide range of scientific and engineering applications where signal conditioning is required.

  Precautions

  To ensure the longevity and proper function of your SCXI-1000 chassis and modules, keep the following precautions in mind:

  • Power and Safety: Always follow proper safety procedures, especially when dealing with hazardous voltages. The chassis is designed for indoor use, so avoid extreme environmental conditions.
  • Not Hot-Swappable: SCXI modules are not hot-swappable. You must power off and unplug the chassis before installing or removing any modules. Failing to do so can blow fuses or cause permanent damage to the chassis and modules.
  • ESD Precautions: Follow proper ESD (electrostatic discharge) precautions to avoid damaging the sensitive electronics inside the modules and chassis.
  • Refer to Documentation: Always consult the user manual and other documentation for specific installation, operation, and maintenance instructions
