SCXI-1349 National Instruments Hielded cable adapter

Description

SCXI-1349 National Instruments Hielded cable adapter

Product Dimensions：

Product Description

The NI SCXI-1349 is a shielded cable adapter designed to connect an NI SCXI signal conditioning system to a 68-pin E Series data acquisition (DAQ) device. It is an essential accessory for building a complete SCXI system, as it provides the physical connection and signal routing between the DAQ device and the SCXI chassis.

Product Specifications

The SCXI-1349 is a passive connectivity device, so its specifications are based on its physical and electrical characteristics.

• Type: Shielded Cable Adapter.

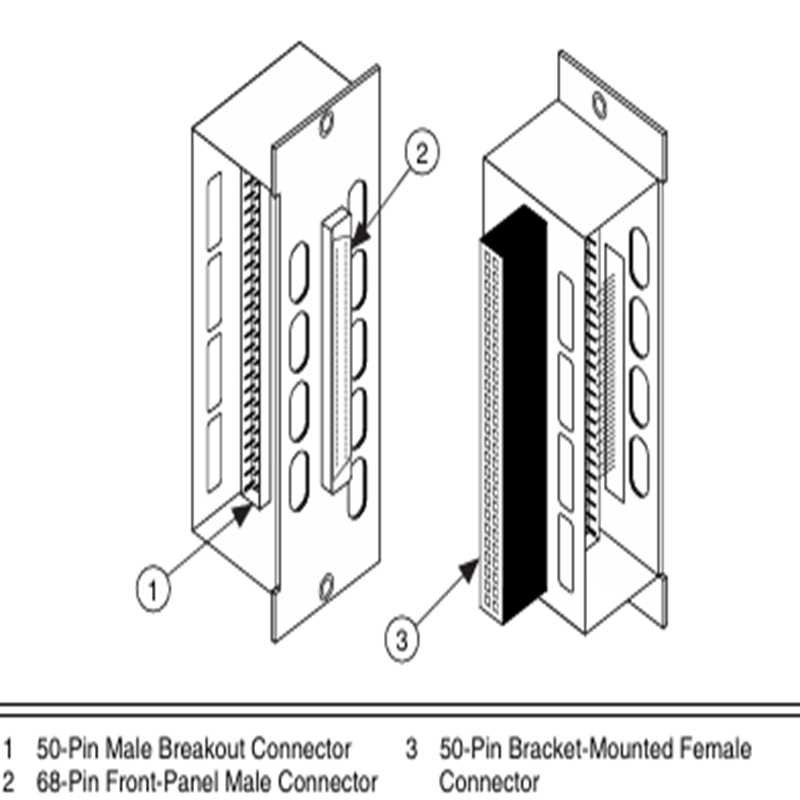

• Connectors:
  • A 68-pin male connector on the front panel, which connects to the cable from the DAQ device.
  • A 50-pin male breakout connector on the internal printed circuit board.
  • A 50-pin bracket-mounted female connector on the rear of the adapter.
• Working Voltage: The maximum working voltage is 30 Vrms, 42 Vpk, or 60 VDC (in signal-to-common mode).
• Compatibility: It is designed to work with any 68-pin E Series DAQ device (with the exception of 61XXE models) and any SCXI module (excluding SCXI switch modules). It requires an SCXI chassis, such as the SCXI-1000 or SCXI-1001.

Product Advantages

• System Integration: The main advantage of the SCXI-1349 is that it allows you to easily and reliably connect a DAQ device to an SCXI chassis, forming a complete measurement system. This simplifies the process of building a high-channel-count, signal-conditioned data acquisition setup.
• Signal Integrity: As a shielded cable adapter, it helps to maintain the quality of the signals being routed. The shielding protects against external electromagnetic interference (EMI), ensuring that your measurements are accurate and free from noise.
• Versatility: The adapter can be used with a wide range of SCXI modules, allowing you to use the same connectivity solution for different types of measurements, such as strain, temperature, and voltage.

Product Applications

The SCXI-1349 is used in any application that requires an SCXI signal conditioning system to be connected to a compatible DAQ device. These applications include:

• Industrial Automation: Connecting sensors and control signals in a noisy industrial environment where signal conditioning and noise immunity are critical.
• Research and Development: Building custom data acquisition systems for various experiments where different types of sensors need to be interfaced with a single DAQ device.
• Automated Test Systems: Integrating the SCXI system into an automated test setup to provide signal conditioning for various sensors on the unit under test.

Precautions

To ensure safe and reliable operation with the SCXI-1349, please follow these guidelines:

• Working Voltage: Do not exceed the maximum working voltage of 30 Vrms, 42 Vpk, or 60 VDC. Overloading the device can be a shock or fire hazard and can damage your hardware.
• ESD Precautions: Always follow proper electrostatic discharge (ESD) precautions when handling the adapter and other SCXI components to prevent damage to sensitive electronics.
• System Compatibility: Double-check that your specific DAQ device and SCXI modules are compatible with the SCXI-1349 before use.
• Proper Installation: Ensure that all cable and connector connections are secure and properly seated. Refer to the user manual for detailed installation instructions.
