SD823 ABB Power Supply Device

Description

SD823 ABB Power Supply Device

Product Dimensions：

Product Overview

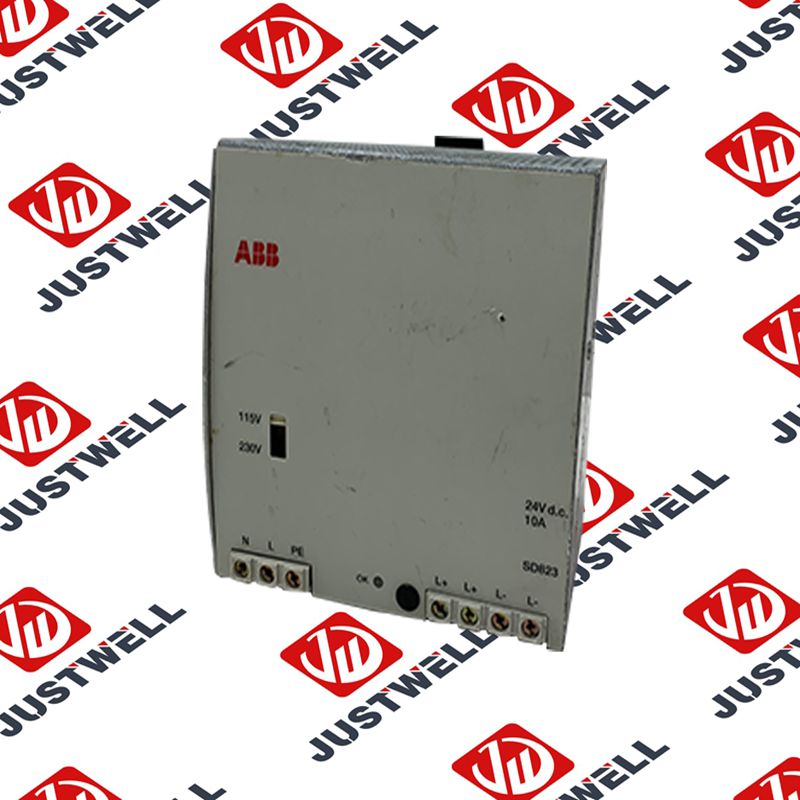

The ABB SD823 is a robust and compact AC-to-DC power supply module. It’s engineered to deliver a stable 24 V DC output from either a 115 V AC or 230 V AC input, which is selectable via a switch. This flexibility makes it suitable for a wide range of global power grids. The unit is designed for DIN rail mounting, allowing for easy and organized installation within control cabinets.

A key feature of the SD823 is its ability to support redundant power applications when connected to an SS822 Voting Unit. This capability significantly enhances the reliability and availability of the control system by ensuring that even if one power supply fails, the system continues to operate uninterrupted.

Product Parameters (Key Features & Specifications)

The specific parameters for the ABB SD823 (part number 3BSC610039R1) include:

• Product Type: AC-DC Power Supply Device
• Input Voltage: 115 / 230 V AC (switch selectable)

  Input Voltage Range: 85–132 V AC (115V setting), 176–264 V AC (230V setting)

• Input Frequency: 47–63 Hz
• Output Voltage: 24 V DC ± 3%
• Output Current: 10 A (maximum)
• Output Power: 240 W
• Number of Outputs: 1
• Efficiency: > 85% at full load
• Inrush Current: < 20 A at 230 V AC
• Hold-up Time: > 20 ms at 115/230 V AC
• Mounting Type: DIN rail mounted
• Dimensions (W x H x D): Approximately 120 mm x 125 mm x 103 mm (some sources cite slightly different depths/widths, typically around 60mm wide)
• Net Weight: Approximately 1.1 kg (some sources state 0.8 kg)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -25 to 70°C (-13 to 158°F)
• Relative Humidity: 5–95%, non-condensing
• Redundancy Support: Can be connected to an SS822 Voting Unit for redundant power applications.
• Protection: Protected against overcurrent (current limit) and overvoltage (OVP) on the output.
• Standards: Complies with relevant industrial standards for safety and electromagnetic compatibility (e.g., EMC Directive, Low Voltage Directive).

Product Advantages

• Reliable Power Output: Provides a stable and consistent 24 V DC power supply, crucial for the reliable operation of sensitive industrial control equipment.
• Input Voltage Versatility: The switch-selectable 115/230 V AC input makes it highly adaptable to different power grids worldwide, simplifying inventory and deployment.
• Support for Redundancy: The ability to be combined with an SS822 Voting Unit for redundant power configurations is a significant advantage, enhancing system availability and reducing downtime in critical applications.
• Robust Design: Built to withstand harsh industrial environments, ensuring long-term performance and durability.
• Compact and Space-Saving: Its DIN rail mountable design and relatively small footprint help save space within control cabinets.
• Easy Installation: Designed for straightforward installation on DIN rails, facilitating quick setup and maintenance.
• Integrated Protection: Features built-in overcurrent and overvoltage protection, safeguarding both the power supply and the connected equipment.
• High Efficiency: With over 85% efficiency, it minimizes energy waste and heat generation.

Precautions

• Input Voltage Selection: Always ensure the input voltage selector switch is correctly set to match the supplied AC voltage (115V or 230V) before powering up the unit. Incorrect setting can damage the device.
• Proper Wiring: Follow the wiring diagrams and instructions provided in the official ABB documentation meticulously. Incorrect wiring can lead to malfunction, damage, or safety hazards.
• Loading: Do not exceed the maximum output current of 10 A. Overloading can lead to reduced lifespan, overheating, and potential failure.
• Redundancy Configuration: When implementing redundant power, ensure proper connection to the SS822 Voting Unit as per ABB’s guidelines to achieve the intended reliability benefits.
• Environmental Conditions: Install the SD823 within its specified operating temperature and humidity ranges. Excessive heat or moisture can negatively impact its performance and lifespan.
• Ventilation: Ensure adequate ventilation around the power supply unit to prevent overheating, especially in enclosed cabinets.
• Safety Standards: Adhere to all local electrical codes and safety regulations during installation and operation. Only qualified personnel should perform installation and maintenance.
• Grounding: Ensure the unit is properly grounded (connected to Protective Earth, PE) as it is Class I equipment, which is essential for safety.

Product Applications

The ABB SD823 is primarily used in industrial automation and process control systems, serving as a reliable power source for:

• ABB AC 800M Controllers: Providing the necessary 24 V DC power for the main control processing units.
• ABB S800 I/O Modules: Powering the input/output modules that interface with field devices in a distributed control system (DCS) or PLC system.
• Distributed Control Systems (DCS): Essential for powering various components within larger DCS architectures, ensuring system stability.
• Programmable Logic Controllers (PLCs): Providing power for PLC CPUs, communication modules, and I/O cards in various industrial applications.
• Industrial Control Cabinets: Used in general industrial control panels and cabinets to provide stable 24 V DC power for a variety of control equipment.
• Critical Industrial Processes: In applications where high availability and reliability are paramount, such as power generation, oil and gas, chemical processing, and manufacturing.
• Building Automation and Infrastructure: Can be used in large-scale building management systems where robust and reliable low-voltage DC power is needed.
