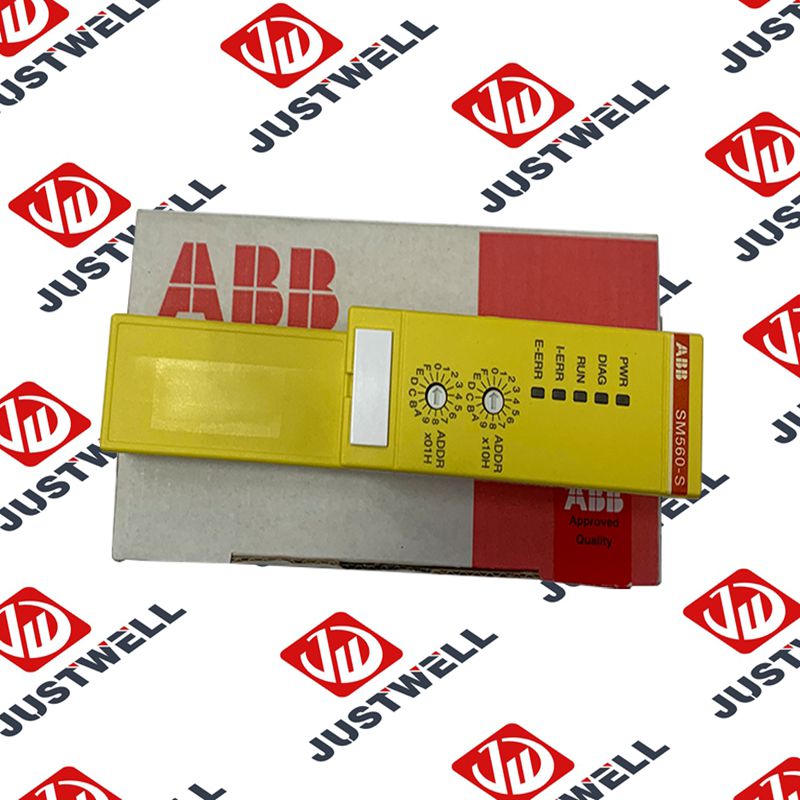

SM560-S ABB Safety processor module
SM560-S ABB Safety processor module - Image 2

SM560-S ABB Safety processor module ABB

Brand： ABB

Model number：SM560-S

Colour：new                                    Warranty: 12 months

Lead Time：3-day working day   Country of origin: USA

Price: Please contact us         Product weight：0.5kg

Get a Quote
Category: Brand:

Description

SM560-S ABB Safety processor module

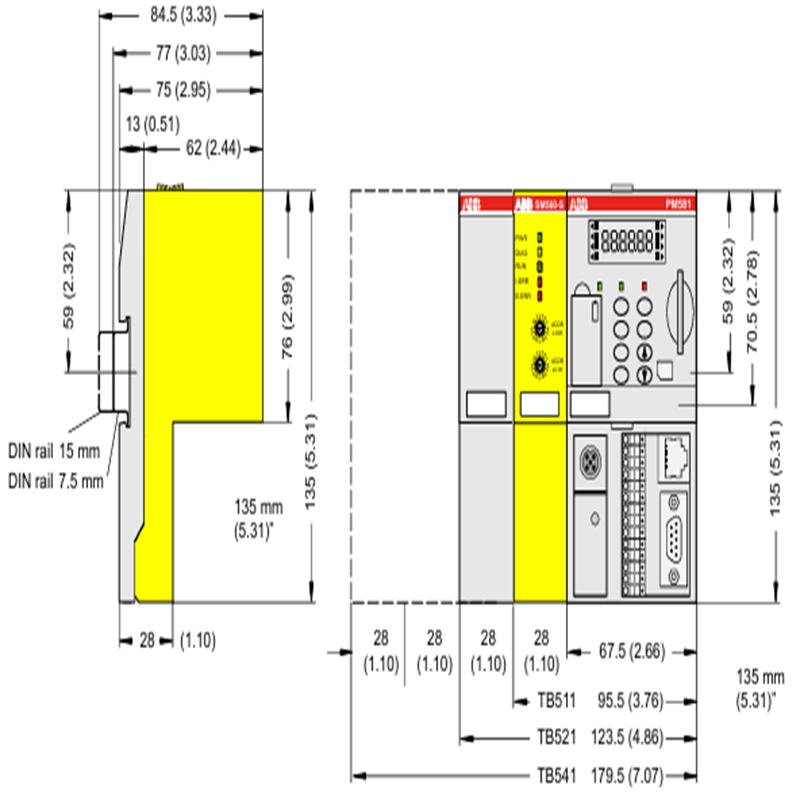

Product Dimensions：

The ABB SM560-S is a control and communication module used in ABB Freelance DCS (Distributed Control System) environments. It serves as a CPU and communication interface within the AC 900F controller family, offering high-performance processing and extensive communication capabilities. The SM560-S supports redundant operation, built-in communication ports, and versatile I/O configurations, making it ideal for complex and scalable automation systems.

Product Parameters

Parameter Details
Product Name SM560-S
System ABB Freelance DCS (AC 900F)
Function CPU module with integrated communication
Processor ARM-based high-speed CPU
Memory 64 MB RAM, 16 MB Flash memory
Communication Ports 2 × Ethernet (RJ45), 1 × USB, 1 × RS-232/485
Protocols Supported MODBUS RTU/TCP, OPC, PROFIBUS DP, Freelance protocol, and more
Redundancy Support Yes (CPU and communication redundancy)
I/O Support Supports S700 I/O modules and remote I/O via PROFIBUS
Cycle Time <1 ms (for small to medium applications)
Mounting DIN rail or panel mount
Power Supply 24 V DC
Operating Temperature –20°C to +60°C
Storage Temperature –40°C to +70°C
Protection Class IP20
Certifications CE, UL, cUL, RoHS, SIL compliant

Product Advantages

  • Integrated Control & Communication: Combines CPU and network capabilities in a single compact module.

  • Redundancy Ready: Supports system redundancy for critical industrial applications.

  • Flexible Communication: Multiple built-in ports and protocol support for seamless integration.

  • Fast Processing: Efficient for medium and large-scale control strategies with high reliability.

  • Engineering Integration: Easily configured using Freelance Engineering Tool (Control Builder F).

  • Robust & Scalable: Designed for both small and large DCS systems with future expandability.

Precautions

  • Ensure firmware compatibility with other Freelance components before integration.

  • Follow correct grounding and shielding procedures for communication ports.

  • Keep module within rated temperature range to avoid malfunction.

  • Always power down before installing or replacing modules.

  • Use certified and validated I/O modules and cables for stable performance.

Applications

  • Process Automation: Ideal for industries like oil & gas, chemical, water treatment, and power generation.

  • Chemical & Pharmaceutical Plants: For batch and continuous process control.

  • Energy Management Systems: Used in substation and utility control applications.

  • Infrastructure Automation: Applied in tunnel, airport, and smart building systems.

  • Food & Beverage: Real-time control for recipe handling and production monitoring.











Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
