TBX-50 National Instruments Interface module

Description

TBX-50 National Instruments Interface module

Product Dimensions：

Product Description

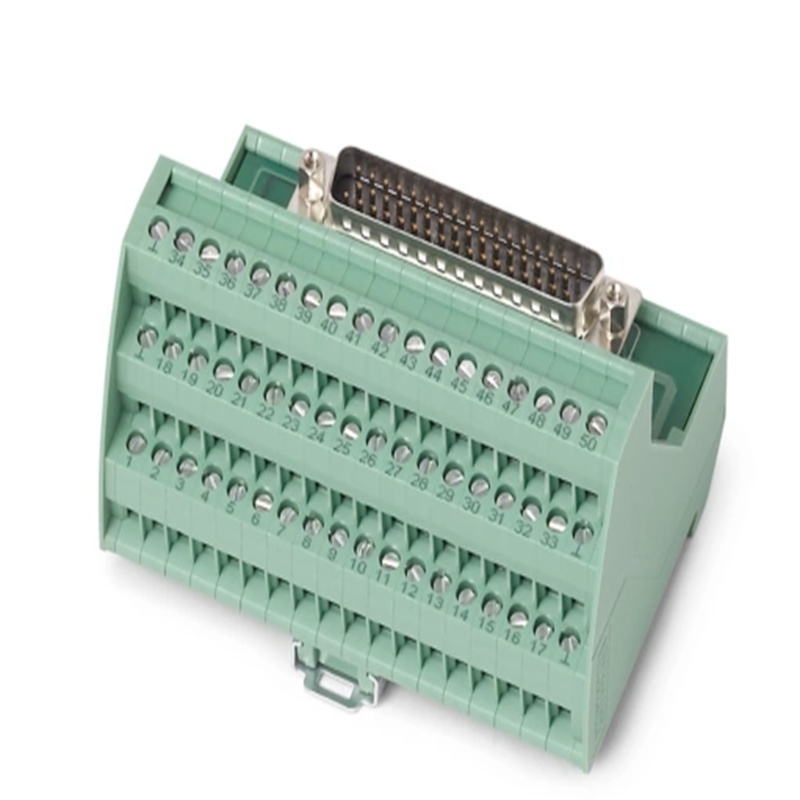

The NI TBX-50 is a 50-pin, male D-SUB screw terminal block designed to serve as a connection accessory for various NI data acquisition and switch modules. It is not a standalone electronic device but rather a breakout box that allows you to easily and securely connect individual signal wires to a supported NI module via a standard 50-pin D-SUB cable. The block is designed to be mounted on a DIN rail, making it simple to integrate into industrial enclosures or racks.

Product Specifications

• Connector Type: 50-pin male D-SUB
• Terminal Type: Screw terminals for easy wire connection
• Positions: 50
• Mounting Method: DIN rail
• Maximum Voltage: 125 V
• Maximum Current: 2.5 A
• Physical Features: Includes a probe socket and a shield connection

Product Advantages

The TBX-50 provides several key benefits for building and maintaining a test or measurement system:

• Simplified Wiring: The screw terminals on the breakout box make it straightforward to connect and disconnect individual signal wires. This is much more user-friendly and reliable than using soldering or other more complex connection methods.
• Streamlined System Integration: The DIN rail-mountable design allows for easy and secure installation inside industrial cabinets and enclosures, helping to create a neat and professional wiring setup.
• Robust and Reliable Connections: The screw terminals provide a strong, stable connection that is less prone to accidental disconnection, which is crucial for reliable test and measurement applications.
• Versatility: The TBX-50 can be used with various NI devices that feature a 50-pin D-SUB connector, such as certain switch modules, simplifying the process of building a custom interface.

Applications

The TBX-50 is used in any application where you need to connect external signals to an NI module that uses a 50-pin D-SUB connector. Common applications include:

• Automated Test Systems: Building custom wiring interfaces for switch modules and DAQ devices.
• Industrial Automation: Connecting sensors, actuators, and control signals to a central NI system.
• Panel-Building: Creating clean and organized wiring within electrical cabinets and control panels.
