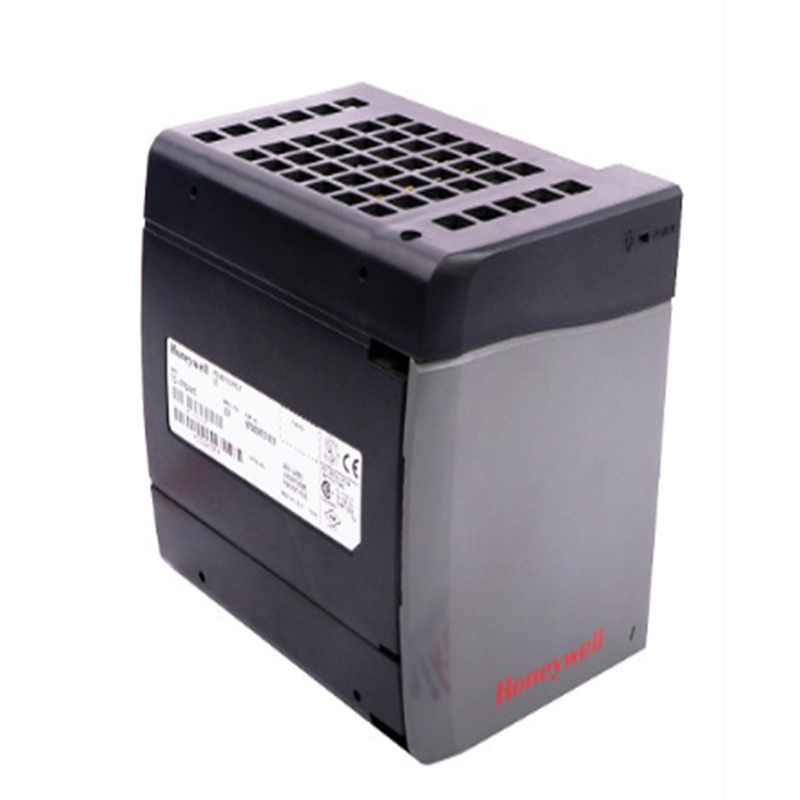

TC-FPDXX2 Honeywell DC Input Power Supply Module

The Honeywell TC-FPDXX2 is a DC Input Power Supply Module designed for the Experion LS Series-A chassis. Its primary function is to provide the necessary power to the various modules inserted into the chassis, ensuring the entire system operates reliably. This is a crucial component in industrial automation systems, providing stable and consistent power to all connected devices.

Product Parameters

• Model Name: TC-FPDXX2
• Product Type: Standard (non-redundant) Power Supply Module
• Input Voltage Range: 19.2–32 VDC
• Input Power: 100 W
• Total Power Output (Maximum): 70 W at 60°C
• Output Currents (Backplane):
  • 1.5 A @ 1.2 V
  • 4 A @ 3.3 V
  • 10 A @ 5.1 V
  • 2.8 A @ 24.0 V
• Fuse Protection: A non-replaceable fuse is soldered in place to guard against short circuits.
• Dimensions (L x D x H): 11.2 x 14.5 x 14.0 cm
• Weight: Approximately 1.1 kg
• Location: Mounts on the left side of the chassis without consuming a slot.

Product Advantages

• Reliable Power Delivery: The TC-FPDXX2 provides stable and conditioned power to all modules in the chassis, which is essential for the reliable operation of control systems.
• Robust Design: Built for industrial environments, the module has a solid construction and is designed to handle demanding conditions.
• Efficient Power Management: It efficiently distributes various voltage levels (1.2V, 3.3V, 5.1V, and 24V) to different modules within the chassis from a single DC source.
• Space-Saving: The module’s design allows it to be mounted on the side of the chassis, so it doesn’t take up a valuable I/O slot.

Precautions

• Input Voltage: Ensure the input DC voltage is within the specified range of 19.2–32 VDC. Incorrect voltage can damage the power supply and other modules.
• Power Consumption: Always ensure that the total power consumption of all modules in the chassis does not exceed the power supply’s maximum output of 70 W at 60°C.
• Fuse Protection: The fuse is a non-replaceable, soldered component. Any internal short circuit that causes the fuse to blow will require a replacement of the entire module.
• Wiring: Use the recommended wiring size (#14 AWG) and follow the manufacturer’s installation instructions to ensure a safe and reliable electrical connection.

Product Applications

The Honeywell TC-FPDXX2 is used as a foundational component in industrial automation systems that rely on the Experion LS platform. Its applications are crucial for the operation of:

• Process Control Systems: Providing power to I/O modules, controllers, and communication cards in systems for chemical plants, refineries, and other process industries.
• Manufacturing Automation: Powering the control systems for machinery, robotics, and assembly lines.
• Critical Infrastructure: Ensuring the reliable operation of control systems in power generation, water treatment, and other essential services.
• Building Automation: Powering controllers and modules in large-scale building management systems.
