TC512V1 3BSE018059R1 ABB Power module

Description

TC512V1 3BSE018059R1 ABB Power module

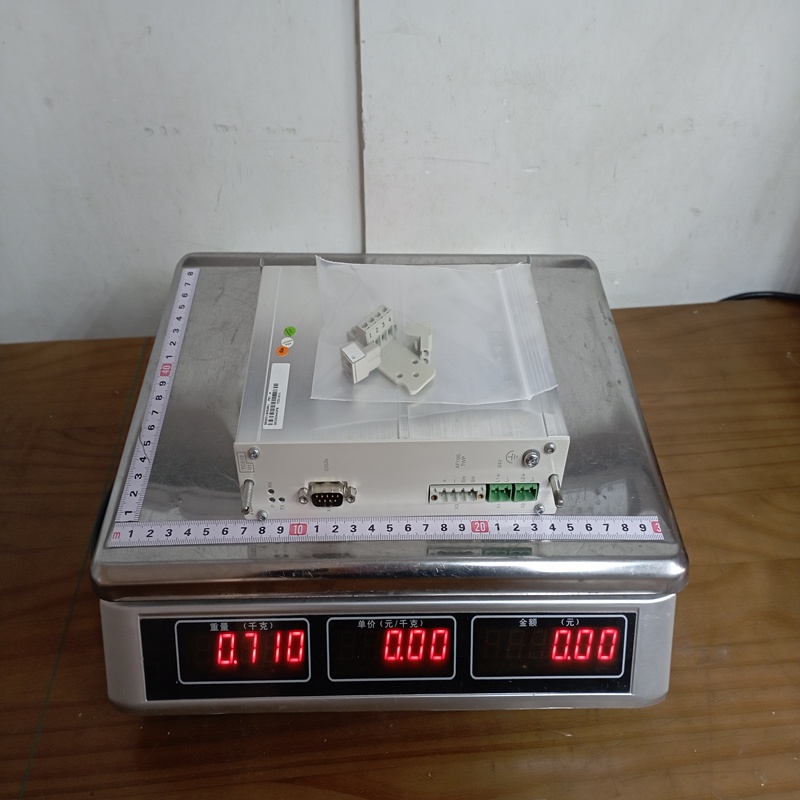

Product Dimensions：

Product Description

The ABB TC512V1 (3BSE018059R1) is a specialized communication interface module, specifically an RS-485 Twisted Pair Modem, designed for the Advant Controller 400 (AC400) series and other ABB Master industrial automation systems. It facilitates reliable, long-distance data exchange between controllers and peripheral devices.

Product Parameters

The TC512V1 is engineered for robust industrial communication. Below are the core technical parameters:

Product Advantages

• High Interference Immunity: Built to operate in electrically noisy environments (EMI/RFI), ensuring data integrity near heavy machinery.

• Long-Distance Reach: Enables communication over distances much greater than standard RS-232, often extending up to 1200 meters.

• Galvanic Isolation: Protects the sensitive internal electronics of the PLC/Controller from voltage spikes on the communication line.

• Plug-and-Play Integration: Specifically designed for the ABB Advant OCS system, ensuring seamless software integration and hardware fit.

Product Applications

The TC512V1 is primarily used in large-scale industrial control systems where distributed I/O or multi-controller networking is required:

• Remote I/O Linking: Connecting a central Advant Controller to remote I/O stations across a factory floor.

• Subsystem Integration: Interfacing the main DCS (Distributed Control System) with third-party devices like VFDs (Variable Frequency Drives) or power meters that support RS-485.

• Legacy System Expansion: Maintaining or expanding existing ABB MasterPiece or Advant 400 systems.

Important Considerations

• Termination Resistors: RS-485 networks require proper termination (typically $120\Omega$ resistors) at both ends of the cable to prevent signal reflection. Ensure the TC512V1 is correctly terminated if it is at the end of the line.

• Polarity Matters: Unlike some modern protocols, RS-485 is polarity sensitive. Ensure the ‘A’ and ‘B’ lines are not swapped during installation.

• Hot-Swapping: Always check the specific subrack manual before removing the module. While many ABB modules are robust, it is safest to power down the subrack or ensure the bus is idle before replacement.

• Shielding: Use high-quality shielded twisted pair cables and ensure the shield is grounded at one point only to avoid ground loops.

Maintenance and Troubleshooting

• LED Indicators: Check the module faceplate for “Run” or “Error” LEDs to diagnose communication faults quickly.

• Dust & Environment: Ensure the module is installed in an IP20 (or higher) rated cabinet to prevent conductive dust from causing short circuits on the PCB.
