TH8110R1008/U Honeywell Programmable controller modules

The Honeywell TH8110R1008/U is a VisionPRO® 8000 single-stage programmable thermostat with RedLINK® wireless technology. It is designed for both residential and light commercial use, offering a user-friendly touchscreen interface for controlling your heating and cooling systems. The thermostat’s key feature is its ability to communicate wirelessly with a range of RedLINK accessories, allowing for expanded functionality and remote management.

Product Parameters

• Model Name: VisionPRO® 8000 with RedLINK®
• Part Number: TH8110R1008/U
• Thermostat Type: 7-Day Programmable, Touchscreen
• Compatibility: 1 Heat/1 Cool conventional systems, and 1 Heat/1 Cool heat pump systems.
• Power Source: Dual-powered; can be hardwired (C-wire) or use batteries.
• Voltage Rating: 18-30 VAC or 750 mV.
• Display: Large, 10-square-inch touchscreen with on-screen guided help.
• Wireless Communication: RedLINK®

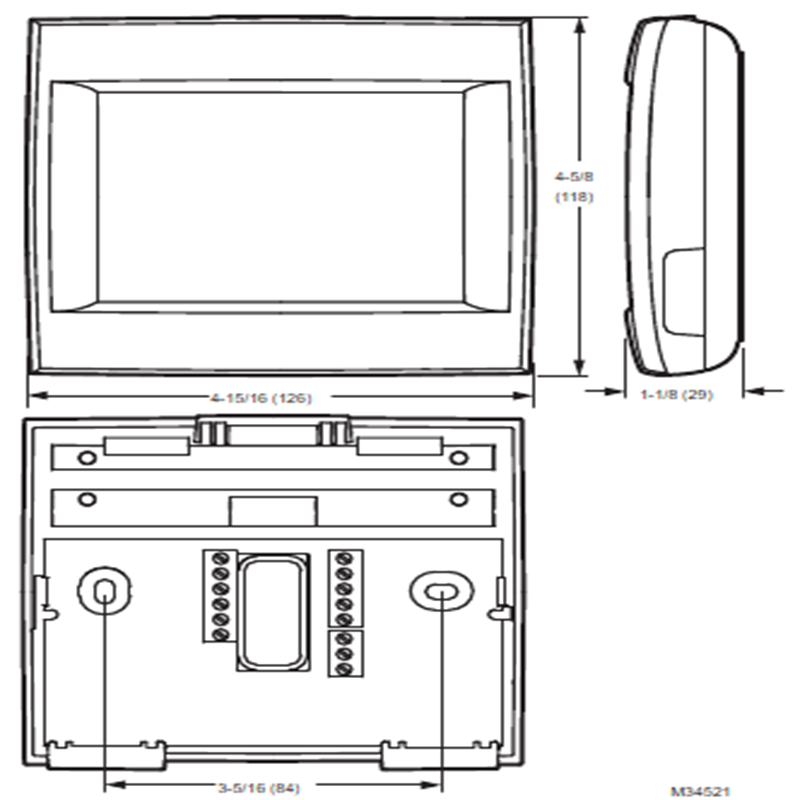

• Dimensions: 4-15/16 in. (W) x 4-5/8 in. (H) x 1-1/8 in. (D).
• Temperature Range: Heat: 40° to 90°F (4.5° to 32°C); Cool: 50° to 99°F (10° to 37°C).

Product Advantages

• Wireless Flexibility: The built-in RedLINK wireless technology allows for seamless integration with optional accessories like a wireless outdoor sensor or an internet gateway, enabling remote control and system expansion without running new wires.
• User-Friendly Interface: The large touchscreen and guided on-screen help make programming and daily adjustments simple, eliminating the need to constantly refer to a manual.
• Energy Efficiency: Features like a 7-day programmable schedule, a “Smart Schedule” that self-programs based on your preferences, and “Adaptive Intelligent Recovery” help reduce energy costs by optimizing system run times.
• Versatility: It can be used in both residential homes and light commercial settings, and it’s compatible with a variety of HVAC systems, making it a flexible solution for different applications.
• Installer-Friendly: The thermostat includes a microSD card port, which allows installers to quickly set up multiple thermostats by copying configuration settings.

Precautions

• Wiring: While it can be powered by batteries, a C-wire (common wire) is required for the RedLINK wireless features to function with accessories.
• Professional Installation: For proper and safe operation, installation and configuration should be done by a qualified HVAC technician.
• System Compatibility: Confirm that the thermostat’s staging (1 Heat/1 Cool) is compatible with your specific HVAC system. Complex multi-stage systems may require a different model or an Equipment Interface Module (EIM).

Product Applications

The Honeywell TH8110R1008/U is an excellent choice for a wide range of HVAC control needs, including:

• Residential Homes: Providing a modern, efficient, and user-friendly thermostat for single-stage heating and cooling systems.
• Light Commercial Spaces: Controlling comfort and schedules in small offices, retail shops, and other commercial environments.
• Remote Management: When paired with a RedLINK Internet Gateway, users can monitor and adjust their home or business’s temperature from a smartphone or tablet.
• Advanced Systems: It can be used as part of a zoned system or with other RedLINK accessories for enhanced control over indoor air quality and more.
