TU515 C0 1SAP212200R0001 ABB Controller module

Description

TU515 C0 1SAP212200R0001 ABB Controller module

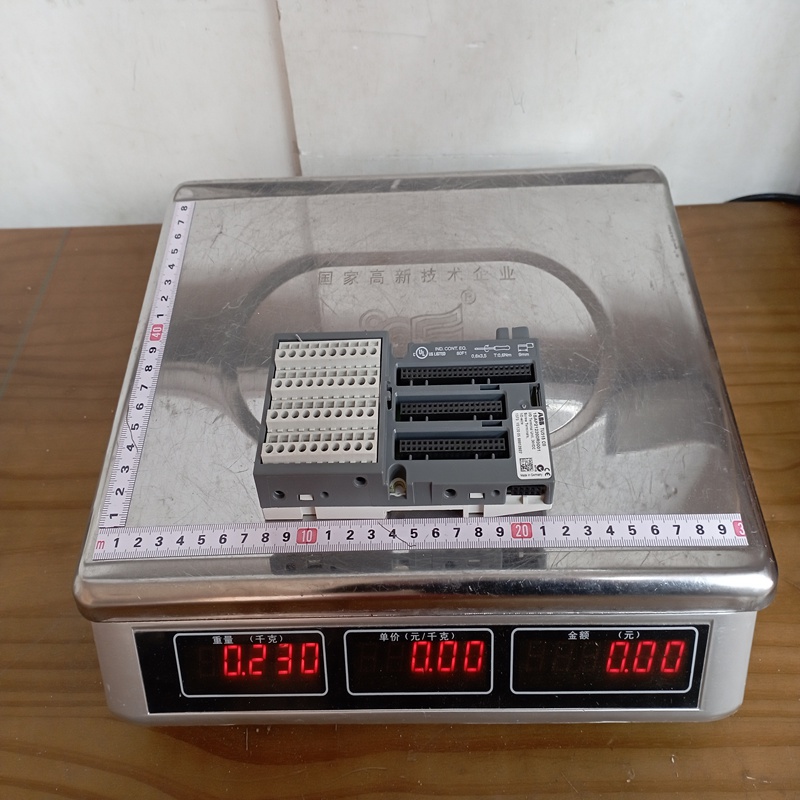

Product Dimensions：

Product Description

The TU515 is a Terminal Unit that allows for the mounting of I/O modules onto a DIN rail. It provides the electrical interface between the I/O module and the internal bus (I/O-Bus), as well as the terminal points for field wiring. The “C0” designation typically refers to the coating or specific revision level of the unit.

Product Parameters

Key Advantages

• Modular Maintenance: Allows I/O modules to be replaced without disconnecting any field wiring, significantly reducing downtime during repairs.

• Secure Connection: The screw terminals provide a high-vibration-resistant connection, ideal for heavy industrial environments.

• Safety Isolation: Designed to provide proper electrical isolation between field circuits and the internal PLC logic.

• Clear Labeling: Features dedicated spaces for channel identification markers, improving organization within the electrical cabinet.

Usage Precautions (Important)

• Correct Seating: Ensure the I/O module is fully “clicked” into the TU515. A loose connection can cause intermittent I/O-Bus errors.

• Tightening Torque: Do not overtighten the screws. Use the manufacturer-recommended torque (typically 0.5 Nm) to avoid stripping the threads or damaging the internal PCB.

• No Hot-Swapping: Generally, the power should be turned off before removing or inserting modules into the terminal unit to prevent electrical arcs or logic glitches.

• Wiring Clearance: Maintain sufficient space between high-voltage and low-voltage wiring within the terminal unit to prevent electromagnetic interference (EMI).

Product Applications

The TU515 is used as the base for almost any S500 series I/O module in applications such as:

1. Distributed I/O Stations: Connecting remote sensors to a main PLC via Profibus, Profinet, or EtherCAT.

2. Machine Control: Centralized control cabinets for CNC machines or assembly lines.

3. Process Industries: Base units for analog input modules monitoring temperature, pressure, and flow in chemical or oil & gas plants.
