VIA1003C02A0000 SCHHEIDER Output module

Description

VIA1003C02A0000 SCHHEIDER Output module

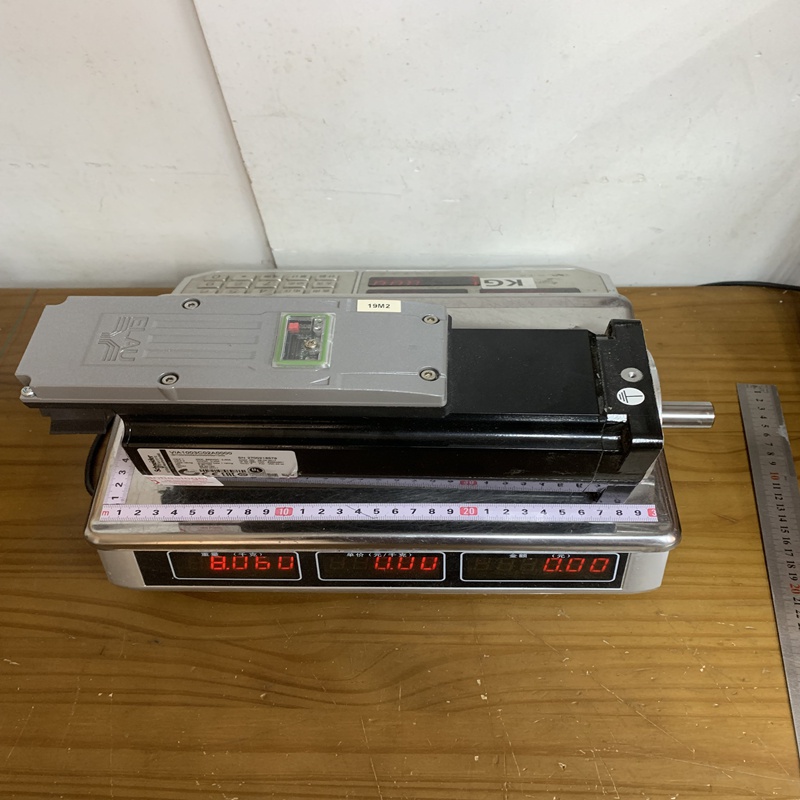

Product Dimensions：

Product Description

The VIA1003C02A0000 is a Lexium 62 connection module used to bridge the DC bus and control signals between a central Lexium 62 Power Supply and distributed drive components (such as the ILM62 integrated servo motors). It facilitates the “daisy-chain” topology of the PacDrive 3 system, allowing for a decentralized machine architecture that significantly reduces wiring complexity in large-scale machinery.

Product Parameters

Product Advantages

• Cabling Reduction: By using hybrid cables that combine power, 24V, and Sercos III communication, it reduces cable volume in the machine by up to 70%.

• Plug-and-Play: Features quick-connect technology that minimizes assembly time and reduces the risk of wiring errors.

• Compact Footprint: The slim design allows for multiple modules to be mounted side-by-side on a DIN rail without wasting cabinet space.

• High Performance: Fully compatible with the Sercos III protocol, ensuring sub-millisecond synchronization for multi-axis motion control.

• Diagnostics: Integrated LEDs provide immediate status updates for the DC bus voltage and communication state.

Important Considerations & Precautions

• DC Bus Safety: After powering off, wait at least 15 minutes for the DC bus capacitors to discharge to a safe voltage (< 42V) before touching any terminals.

• Hybrid Cable Limits: Ensure the total length of the hybrid cable string does not exceed the maximum limits specified in the Schneider PacDrive 3 design manual to avoid voltage drops.

• Shielding: Proper grounding of the hybrid cable shields is mandatory to prevent electromagnetic interference (EMI) from disrupting the Sercos communication.

• Firmware Sync: The connection module itself is passive/semi-active, but the connected drives must have firmware versions compatible with the PacDrive LMC controller.

Typical Applications

This module is a core component in high-performance decentralized automation:

• Food & Beverage Packaging: Coordinating dozens of distributed servo motors on long conveyor lines or bottling machines.

• Pharmaceutical Equipment: Precision blister packaging and labeling where clean, minimal wiring is required.

• Material Handling: Large-scale sorting systems that require drives to be spread out over a wide area.

• Printing and Converting: Managing high-speed rollers and tension control systems.
