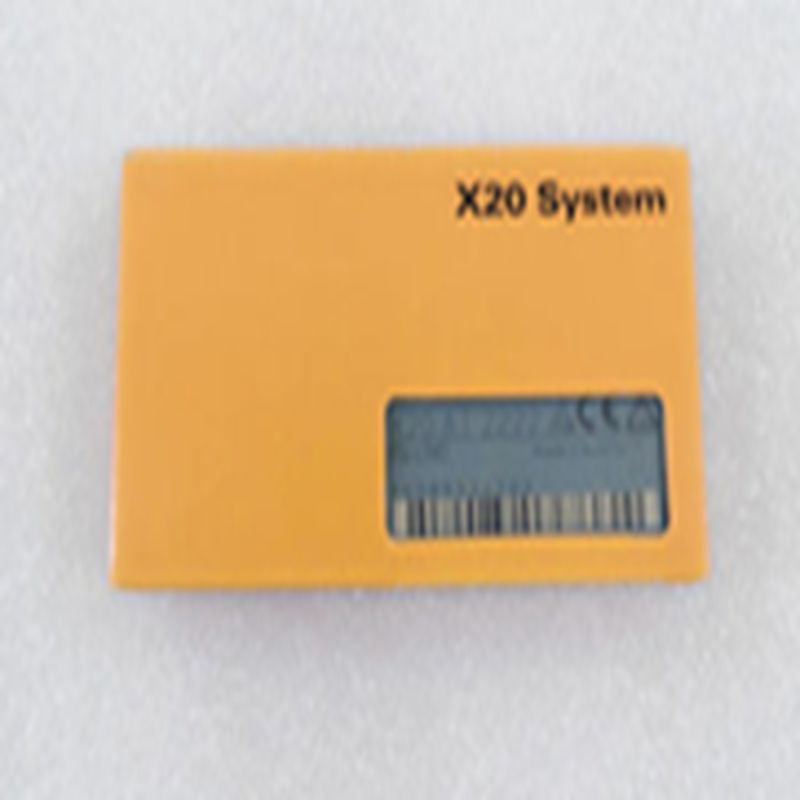

X20AI1744 B&R Analog Input Module

Description

X20AI1744 B&R Analog Input Module

Product Dimensions：

Product Description

The B&R X20AI1744 is a specialized analog input module within B&R’s X20 I/O system. This module is specifically designed to handle a single full-bridge strain gauge input. It’s a high-precision component that provides a 24-bit converter resolution, which is essential for applications that require extremely accurate measurement of force, pressure, or weight. The module is fully integrated into the modular X20 system, making it easy to use with B&R’s extensive range of CPUs and bus modules.

Product Parameters

The key technical specifications for the B&R X20AI1744 module include:

• Input: 1 full-bridge strain gauge input
• Resolution: 24-bit converter resolution
• Strain Gauge Factor: Configurable from 2 to 256 mV/V via software
• Data Output Rate: Configurable from 0.1 Hz to 7.5 kHz
• Connections: Supports both 4-wire and 6-wire strain gauge connections
• Filter: Features a configurable filter level and a 5 kHz cutoff 3rd order input filter
• Operating Temperature: -25°C to 60°C (horizontal mounting)
• Electrical Isolation: Bus is isolated from the analog input and strain gauge supply voltage.
• Required Accessories: Requires a separate X20 bus module (e.g., X20BM11) and a terminal block (e.g., X20TB12).

Product Advantages

Using the B&R X20AI1744 module offers several significant benefits:

• Extreme Precision: The 24-bit resolution provides exceptionally accurate and reliable measurement data, crucial for critical applications like weighing systems.
• Flexibility: The module supports different connection types (4- and 6-wire) and a wide range of configurable settings, allowing it to adapt to various application needs.
• Seamless Integration: As part of the X20 system, it integrates effortlessly with B&R’s controllers and software, simplifying both hardware setup and software configuration.
• Robustness: The module is built for harsh industrial environments, with a wide operating temperature range and robust design.
• High Performance: The configurable data output rate up to 7.5 kHz ensures fast and responsive data acquisition for dynamic applications.

Applications

The X20AI1744 is ideal for any application where precise force or weight measurement is required. Common applications include:

• Weighing and Dosing Systems: Used in process control to accurately measure and dispense materials.
• Packaging Machinery: For quality control, ensuring correct package weight and content.
• Force Measurement: In test benches and quality assurance systems to measure force and torque.
• Material Handling: For monitoring and controlling loads on conveyors or robotic systems.
• Hydraulic and Pneumatic Systems: To measure pressure and load in industrial cylinders and actuators.

Precautions

To ensure safe and optimal performance when using the X20AI1744 module, please adhere to the following precautions:

• Correct Wiring: Use the proper shielded twisted-pair cables for the strain gauge to prevent electrical interference and ensure signal integrity. Keep cable lengths as short as possible.
• Proper Mounting: Mount the module according to B&R’s instructions, paying attention to the specified horizontal or vertical mounting orientations and the corresponding temperature limits.
• Bus and Terminal Block: Remember that the module requires a separate bus module and terminal block, which must be ordered separately.
• Power Supply: Connect the module to a stable and correctly specified power supply to prevent damage and ensure reliable operation.
• Consult Documentation: Always refer to the official B&R user manual for detailed information on installation, configuration, and troubleshooting.
