X20BB80 B&R Coated modules

Description

X20BB80 B&R Coated modules

Product Dimensions：

Product Description

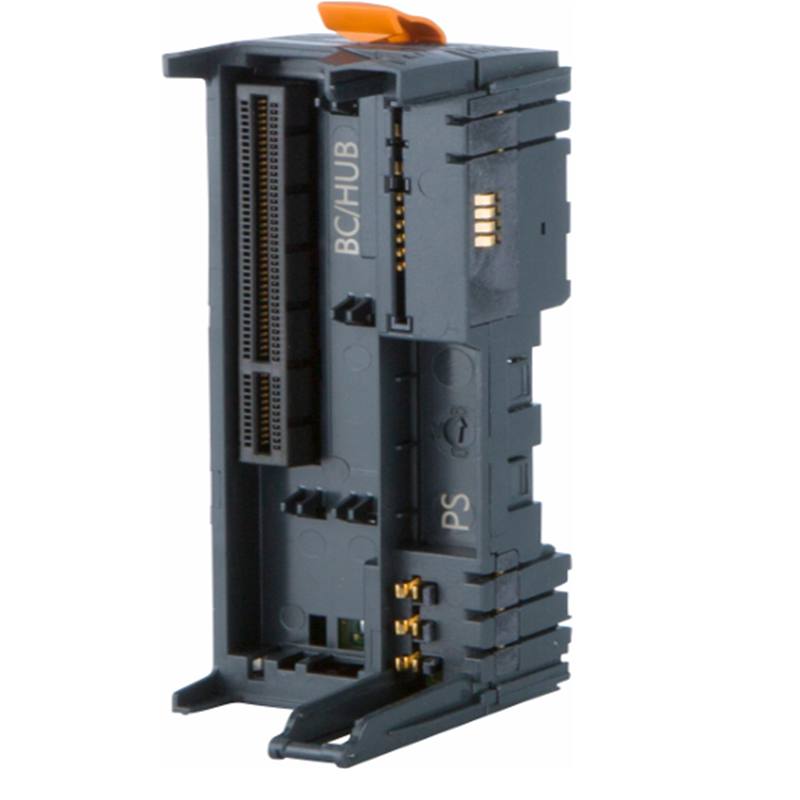

The B&R X20BB80 is a power supply module for the X20 System. It’s a key component in any X20-based control system, providing the necessary power to the I/O modules and the communication bus. This module is designed to connect to an external 24V DC power source and distribute it to the backplane, ensuring all connected modules operate reliably.

This power supply module is a terminal block with an integrated DC/DC converter. It’s designed to be inserted into the X20 system rack and acts as the primary power source for the entire segment. It receives 24V DC from an external power supply and distributes it to the internal bus and the connected I/O modules. The “BB” in the part number indicates it is a bus module and a power supply. It also includes status LEDs that provide visual feedback on the power status of the module and the bus.

Product Parameters

• Series: X20 System
• Product Type: Power Supply Module
• Input Voltage: 24 V DC
• Power Supply for:
  • Bus: Supplies power to the X20 bus system.
  • I/O Modules: Provides power for the digital and analog I/O modules.
• Output Current: 2.5 A (for the module bus)
• Status Indicators: Integrated LEDs for power and bus status.
• Dimensions: Standard X20 module form factor.
• Connections: Removable terminal block for easy wiring.

Product Advantages

• Modularity and Flexibility: As part of the X20 system, it allows you to build a scalable and modular control system. You can easily add or remove modules as your application needs change.
• Simplified Wiring: It eliminates the need to individually power each I/O module. The X20BB80 provides all the power for the segment through a single connection, which simplifies the wiring in the control cabinet.
• Reliable Power Distribution: The module ensures a stable and reliable power supply to all connected I/O modules and the communication bus, which is critical for the reliable operation of the entire system.
• Easy Diagnostics: The integrated status LEDs provide a quick and easy way to check the power status, which helps with troubleshooting and maintenance.

Important Notes

• External Power Supply: This module is not a power supply itself; it is a power distributor. It requires a stable, external 24V DC power supply to operate.
• System Sizing: The 2.5 A output current is a key parameter. You must ensure that the total power consumption of all connected I/O modules does not exceed this limit to avoid system faults.
• Proper Installation: The module must be correctly installed on the X20 backplane and secured. The removable terminal block should be wired correctly to the external power source.

Product Applications

The X20BB80 is a foundational component used in a wide range of industrial automation applications.

• Machine Control: Used in the control panels of various machines to power the I/O modules that control sensors, actuators, and other components.
• Process Automation: In systems for controlling processes in industries like food and beverage, pharmaceuticals, and chemicals.
• Building Automation: Provides power to the I/O modules that monitor and control HVAC systems, lighting, and security.
• Distributed I/O: It’s an essential part of any distributed I/O system, providing a local power source for I/O modules located close to the machines or processes they control.
