X20BM11 B&R Coated modules

Description

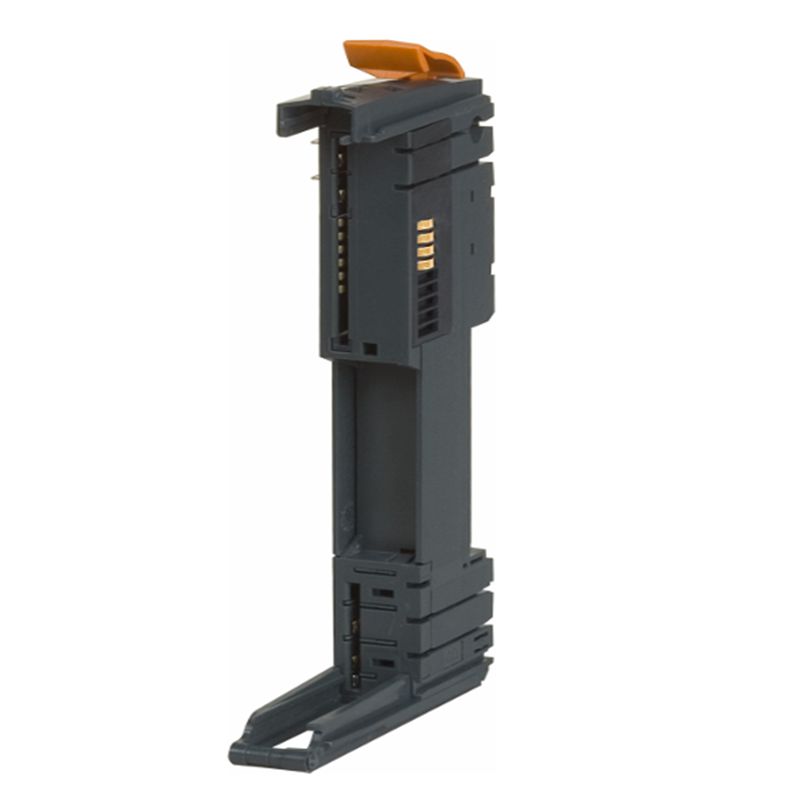

X20BM11 B&R Coated modules

Product Dimensions：

Product Description

The B&R X20BM11 is a foundational component of the B&R X20 I/O system, serving as a bus module. It is not an electronic module with its own functionality, but rather the essential interface that allows the electronic X20 I/O modules to connect to the X2X Link backplane. This module provides both the electrical and mechanical connection to the bus base and is crucial for creating a modular, expandable, and reliable I/O system. The X20BM11, in particular, is a standard bus module for all X20 electronic modules, ensuring seamless integration and communication.

Product Parameters

The X20BM11 is defined by its role as a key connection piece. Its technical specifications are as follows:

• Function: Standard bus module for all B&R X20 electronic modules
• Connection Type: Connects electronic modules to the X2X Link backplane
• Mounting: Snaps onto a B&R X20 bus base (e.g., X20BB80) on a DIN rail
• Power: Transmits both I/O power and module power
• Operating Temperature: -25°C to 60°C (horizontal mounting)
• Protection: IP20

Product Advantages

The B&R X20BM11 offers significant advantages in industrial automation:

• Modularity and Flexibility: As the backbone for the X20 system, it enables a highly modular and flexible I/O solution. You can easily add, remove, or replace modules without rewiring the entire system.
• Simplified Assembly: The snap-on design allows for quick, tool-free installation of modules onto the bus base, which drastically reduces setup time and effort.
• Reliable Connection: The secure mechanical and electrical connection ensures reliable data and power transmission, crucial for consistent performance in industrial environments.
• Universal Compatibility: The X20BM11 is a universal bus module for all B&R X20 I/O modules, simplifying inventory and system design.
• High-Density Design: It facilitates a compact and space-saving I/O configuration, allowing you to fit more modules into a smaller control cabinet.

Applications

The X20BM11 is a core component used in any application that utilizes the B&R X20 I/O system. Its primary role is to provide the infrastructure for the I/O station. Common applications include:

• Machine Automation: Serving as the foundation for connecting sensors, actuators, and other I/O devices in manufacturing equipment.
• Distributed Control Systems: Used to build decentralized I/O stations in large-scale automation projects.
• Robotics: Providing a modular and reliable connection for I/O signals in robotic cells and on robotic arms.
• Control Panels: Enabling a clean and organized layout for I/O modules in control cabinets.

Precautions

To ensure the reliable operation of your system with the X20BM11, please keep the following in mind:

• Correct Bus Base: The X20BM11 must be mounted on a compatible B&R X20 bus base (e.g., X20BB80).
• Proper Installation: Ensure the bus module is securely snapped into the bus base and that all mechanical locking mechanisms are engaged.
• Power Supply: The bus base and the connected modules require a stable 24 VDC power supply to function correctly.
• Environmental Conditions: While the module is robust, it’s important to operate it within the specified temperature and humidity ranges to prevent component failure.
• Consult Documentation: Always refer to the official B&R user manuals for detailed instructions on installation, wiring, and safety.
