X20BR9300 B&R X20 Series Bus Receiver Module

Description

X20BR9300 B&R X20 Series Bus Receiver Module

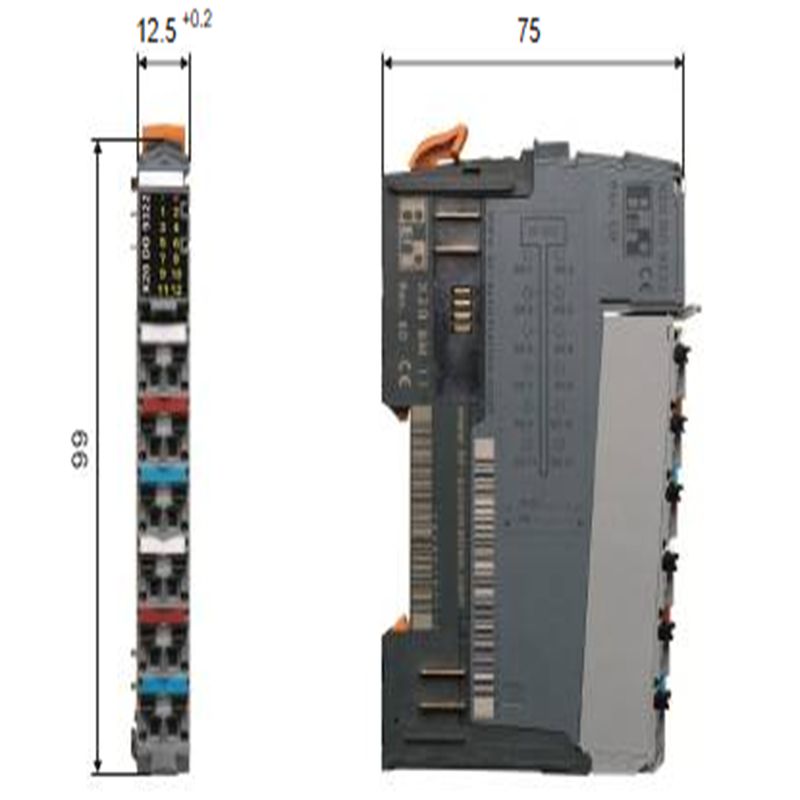

Product Dimensions：

Product Description

The B&R X20BR9300 is a specialized bus receiver module within the B&R X20 I/O system. Its primary function is to connect an X20 I/O station to a remote X2X Link bus. Essentially, it acts as a termination point for the X2X Link, allowing for the creation of decentralized I/O stations in a larger automation network. The module also serves as a power supply feed for both the X2X Link itself and the internal I/O modules, ensuring that the remote station has a reliable power source. Its design prioritizes robust performance and flexible system architecture.

Product Parameters

The technical specifications of the X20BR9300 include:

• Function: X2X Link bus receiver, and a power supply feed for the X2X Link and internal I/O.
• Input Voltage: 24 VDC.
• Power Consumption: The module consumes a small amount of power (around 0.6 W) for its internal electronics.
• Fuses: It has an integrated, non-replaceable fuse for protection.
• Permissible Contact Load: 10 A.
• Electrical Isolation: Features electrical isolation between the X2X Link supply and its power supply.
• Operating Temperature: -25°C to 60°C (with horizontal mounting).
• Status Indicators: Includes LED indicators for X2X bus function, overload, operating status, and module status.

Product Advantages

The B&R X20BR9300 offers several key advantages for industrial automation:

• Flexible System Design: It allows you to create distributed I/O stations far from the main controller, which is great for large machines or plants with spread-out components.
• Power Redundancy: The module supports redundant power supply configurations, which is crucial for increasing system reliability and minimizing downtime.
• Simplified Wiring: By combining the bus termination with the power supply, it streamlines the wiring of remote I/O stations.
• Robust and Reliable: Built to B&R’s high industrial standards, it’s designed to operate reliably in a wide range of environments.
• Diagnostics: The integrated LED status indicators provide a quick and easy way to check the module’s operating status and diagnose potential issues.

Applications

The X20BR9300 is an essential component in any system that requires decentralized I/O on an X2X Link network. Typical applications include:

• Large-Scale Machinery: For connecting I/O devices that are far from the main controller, such as sensors on a conveyor belt or actuators on a long assembly line.
• Distributed Control Systems: It allows for the modular and scalable expansion of I/O points across a facility.
• Robotic Cells: Provides a reliable and centralized point for I/O and power within a robotic work cell.
• Process Control: Used to connect field devices in different parts of a plant, providing a robust communication and power backbone.

Precautions

To ensure the safe and reliable operation of the B&R X20BR9300, it’s important to follow these guidelines:

• Proper Power Supply: Connect the module to a stable and correctly specified 24 VDC power supply.
• Bus Base: The module must be installed on a compatible X20 bus base. The product listing often notes that you need to order a separate terminal block and supply bus module.
• Mounting: Pay close attention to the specified operating temperature range for both horizontal and vertical mounting.
• Documentation: Always refer to the official B&R user manual for detailed installation, wiring diagrams, and safety information.
