X20CP1485 B&R high-performance/compact controller module

Description

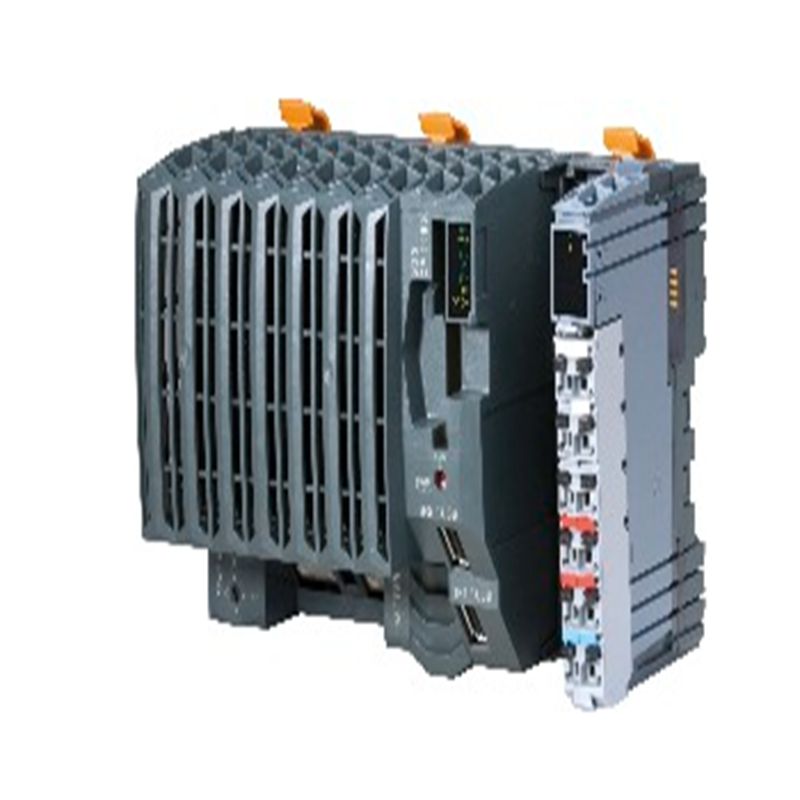

X20CP1485 B&R high-performance/compact controller module

Product Dimensions：

Product Description

The B&R X20CP1485 is a high-performance, compact controller module and a powerful CPU for the B&R X20 system. It is designed to act as a complete, independent control unit, offering a powerful processor and a range of integrated interfaces. The module is engineered for demanding automation tasks that require high-speed processing and real-time communication, such as motion control and complex machine automation. Its compact, fan-free design allows for seamless integration into the modular X20 I/O system, creating a scalable and space-saving control solution.

Product Parameters

The key technical specifications for the B&R X20CP1485 include:

• CPU: Intel Celeron 400 Performance with an additional I/O processor.
• Memory: Typically includes a specified amount of DRAM and uses a CompactFlash card for removable application memory.
• Interfaces:
  • POWERLINK: 2x RJ45 with an integrated 2-port hub for real-time communication.
  • Ethernet: 1x RJ45 10/100 Mbit/s.
  • USB: 1x USB 2.0.
• Operating System: B&R Automation Runtime.
• Mounting: Designed to be mounted on a separate X20 bus base (e.g., X20BB81 or X20BB82), allowing for easy expansion with X20 I/O modules.
• Cooling: Fan-free design.
• Operating Temperature: 0 to 55°C (horizontal mounting) and 0 to 50°C (vertical mounting).

Product Advantages

The B&R X20CP1485 offers several significant benefits for industrial automation:

• High Performance: The powerful Intel Celeron processor and additional I/O processor enable the controller to handle complex and time-critical control algorithms, including multi-axis motion and robotics.
• Integrated Real-Time Communication: With built-in POWERLINK and a 2-port hub, it provides high-speed, deterministic communication and simplifies network wiring, which is critical for synchronized motion control.
• Compact and Modular Design: As part of the X20 system, it combines a controller and I/O into a single, space-efficient unit. This modularity allows you to easily scale your system by adding I/O modules as needed.
• Fan-Free Operation: The fan-free design makes the unit maintenance-free and suitable for dusty or harsh industrial environments where fans might be a point of failure.
• Simplified Engineering: The controller is programmed using B&R’s Automation Studio, a powerful software environment that streamlines development, configuration, and diagnostics.

Applications

The X20CP1485 is a versatile controller suitable for a wide range of industrial applications, including:

• Machine Control: Serving as the central control unit for complex machinery, such as packaging lines, printing presses, and CNC machines.
• Robotics: Controlling robotic arms and end-of-arm tooling in high-speed, precision-oriented applications.
• Process Automation: Managing and controlling small-to-medium-scale processes in industries like food and beverage, pharmaceuticals, and chemicals.
• Test and Measurement: Used in automated test benches for high-precision data acquisition and control of test sequences.

Precautions

To ensure the safe and reliable operation of the B&R X20CP1485, please follow these important guidelines:

• Bus Base: This module requires a separate bus base, such as the X20BB81 or X20BB82, for mounting and electrical connection. This must be ordered separately.
• Power Supply: Connect the controller to a stable and correctly specified 24 VDC power supply.
• Environmental Conditions: Operate the module within its specified temperature range and ensure adequate ventilation to prevent overheating, especially in high-density installations.
• Firmware and Software: Always use the latest firmware and a compatible version of B&R’s Automation Studio to ensure full functionality and security.
• Documentation: For detailed installation, programming, and safety information, always refer to the official B&R user manuals and datasheets.
