X20CP1485 B&R Programmable controller

Description

X20CP1485 B&R Programmable controller

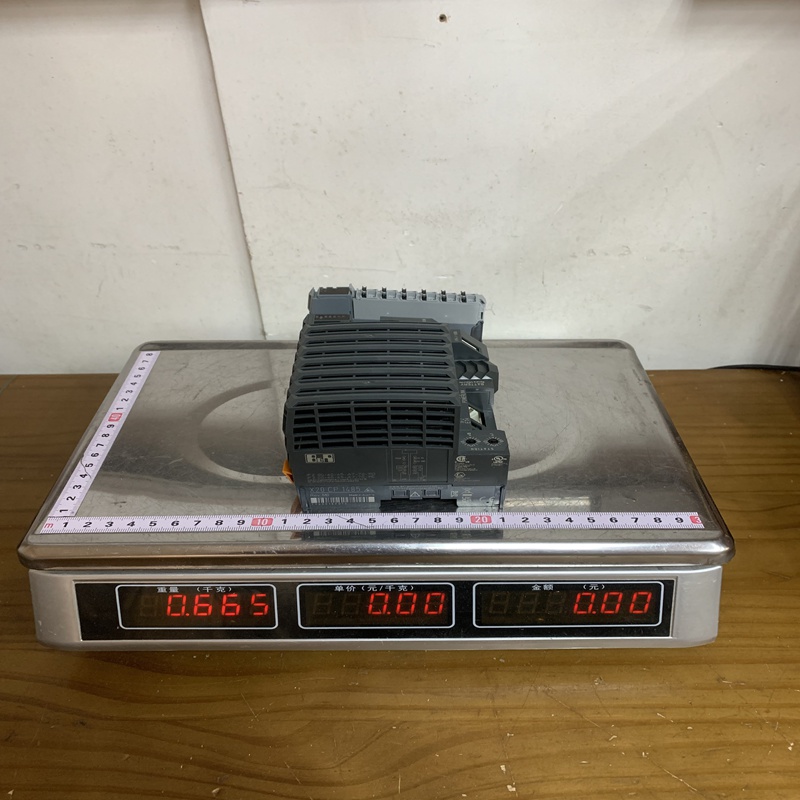

Product Dimensions：

Product Description

The X20CP1485 is a powerful PLC controller powered by an Intel Celeron processor. It is designed to act as the “brain” of a machine, capable of managing complex logic, high-speed I/O, and coordinated motion control. Like other X20 CPUs, it features a modular design that allows it to be combined with a vast array of X20 I/O modules and interface cards, making it highly adaptable to specific machine requirements.

Product Parameters

The X20CP1485 offers a significant step up in memory and speed compared to the base models:

Product Advantages

• Balanced Performance: The 650 MHz processor provides enough “horsepower” for medium-to-large projects involving multiple axes of motion and extensive data processing.

• Large Memory Buffer: With 128 MB of RAM, it can handle more complex HMI applications and larger data arrays than the 1484 series.

• Native POWERLINK: Built-in POWERLINK ensures hard real-time synchronization (jitter $< 1$ µs) for precision drives and high-speed I/O.

• Maintenance Friendly: The module can be replaced without disconnecting any field wiring, significantly reducing downtime during repairs.

• Future-Proofing: Fully compatible with OPC UA, allowing for easy integration into cloud-based “Smart Factory” architectures.

Key Considerations & Precautions

• CompactFlash Requirement: You must use an industrial-grade B&R CompactFlash card. Using a standard consumer-grade card may lead to data corruption or system crashes due to high read/write cycles.

• Battery Maintenance: The internal battery buffers the SRAM (retentive data). It should be checked periodically; if the battery dies, retain variables will be lost during a power cycle.

• Heat Management: Although it is fanless, the CP1485 generates more heat than lower-end models. Ensure vertical airflow in the control cabinet is not obstructed.

• I/O Power Limits: If the attached X20 I/O modules exceed the 7W power limit of the integrated supply, an additional X20PS power supply module must be added to the bus.

Typical Applications

• Motion Control Systems: Synchronizing 5 to 10 servo axes for labeling, filling, or winding machines.

• Process Automation: Managing PID loops and analog data for chemical or food processing plants.

• Standard Industrial Machinery: Serving as the main controller for textile machines, printing presses, and wood-processing equipment.

• Gateway Functions: Operating as a central hub that translates data between different fieldbuses (e.g., converting CANopen or Modbus data to POWERLINK).
