X20CP1486 B&R Power module

Description

X20CP1486 B&R Power module

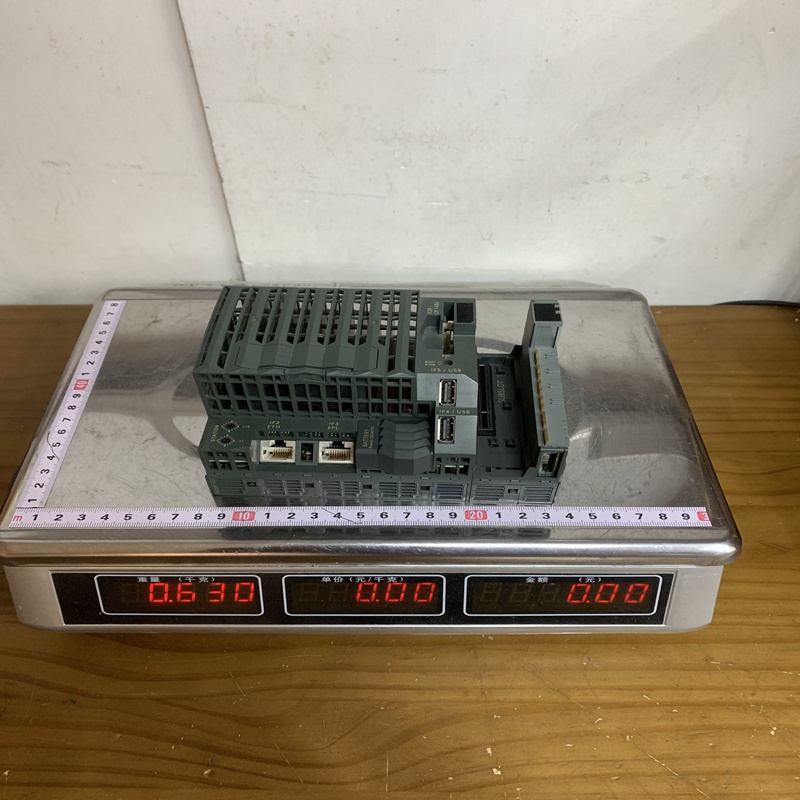

Product Dimensions：

Product Description

The X20CP1486 is a powerful PLC (Programmable Logic Controller) that belongs to the X20 family. It combines the performance of an Intel Atom processor with the modularity of the X20 I/O system. This CPU is designed to handle demanding tasks such as high-speed motion control, complex mathematical calculations, and extensive communication networking, all while maintaining a slim form factor.

Product Parameters

Below are the key specifications for the X20CP1486:

Product Advantages

• High Performance: The Intel Atom processor allows it to manage complex logic and motion control simultaneously without latency.

• Modular Design: Its “three-part” construction (terminal block, electronic module, and bus module) allows for easy maintenance—you can swap the electronics without disconnecting the wiring.

• Communication King: With built-in POWERLINK, Ethernet, and USB, it integrates easily into modern Industry 4.0 environments and supports OPC UA.

• Fanless Operation: Despite its power, it operates without a fan, reducing mechanical wear and increasing reliability in dusty environments.

• Space Saving: Offers high density in a small footprint, which is critical for reducing control cabinet size.

Key Considerations & Precautions

• CompactFlash Card: The CPU does not come with internal application storage; you must purchase a compatible B&R CompactFlash card to store the runtime and project.

• Cooling: While fanless, ensure there is sufficient clearance (usually 30mm-50mm) above and below the module to allow for natural convection.

• Firmware Compatibility: Ensure your Automation Studio software version supports the hardware revision of the CPU to avoid configuration errors.

• Power Supply: Use a stabilized 24VDC power supply to prevent damage from voltage spikes.

Typical Applications

The X20CP1486 is versatile and can be found in:

• Packaging Machinery: Coordinating high-speed axes and vision systems.

• Plastic Processing: Controlling injection molding machines where precise temperature and pressure control are required.

• Renewable Energy: Managing wind turbine pitch control and grid synchronization.

• Automotive Production: Acting as a central controller for robotic assembly lines.
