X20CP1584 B&R compact controller CPU module

Description

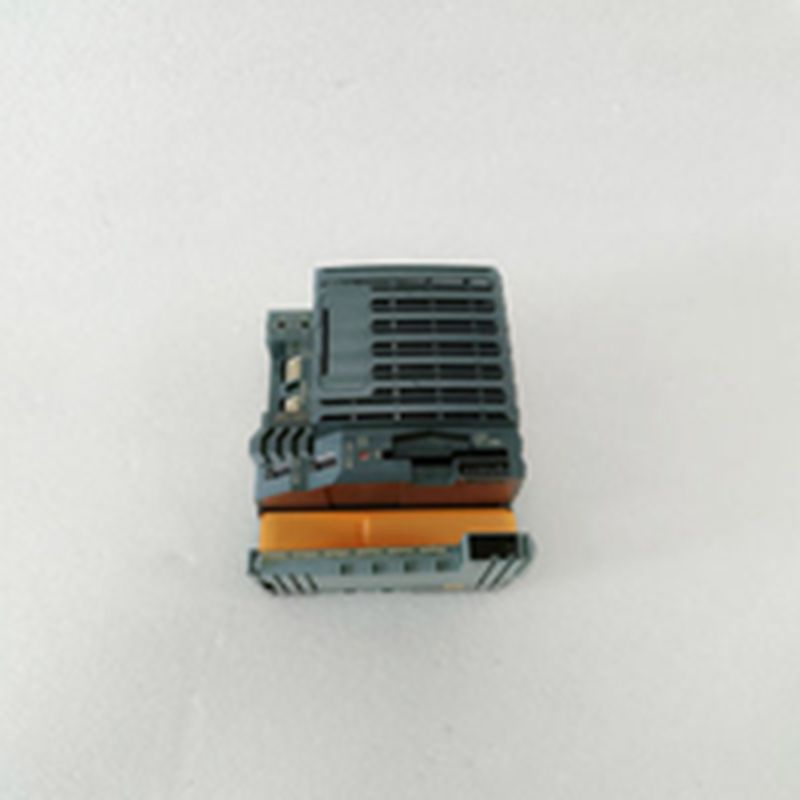

X20CP1584 B&R compact controller CPU module

Product Dimensions：

Product Description

The B&R X20CP1584 is a high-performance, compact controller module and a powerful CPU for the B&R X20 system. It is designed to act as a complete, independent control unit, offering a powerful processor and a range of integrated interfaces. The module is engineered for demanding automation tasks that require high-speed processing and real-time communication, such as motion control and complex machine automation. Its compact, fan-free design allows for seamless integration into the modular X20 I/O system, creating a scalable and space-saving control solution.

Product Parameters

The key technical specifications for the B&R X20CP1584 include:

• CPU: Intel Atom E620T 600 MHz processor with an additional I/O processor.
• Memory: 256 MB of DDR2 SDRAM and 1 MB of SRAM for user data.
• Storage: A CompactFlash card slot for removable application memory.
• Interfaces:
  • POWERLINK: 1x RJ45 for real-time communication.
  • Ethernet: 1x RJ45 10/100/1000 Mbit/s.
  • USB: 2x USB 2.0 ports.
  • RS232: 1x RS232 interface.
  • X2X Link: The module serves as a bus controller for the X2X Link, connecting to I/O modules.
• Operating System: B&R Automation Runtime.
• Power Supply: 24 VDC.
• Mounting: Designed to be mounted on a separate X20 bus base (e.g., X20BB80), allowing for easy expansion with X20 I/O modules.
• Cooling: Fan-free, passive cooling.

Product Advantages

The B&R X20CP1584 offers several significant benefits for industrial automation:

• High Performance: The powerful Intel Atom processor and a dedicated I/O processor enable the controller to handle complex and time-critical control algorithms, including multi-axis motion and robotics.
• Integrated Real-Time Communication: With built-in POWERLINK, it provides high-speed, deterministic communication, which is crucial for synchronized motion control and distributed systems.
• Compact and Modular Design: As part of the X20 system, it combines a controller and I/O into a single, space-efficient unit. This modularity allows you to easily scale your system by adding I/O modules as needed.
• Fan-Free Operation: The fan-free design makes the unit maintenance-free and suitable for dusty or harsh industrial environments where fans might be a point of failure.
• Simplified Engineering: The controller is programmed using B&R’s Automation Studio, a powerful and intuitive software environment that streamlines development, configuration, and diagnostics.
• ATEX Compliant: This module is ATEX Zone 2 certified, making it suitable for use in environments with potential explosion hazards.

Applications

The X20CP1584 is a versatile controller suitable for a wide range of industrial applications, including:

• Machine Control: Serving as the central control unit for complex machinery, such as packaging lines, printing presses, and CNC machines.
• Robotics: Controlling robotic arms and end-of-arm tooling in high-speed, precision-oriented applications.
• Process Automation: Managing and controlling small-to-medium-scale processes in industries like food and beverage, pharmaceuticals, and chemicals.
• Test and Measurement: Used in automated test benches for high-precision data acquisition and control of test sequences.

Precautions

To ensure the safe and reliable operation of the B&R X20CP1584, please follow these important guidelines:

• Bus Base: This module requires a separate bus base, such as the X20BB80, for mounting and electrical connection. This must be ordered separately.
• Power Supply: Connect the controller to a stable and correctly specified 24 VDC power supply. The module has reverse polarity protection.
• Environmental Conditions: Operate the module within its specified temperature range (-25°C to 60°C for horizontal mounting) and ensure adequate ventilation to prevent overheating, especially in high-density installations.
• Firmware and Software: Always use the latest firmware and a compatible version of B&R’s Automation Studio to ensure full functionality and security.
• Documentation: For detailed installation, programming, and safety information, always refer to the official B&R user manuals and datasheets.
