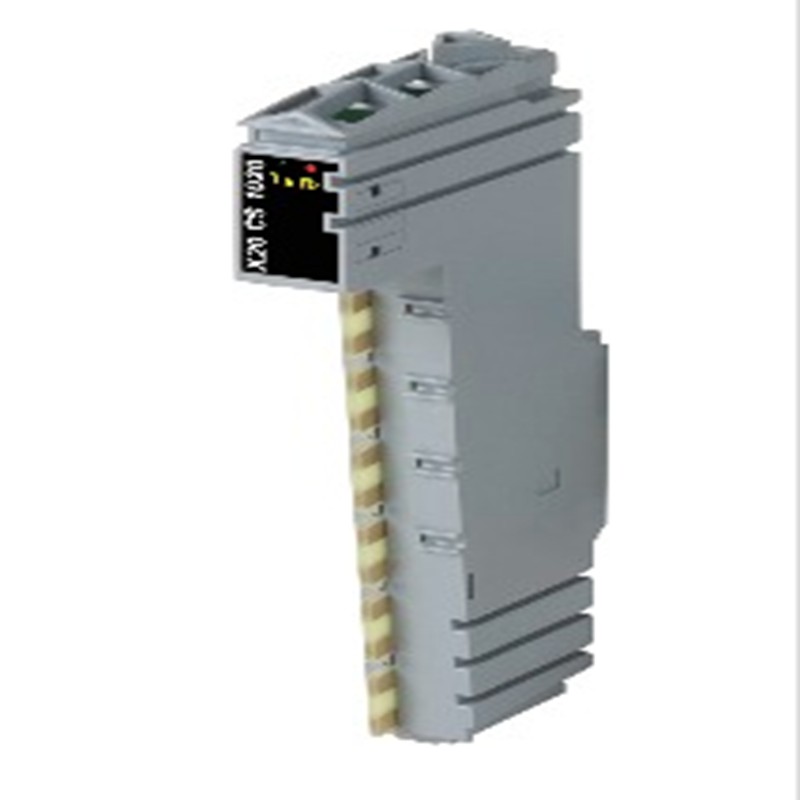

X20CS1020 B&R Communication Interface Module

Description

X20CS1020 B&R Communication Interface Module

Product Dimensions：

Product Description

The B&R X20CS1020 is a communication interface module from the modular B&R X20 I/O system. Its purpose is to provide an RS232 interface, allowing B&R controllers to communicate with various external devices that use this standard serial protocol. This module is essential for connecting complex devices, such as barcode scanners, printers, or legacy systems, to your modern automation architecture. As with all X20 modules, it’s designed to be easily integrated into a system, offering a flexible and scalable solution.

Product Parameters

The key technical specifications for the B&R X20CS1020 include:

• Interface: 1x RS232 interface.
• Transfer Rate: Maximum of 115.2 kbit/s.
• Protocol: Supports serial communication via RS232.
• Mounting: Designed to be plugged into a separate X20 bus module and terminal block.
• Status Indicators: Features LED indicators for data transfer, operating status, and module status, which are useful for diagnostics.
• Operating Temperature: -25°C to 60°C (with horizontal mounting).
• Diagnostics: Supports module run/error diagnostics via both the status LED and software.
• ATEX Compliance: Certified for use in ATEX Zone 2 environments.

Product Advantages

The B&R X20CS1020 offers several benefits for industrial automation:

• Seamless Integration: It’s a standard X20 electronics module, meaning it integrates effortlessly with B&R’s extensive range of controllers and I/O components.
• Wide Compatibility: The RS232 interface allows you to connect a broad range of devices, extending the functionality of your automation system.
• Diagnostics: The built-in LEDs provide quick and easy status checks, simplifying troubleshooting and maintenance.
• Flexibility: As part of the modular X20 system, it can be placed anywhere on a remote backplane, giving you flexibility in your control cabinet layout.
• Robust Design: With its wide operating temperature range and ATEX compliance, the module is suitable for use in demanding and potentially hazardous industrial environments.

Applications

The X20CS1020 module is ideal for applications where you need to integrate devices with an RS232 interface into your B&R automation system. Common applications include:

• Machine-to-Machine Communication: Connecting controllers to various machines for data exchange.
• Connecting Peripherals: Interfacing with devices like barcode readers, label printers, or scales.
• Integration of Legacy Systems: Allowing older equipment that uses RS232 to be integrated into a modern control network.
• Data Acquisition: Connecting sensors or measuring instruments that use a serial interface.

Precautions

To ensure the safe and reliable operation of the B&R X20CS1020, please follow these guidelines:

• Required Accessories: The module requires a separate terminal block (e.g., X20TB12) and a bus module for proper installation. These must be ordered separately.
• Proper Wiring: Use the correct wiring for your RS232 connection to ensure signal integrity and prevent damage to the module or connected device.
• Environmental Conditions: Operate the module within its specified temperature and humidity ranges.
• Consult Documentation: For detailed wiring diagrams, configuration settings, and safety information, always refer to the official B&R user manuals and datasheets.
