X20PS8002 B&R Power supply module

Description

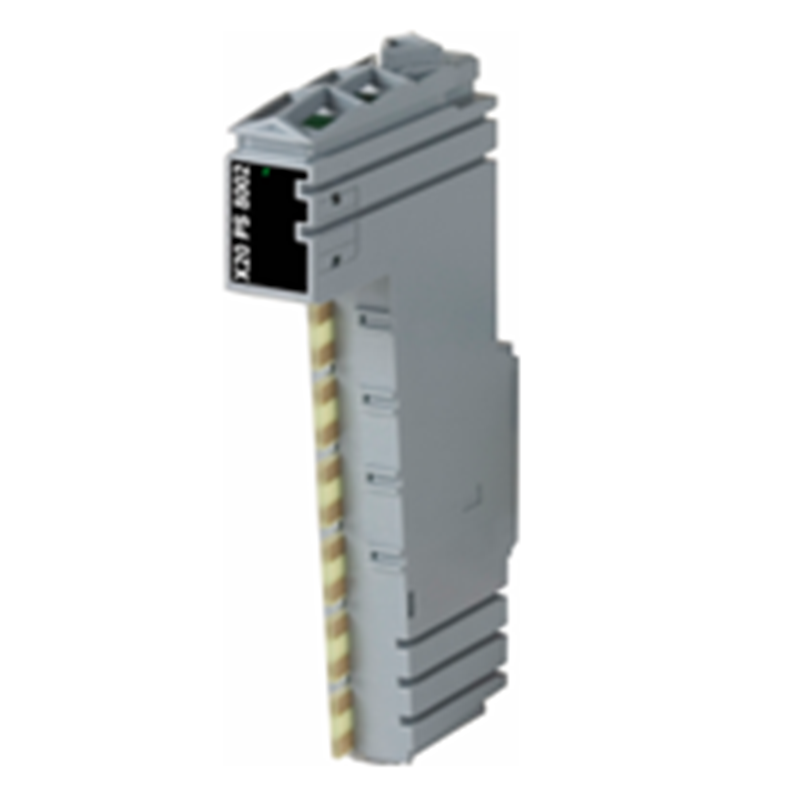

X20PS8002 B&R Power supply module

Product Dimensions：

Product Description

The B&R X20PS8002 is a power supply module for the B&R X20 system, which is a modular and expandable automation platform. This module is specifically designed to provide power to X20 standalone devices.

The X20 system is known for its modular design, where each module consists of three subcomponents: the terminal block, the electronics module, and the bus module. This design allows for pre-wiring without the modules and supports hot-pluggable electronics.

Key specifications for the X20PS8002 module include:

• Function: Power supply module
• Input Voltage: 24 VDC
• Dimensions:
  • Height: 9.9 cm / 3.9 in
  • Width: 1.25 cm / 0.49 in
  • Length: 7.7 cm / 2.9 in
• Weight: 0.4 kg / 0.8 lb
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -40°C to +85°C
• Certifications: ATEX compliant, CE, cULus, cCSAus, DNV GL, Lloyd’s Register (ENV1), KR, ABS, EAC, KC

Advantages

The B&R X20PS8002, as part of the X20 system, offers several advantages for industrial automation applications:

• Modular and Expandable: The X20 system’s design allows you to easily expand your automation setup by adding various I/O modules, which are seamlessly integrated with the CPU.
• Robust and Reliable: The module is built for industrial environments, with a wide operating temperature range and various certifications ensuring its reliability and safety.
• Space-saving: The compact design of the X20 modules allows for a space-saving installation within industrial control cabinets.
• Protective Coating (X20c): Some B&R X20 modules, including coated versions (X20c), offer a protective coating on the electronic components. This coating shields the module from condensation and corrosive gases, enhancing its durability in harsh environments.
• Hot-Pluggable Electronics: This feature allows you to replace or add electronics modules without shutting down the entire system, minimizing downtime and simplifying maintenance.

Precautions

To ensure safe and proper operation of the B&R X20PS8002 module, it’s crucial to follow these general precautions:

• Refer to the User Manual: Always consult the official B&R user manual for the X20 system and the X20PS8002 module. The manual contains detailed safety guidelines, technical specifications, and installation instructions.
• Correct Voltage: Ensure the module is supplied with the correct voltage (24 VDC). Using a different voltage can damage the device and pose a safety risk.
• Environmental Conditions: Operate the module within its specified ambient air temperature range. Do not expose it to conditions outside this range unless the specific module is designed to do so.
• Avoid Unauthorized Repairs: Any attempt to repair the device by unqualified personnel can void the warranty and lead to further damage.
• Third-Party Components: When using hardware or software from other suppliers, make sure to consult their documentation and follow their safety guidelines. Compatibility is not guaranteed unless specified by B&R.

Applications

The B&R X20PS8002 power supply module is a core component of the X20 system, making it suitable for a wide range of industrial automation applications. It’s an essential part of the control solution for various automated tasks in machine and system manufacturing, including:

• Machinery Automation: Used in manufacturing plants to power control systems and automate machinery.
• Process Control: Ideal for systems that require precise control and signal output management.
• Industrial Control Cabinets: Designed to be installed within control cabinets as a power source for standalone X20 devices.
• Smart Home Systems: Can be used in larger smart home or building automation setups that require robust and reliable digital outputs.
• Educational and Training Environments: Suitable for demonstrating automation principles and providing hands-on training with industrial-grade components.
